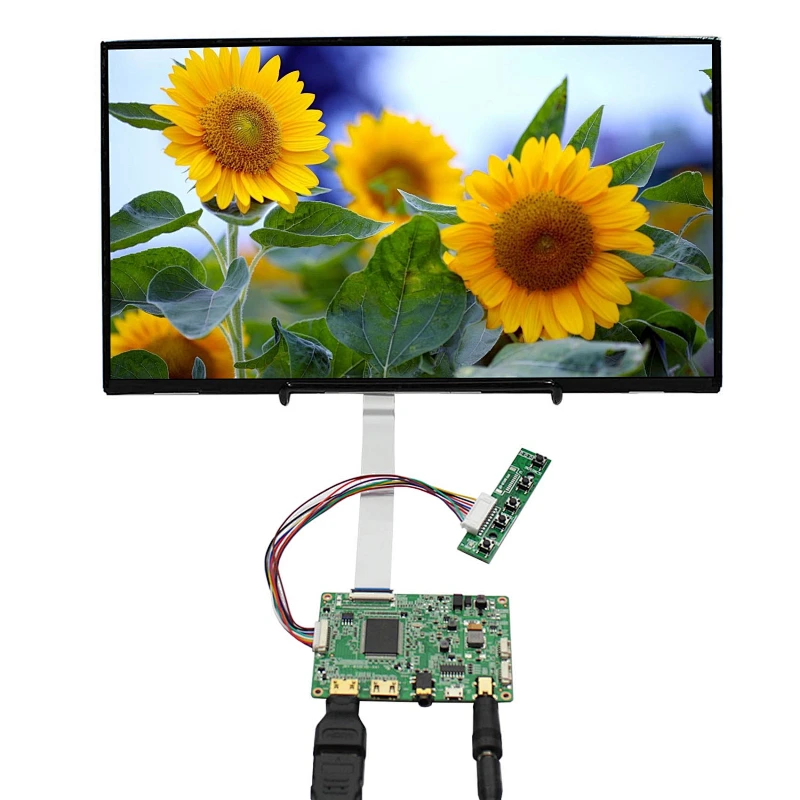

13.3" VS133GF-Z001 1920X1080 30pin EDP LCD Screen with HDMI driver board 30pin to hdmi 1920x1080 edp lcd screen hdmi lcd board 13.3" lcd screen

Model NO.
K002929 VS-RTD2556HM-V1+VS133GF-Z001 1920x1080 LQ133M1JW03
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

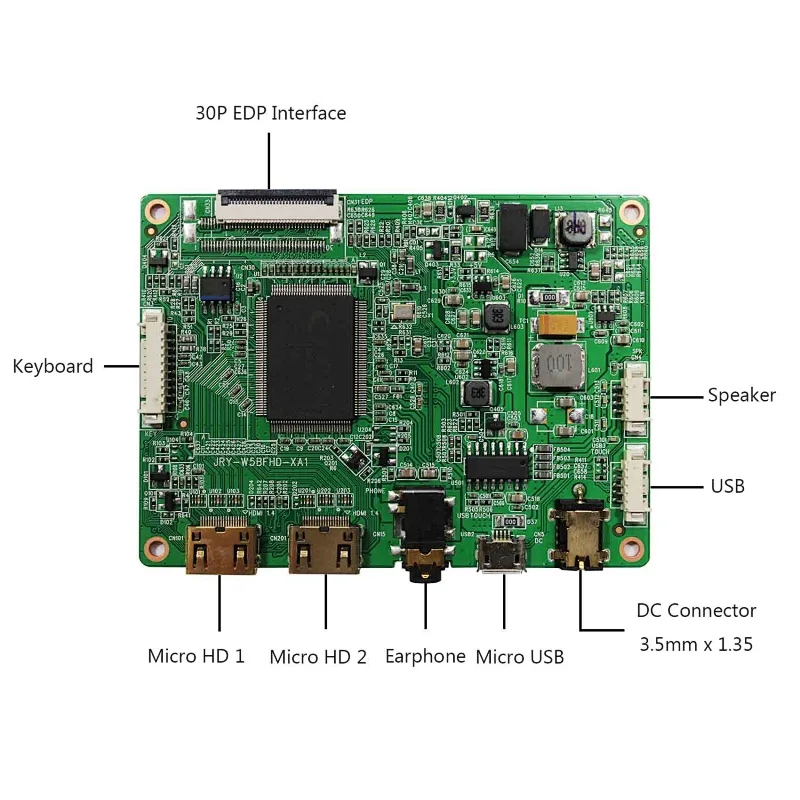

  • LCD Controller Board:

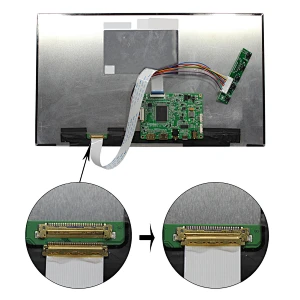

  • HD-MI Board Work for 30Pin EDP LCD Screen

    Input Power Adapter: 12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <0.3W

    Audio Input: 2HD-MI Mini

    Audio Output: Earphone

    OSD: Brightness Contrast VOL+ VOL- Language And So On

    Language: English French German Spanish Italian And So On

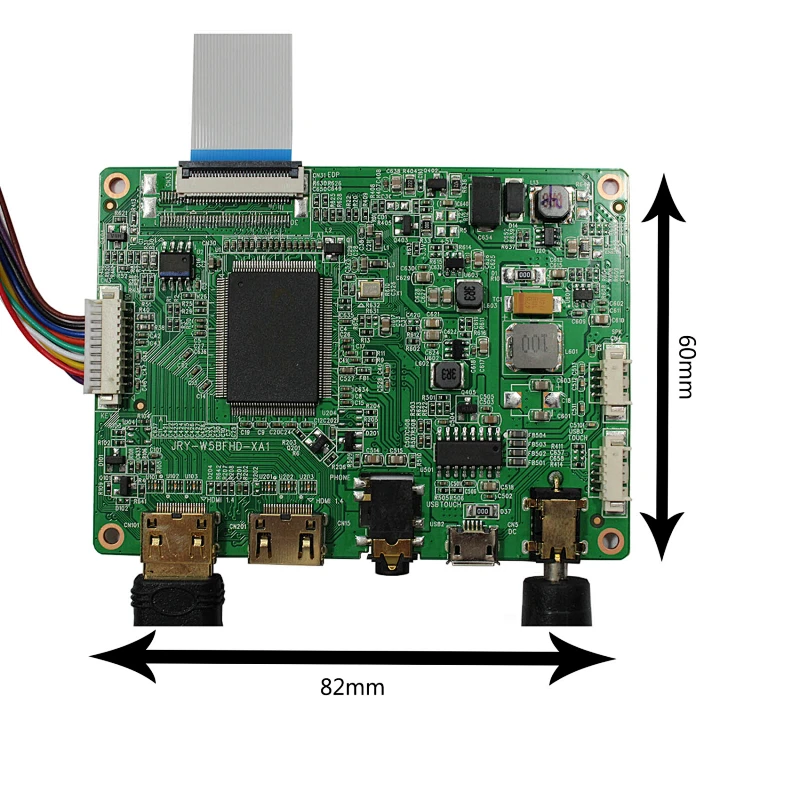

    Board Size: 82mm x 60mm x 5mm

  • 13.3"VS133GF-Z001 1920X1080 LCD Screen:

    Display Mode AAS, Normally Black, Transmissive

    Resolution 1920(RGB)×1080

    Outline Size 305.35×179.36×5mm(H×V×D)

    Display Area 293.7×165.2(H×V)

    Brightness 400 cd/m² (Typ.)

    Contrast Ratio 1000:1 (Typ.) (TM)

    Viewing Angle 88/88/88/88 (Typ.)(CR≥10) [Left / Right / Up / Down]

    Signal Interface eDP (4 Lanes), Connector, 30pins

    Backlight WLED

    Input Voltage 3.3V (Typ.)

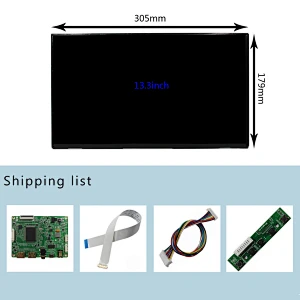

  • Packing list:

    1× 2 mini HD LCD Controller Board VS-JRYW5BFHD-V1

    1× 13.3inch VS133GF-Z001 1920X1080 LCD Screen

    1× Signal Cable

    1× Keyboard With Cable
