HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2

USB Support Video

AV Compatible With PAL And NTSC

Video Input: HDMI VGA AV USB RF

Audio Input: HDMI PC-Audio

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 188mm x 43mm x 17mm

Display Mode  TN, Normally White, Transmissive

Resolution 1600RGB)×900

Outline Size 398.1 ×232.8×6(H×V×D)

Display Area 381.89 × 241.81 (H×V)

Brightness 220 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (2 ch, 6-bit) , Connector , 40 pins

Backlight  LED

Input Voltage  3.3V (Typ.)

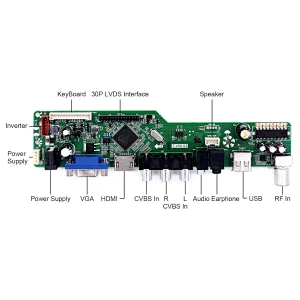

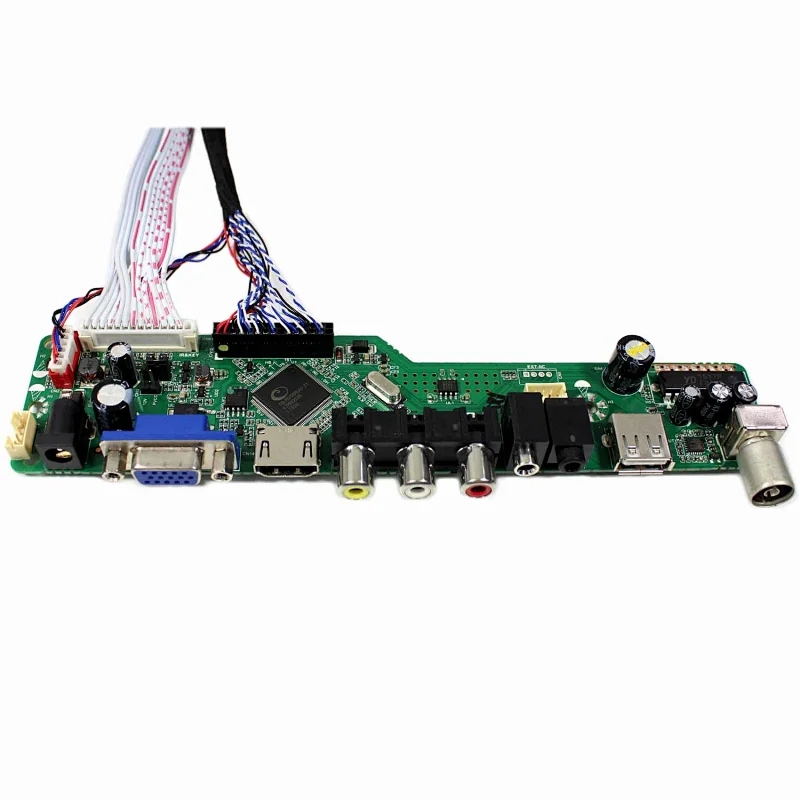

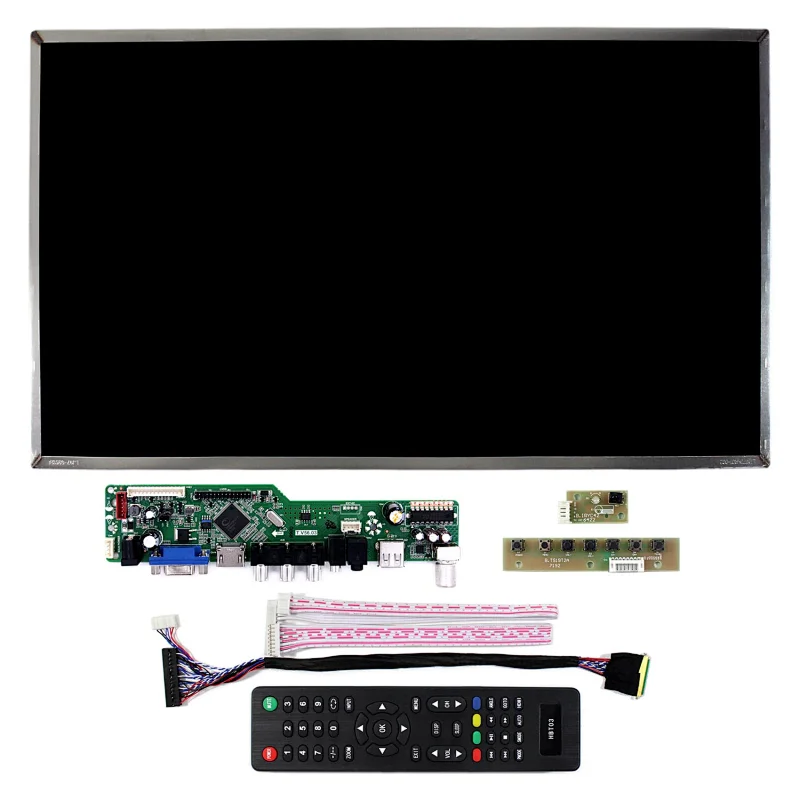

1× HDMI VGA AV USB RF LCD Controller Board T.V56.03

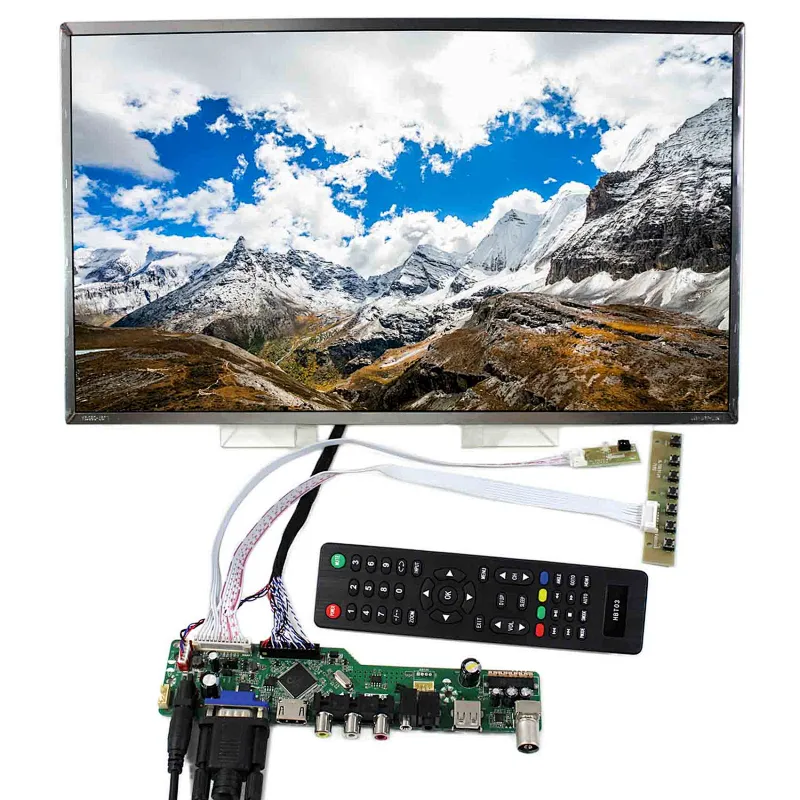

1× 17.3inch 1600X900 LCD Screen (One of LP173WD1 B173RW01 LTN173KT01-A01 N173FGE-L21 N17306-L02 LTN173KT03)

1× LVDS Cable

1× Keyboard With Cable

1× Remote Control (Battery Not included)
