HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)

Photoresistors Input Support Automatic brightness adjustment

External human body induction signal template, automatic startup and shutdown of human body induction

Video Input: HDMI VGA AV1 AV2 USB

HDMI: Support HDMI 1.4

VGA: Support Audio Input

CVBS：2 Channel AV-CVBS

Reversing Function: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 110mm x 66mm x 12mm

Display Mode TN, Normally White, Transmissive

Resolution 1024(RGB)×768   [XGA]

Outline Size 326.5 × 253.5×3 (H×V×D)

Display Area 304.128 × 228.096 (H×V)

Brightness 450 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 80/80/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface TTL (1 ch, 6/8-bit) , FPC , 20 pins

Backlight  WLED

Input Voltage  3.3V (Typ.)

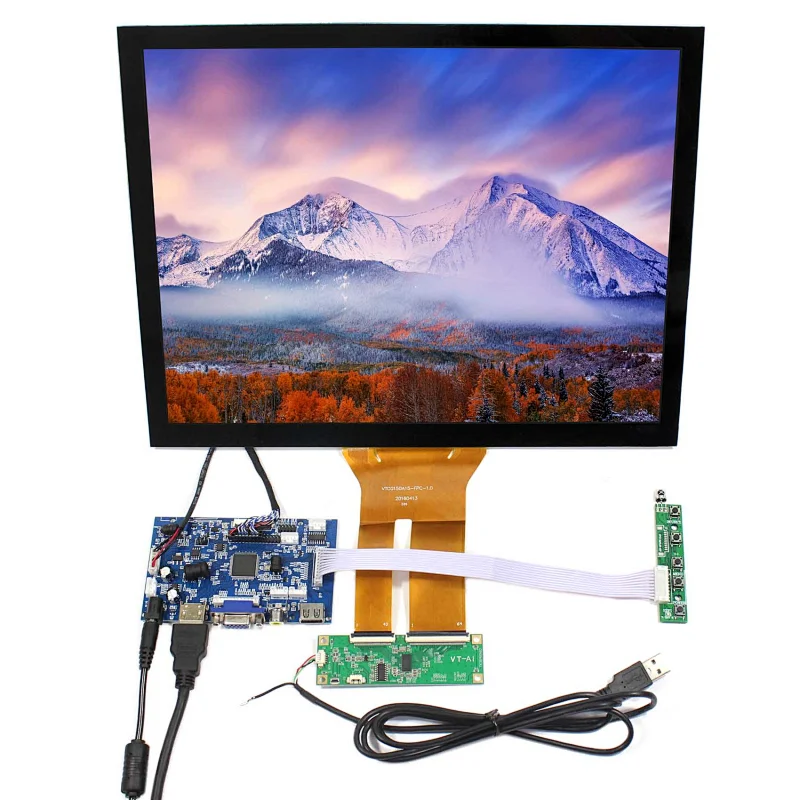

1× HDMI VGA+2AV LCD Controller Board VS-TY2660H-V899

1× 15inch  AC150XA01  1024×768 LCD Screen

1× Backlight Cable

1× LVDS Cable

1× Keyboard With Cable

1× Remote Control(Battery Not included)
