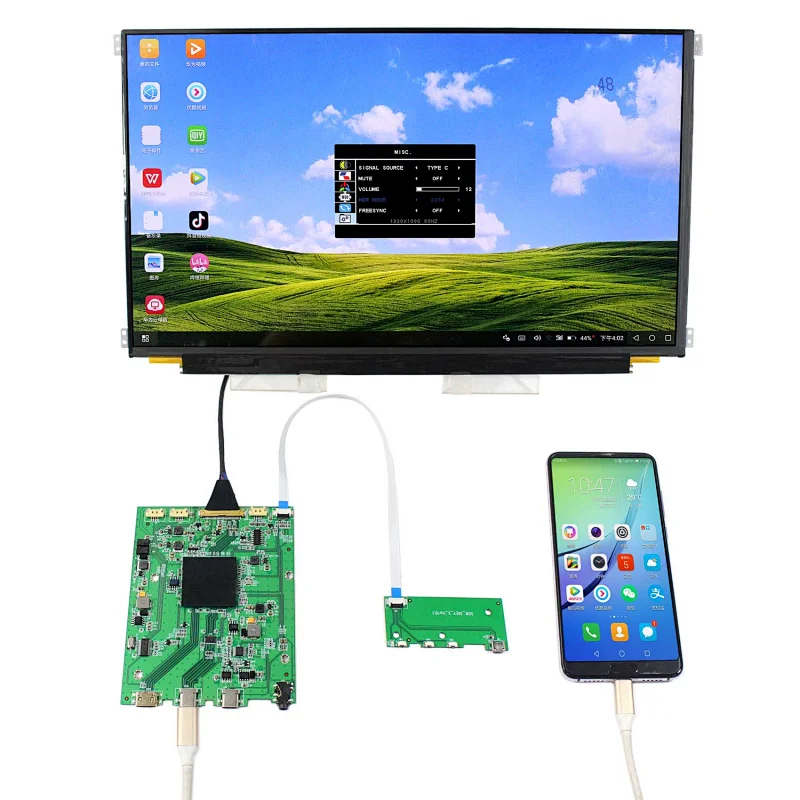

15.6" LCD Screen LQ156D1JW04 with Type C HDMI Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen LQ156D1JW04 15.6" lcd screen Type C hdmi board edp lcd screen

Model NO.
K002178 VS-RT2795T4K-V2+LQ156D1JW04
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

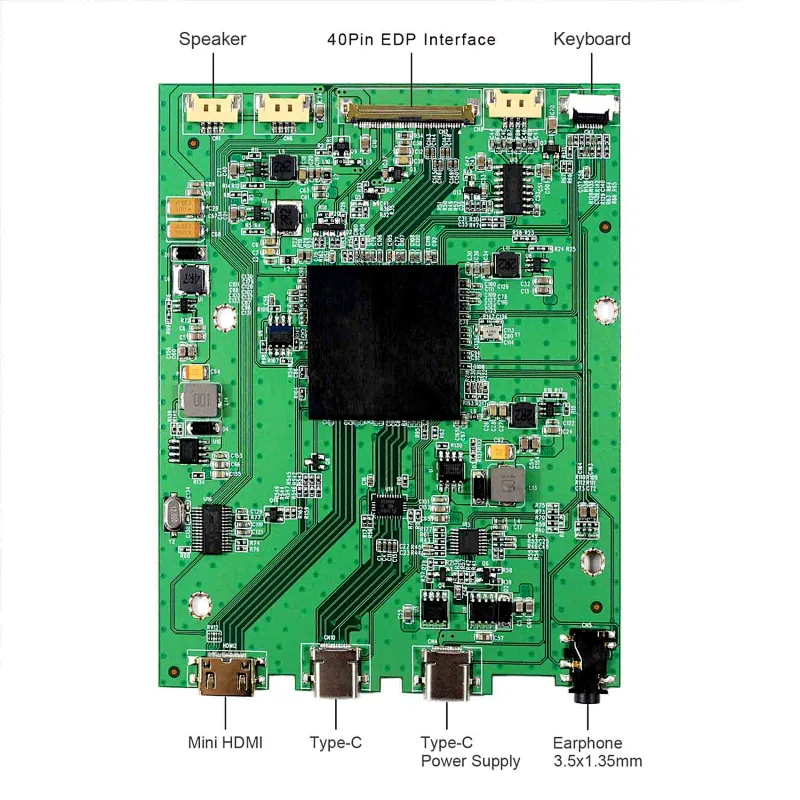

  • LCD Controller Board:

    Type C HDMI Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen

    Input Power Adapter: 5Vdc Type C

    Come In Standby Model When Not Input Signal

    Standby Model <1.2W

    HDR: Support

    Video Input

    HDMI (HDMI 2.0 max 3840x2160 60Hz Support HDCP2.2)

    Type-C (Data Transmission Image Display 5V Max 3A output)

    Audio Output: Earphone

    OSD: Brightness Contrast VOL+ VOL- Language And So On

    Language: English French German Spanish Italian And So On

    Board Size: 91.4mm x 120mm x 5mm

  • 15.6"LCD Screen LQ156D1JW04:
    Display Mode  AAS, Normally Black, Transmissive
    Resolution  3840 (RGB)×2160 (UHD)
    Outline Size 367.98(W)×218.31 (H) ×3.2(D) mm
    Display Area 345.6(W)×194.4(H) mm
    Brightness 330 cd/m² (Typ.)
    Contrast Ratio 1000:1 (Typ.) (TM)
    Viewing Angle 88/88/88/88 (Typ.)(CR≥10) [Left / Right / Up / Down]

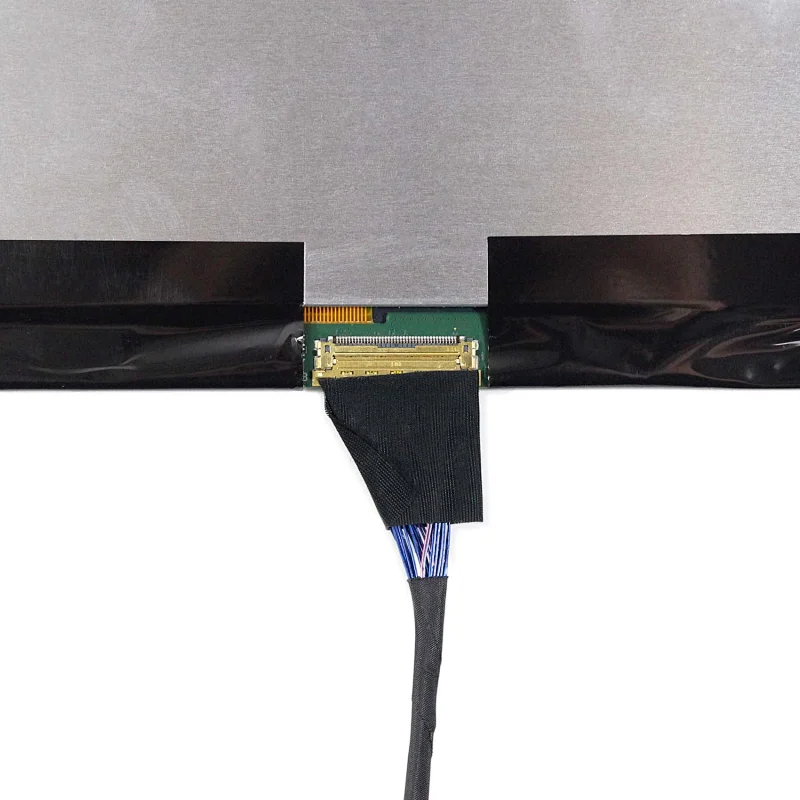

    Signal Interface eDP (4 Lanes) , Connector ,40 pins
    Backlight WLED
    Input Voltage  3.3V (Typ.)
  • Packing list :

    1× Mini HDMI Type C LCD Controller VS-RT2795T4K-V2

    1× 15.6inch LQ156D1JW04 3840X2160 IPS LCD Screen

    1× Signal Cable

    1× Keyboard With Cable
