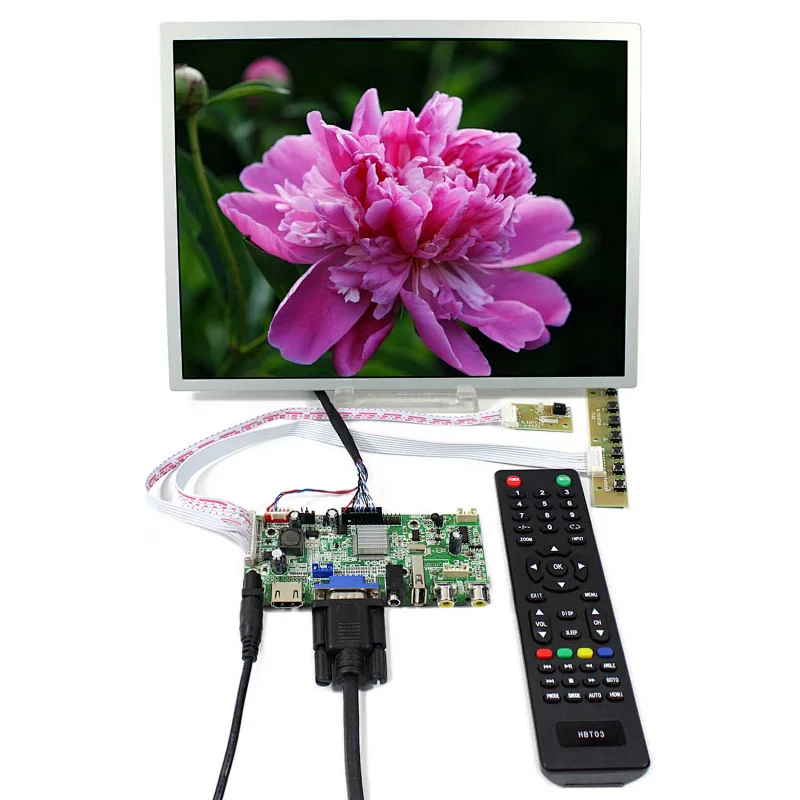

HDMI VGA 2AV USB LCD Board Work for 12.1" LQ121S1L72 800X600 LVDS Interface LCD Screen lvds lcd interface screen LQ121S1LG72 800x600 lvds screen USB LCD Board for 12.1" lcd

Model NO.
K001034 VS-V59AV-V1+LQ121S1LG72
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

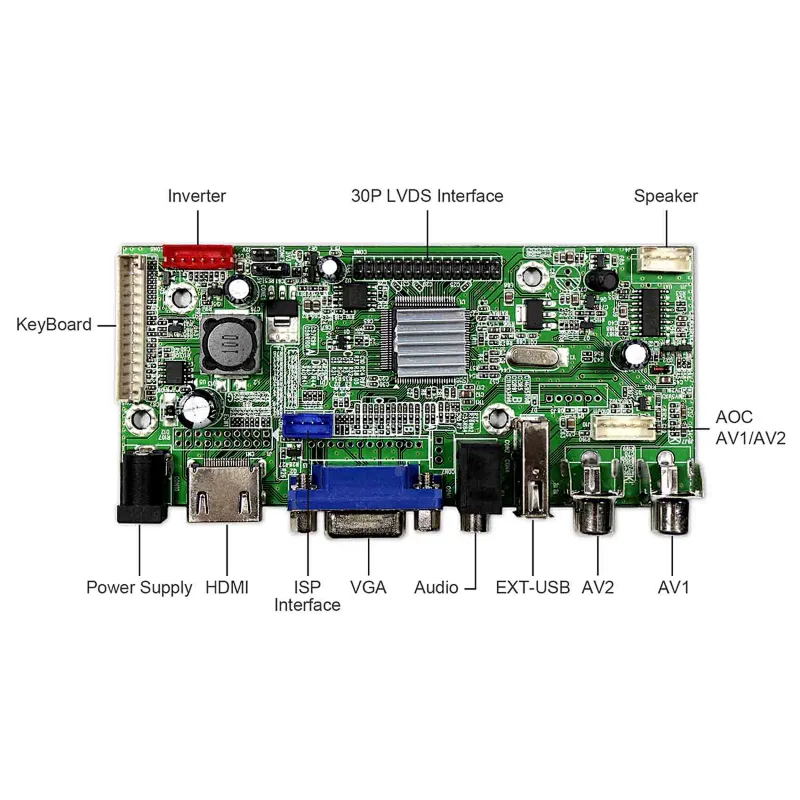

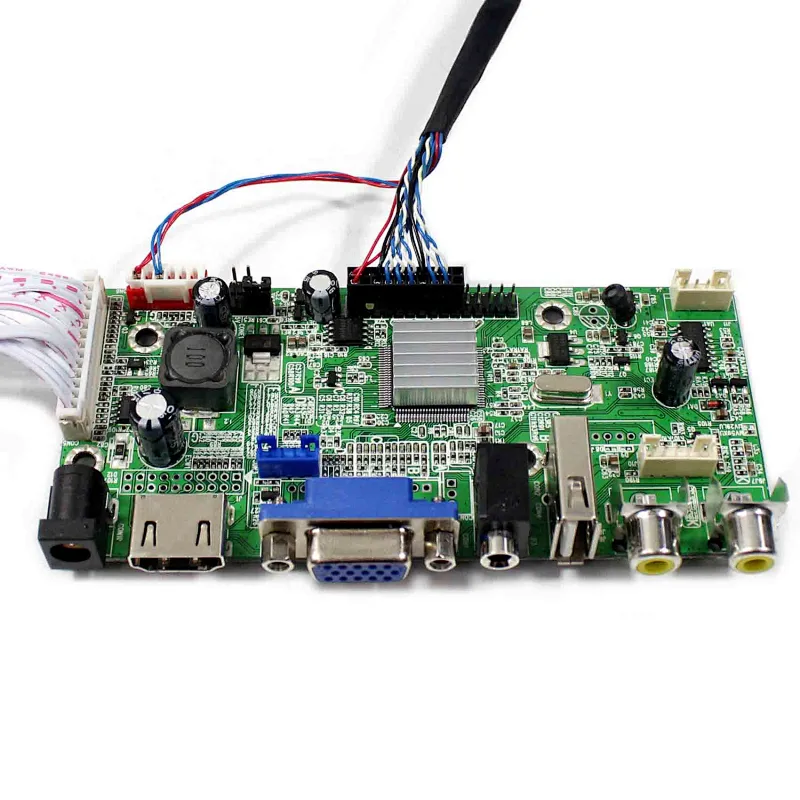

  • LCD Controller Board:

    HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen

    Input Power Adapter:12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <1W

    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2

    USB Support Video

    AV1 AV2 Compatible With PAL And NTSC

    Video Input: HDMI VGA AV1 AV2 USB

    Audio Input: HDMI PC-Audio

    Audio Output: Speaker Connector

    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

    Board Size:118mm x 54mm x 17mm

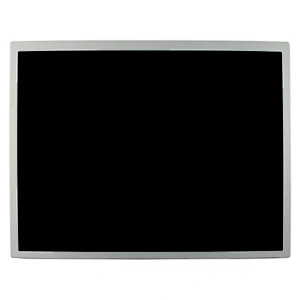

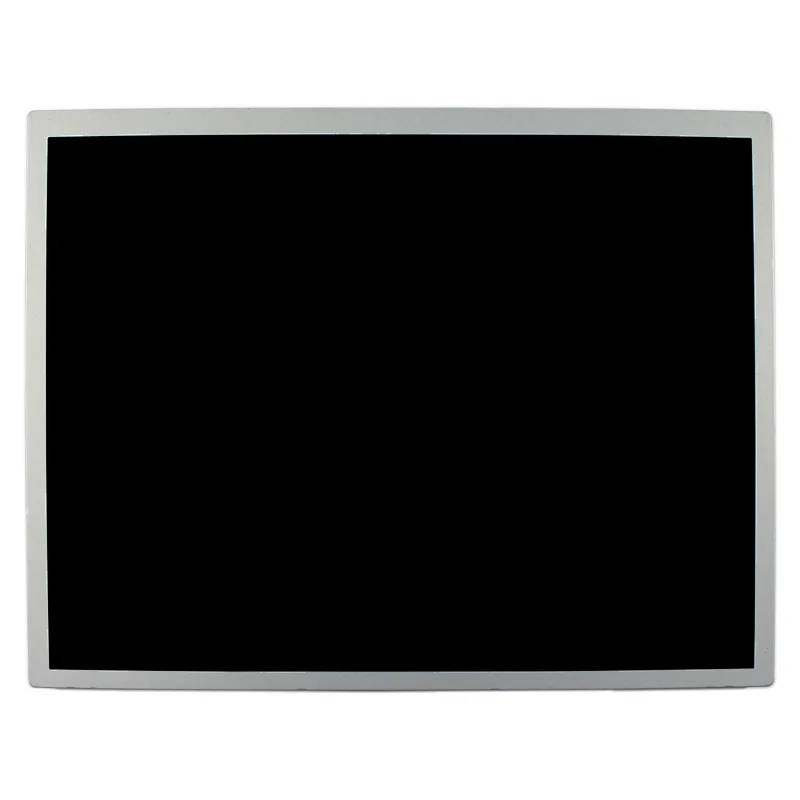

  • 12.1"LQ121S1L75 800X600 LCD Screen:

    Display Mode  TN, Normally White, Transmissive

    Resolution 800RGB)×600

    Outline Size 265× 205×10 (H×V×D)

    Display Area 246 × 184.5 (H×V)

    Brightness 300 cd/m² (Typ.)

    Contrast Ratio 900:1 (Typ.) (TM)

    Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

    Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector

    Backlight  WLED

    Input Voltage  3.3V (Typ.)

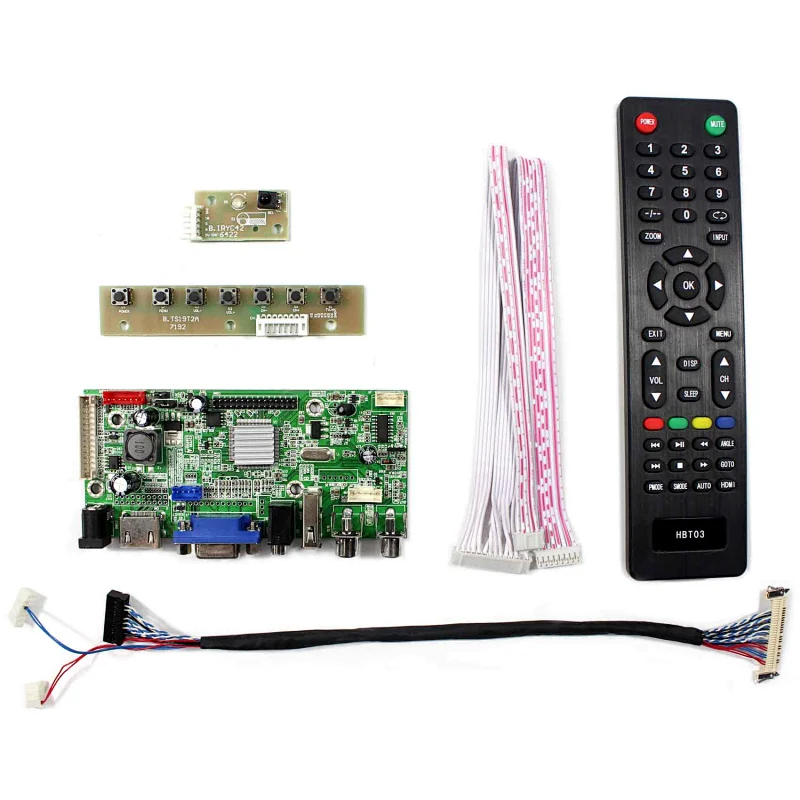

  • Packing list :

    1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1

    1× 12.1inch LQ121S1LG72 800X600 LCD Screen

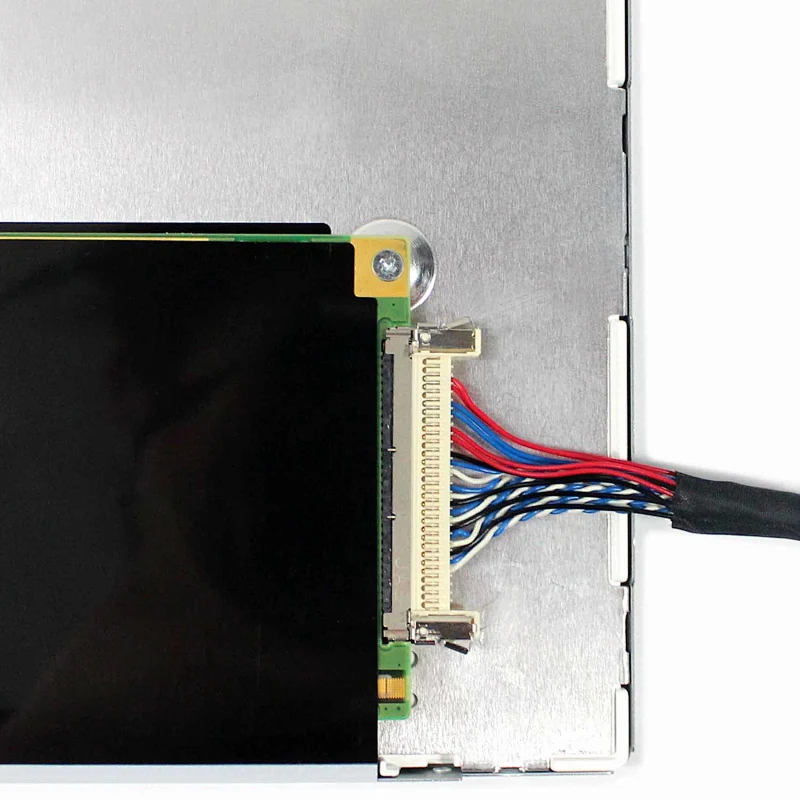

    1× LVDS Cable

    1× Keyboard With Cable

    1× Remote Control(Battery Not included)
