HDMI DVI VGA AUDIO LCD Board Work for 12.1" LQ121S1LG73 800X600 LVDS TFT LCD Screen LQ121S1LG73 800X600 LVDS LCD 12.1" TFT LCD Screen hdmi board for 12.1" tft lcd

Model NO.
K000939 M.NT68676+LQ121S1LG73
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

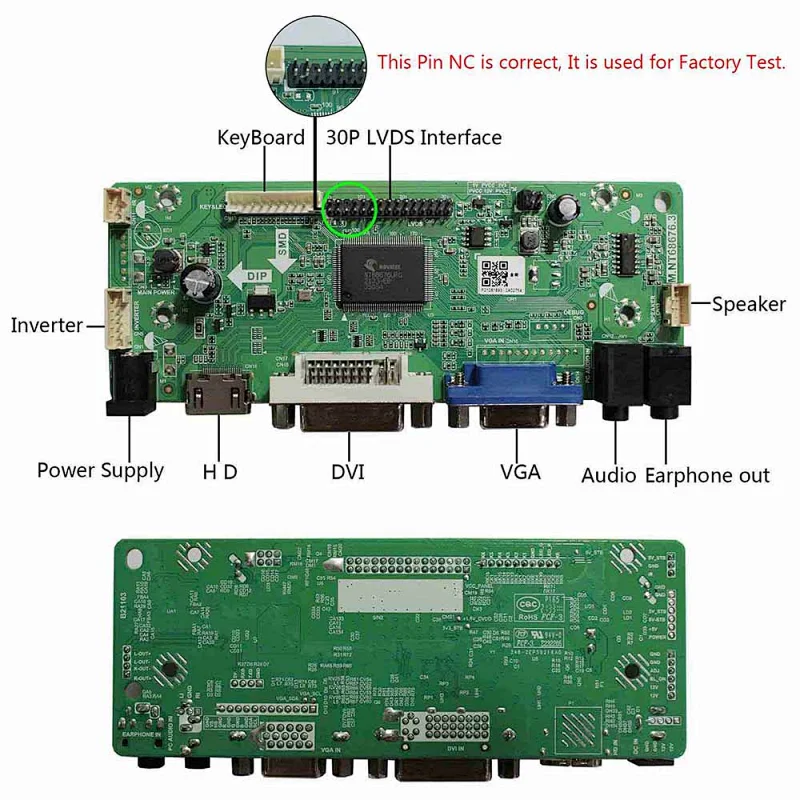

  • LCD Controller Board:

    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

    Input Power Adapter:12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <1W

    Video Input: HDMI DVI VGA

    Audio Input: HDMI

    Audio Output: Speaker Connector

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

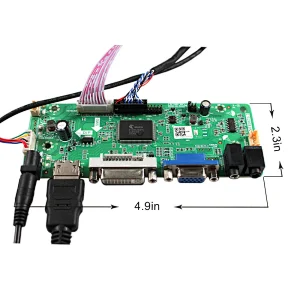

    Board Size:125mm x 58mm x 17mm

  • 12.1"LQ121S1LG73 800X600 LCD Screen:

    Display Mode TN, Normally White, Transmissive

    Resolution 800RGB)×600

    Outline Size 265×205×10 (H×V×D)mm

    Display Area 246× 184.5(H×V)mm

    Brightness 450 cd/m² (Typ.)

    Contrast Ratio 800:1 (Typ.) (TM)

    Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

    Signal Interface Parallel (1 ch, 8-bit) , 20 pins , LVDS

    Backlight WLED

    Input Voltage 3.3V (Typ.)

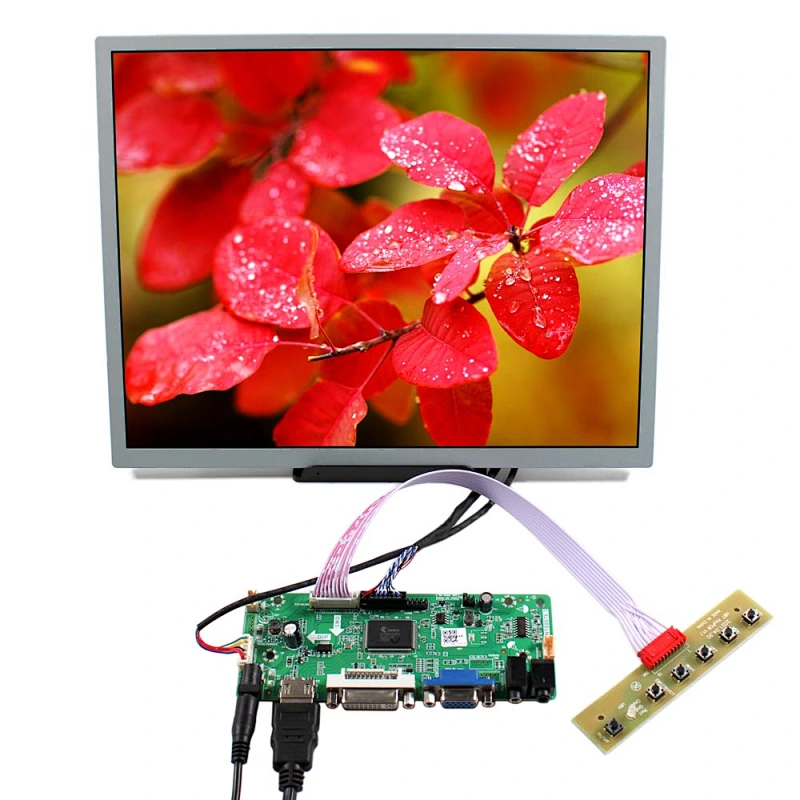

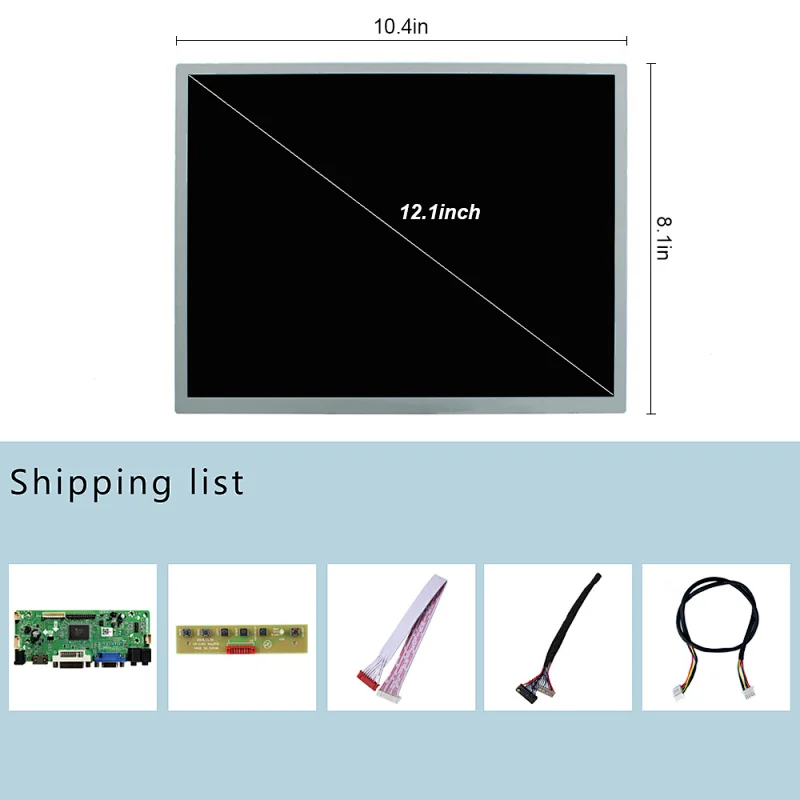

  • Packing list :

    1× HDMI VGA DVI LCD Controller Board M.NT68676

    1× 12.1inch LQ121S1LG73 800x600 LCD Screen

    1× LVDS Cable

    1× Backlight Cable

    1× Keyboard With Cable
