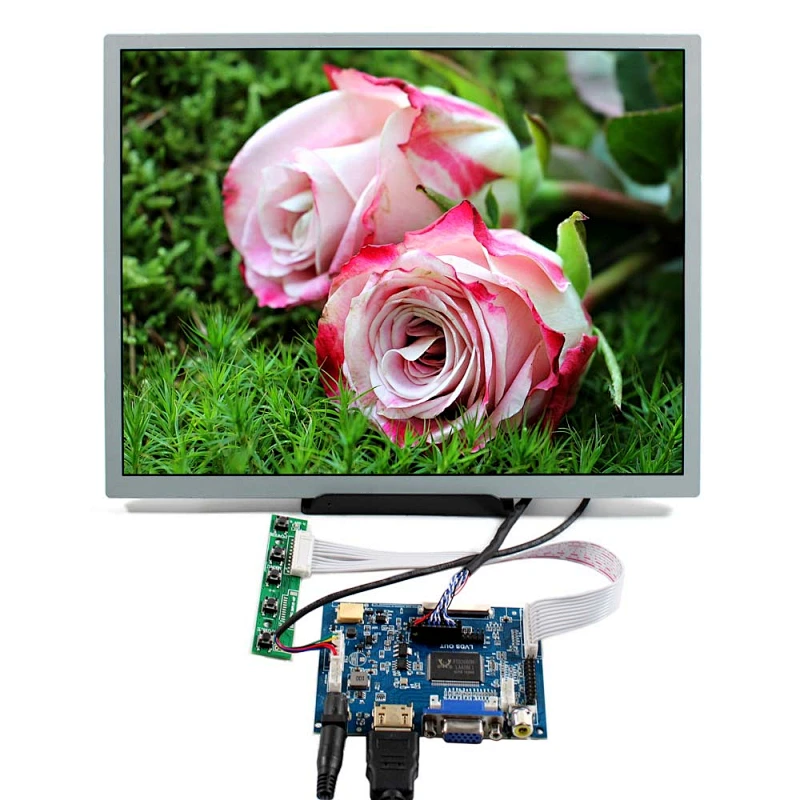

  5. HDMI VGA 2AV LCD Board Work for 12.1" LQ121S1LG73 800X600 LVDS TFT LCD Screen lvds lcd controller board 12.1" LVDS tft lcd screen LQ121S1LG73 800x600 tft lcd screen hdmi vga lcd board
Print This Page
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1
HDMI VGA 2AV LCD Board Work for 12.1

HDMI VGA 2AV LCD Board Work for 12.1" LQ121S1LG73 800X600 LVDS TFT LCD Screen lvds lcd controller board 12.1" LVDS tft lcd screen LQ121S1LG73 800x600 tft lcd screen hdmi vga lcd board

Model NO.
K001122 VS-TY2662-V1+LQ121S1LG73
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

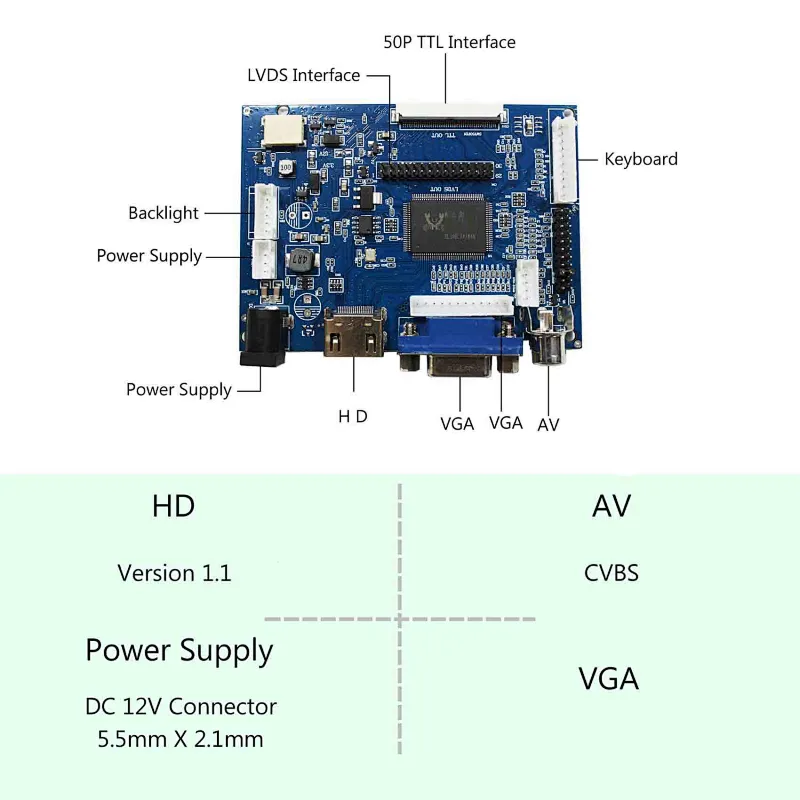

  • LCD Controller Board:

    HD-MI VGA 2AV LCD Board Work for LVDS Interface LCD Screen

    50Pin TTL Connector for 7inch~10.1inch LCD Screen

    Input Power Adapter:12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <1W

    Video Input: HD-MI VGA AV1 AV2

    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

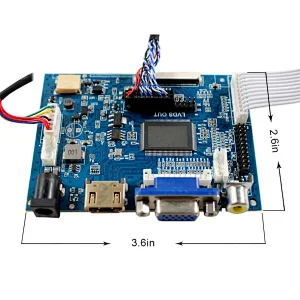

    Board Size:91mm x 66mm x 12mm

  • 12.1"LQ121S1LG73 800X600 LCD Screen:

    Display Mode TN, Normally White, Transmissive

    Resolution 800RGB)×600

    Outline Size 265×205×10 (H×V×D)mm

    Display Area 246× 184.5(H×V)mm

    Brightness 450 cd/m² (Typ.)

    Contrast Ratio 800:1 (Typ.) (TM)

    Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

    Signal Interface Parallel (1 ch, 8-bit) , 20 pins , LVDS

    Backlight WLED

    Input Voltage 3.3V (Typ.)

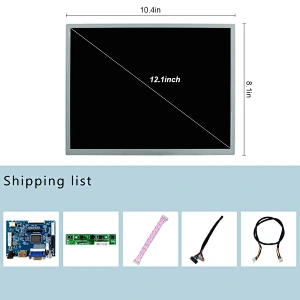

  • Packing list :

    1× HD-MI VGA+2AV LCD Controller Board VS-TY2662-V1

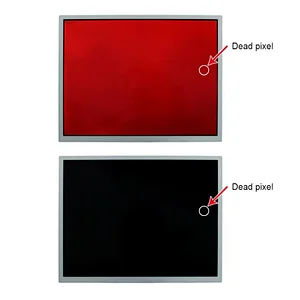

  • 1× 12.3inch LQ121S1LG73 800x600 LCD （With One Dead Pixel）

    1× LVDS Cable

    1× Backlight Cable

    1× Keyboard With Cable
