HDMI DVI VGA AUDIO LCD Board Work for 12.1" AC121SA01 1024X768 LVDS interface TFT LCD Screen lvds lcd interface 12.1INCH TFT LCD AC121SA01 1024X768 TFT LCD 12.1" 1024x768 tft lcd HDMI LCD Controller board

Model NO.
K000919 M.NT68676+AC121SA01
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

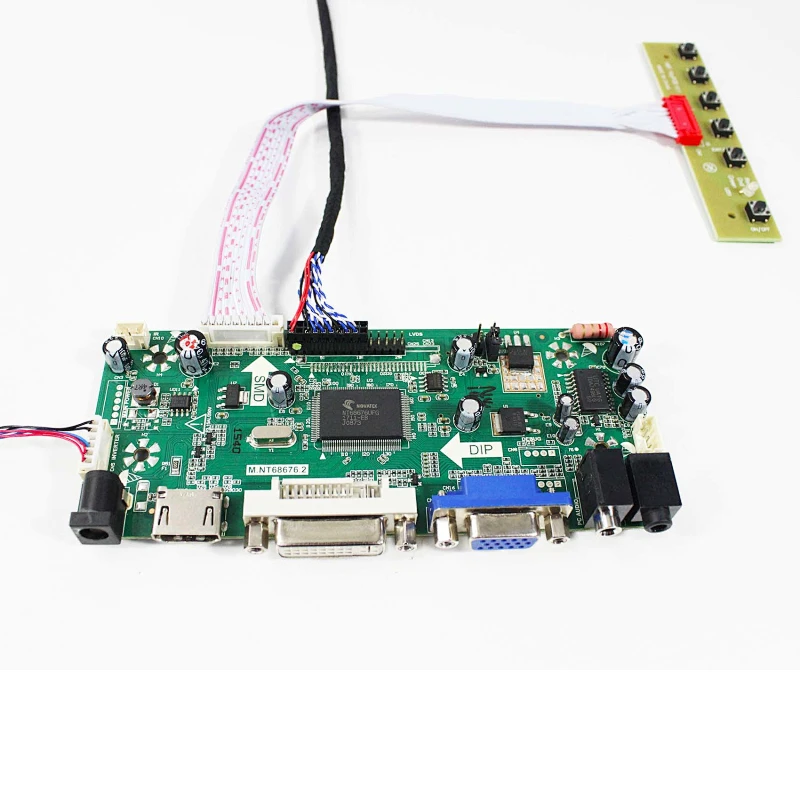

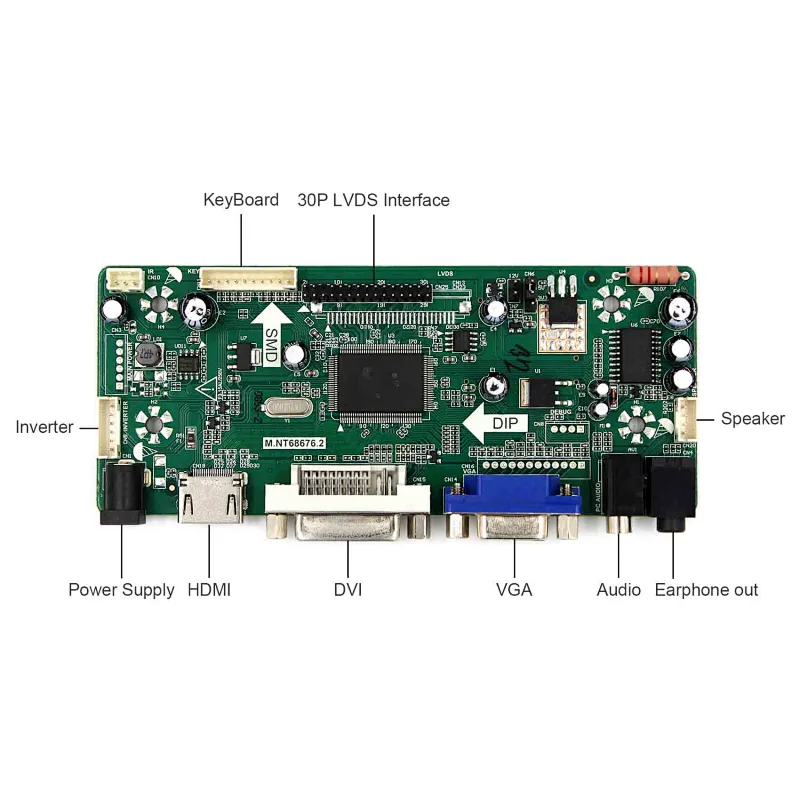

LCD Controller Board:

HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI DVI VGA

Audio Input: HDMI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 58mm x 17mm


12.1"AC121SA01 1024X768 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 1024RGB)×768

Outline Size 260×203×10 (H×V×D)

Display Area 246× 184.5 (H×V)

Brightness 450 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface  20 pins LVDS (1 ch, 6/8-bit) , Connector 20Pins

Backlight  WLED

Input Voltage  3.3V (Typ.)


Packing list :

1× HDMI VGA DVI LCD Controller Board M.NT68676

1× 12.1inch AC121SA01 1024X768 LCD Screen

1× Backlight Cable

1× LVDS Cable

1× Keyboard With Cable
