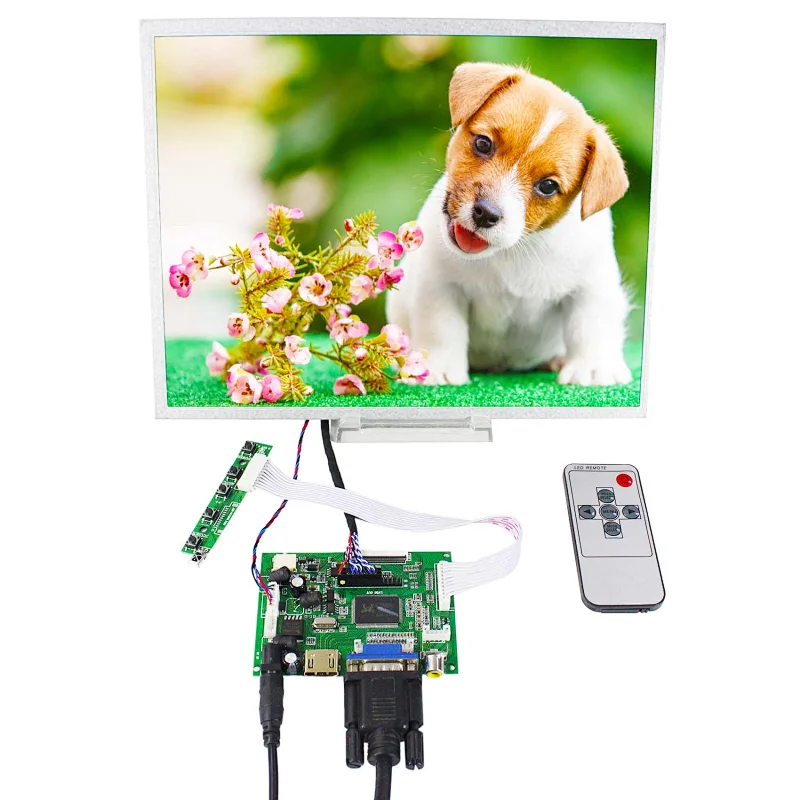

12.1" AC121SA01 1024X768 LVDS TFT LCD Screen with HDMI VGA 2AV LCD Controller Board lcd controller board hdmi AC121SA01 LVDS tft lcd screen 12.1" tft lcd screen

Model NO.
K000921 VS-TY2662-V1+AC121SA01
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

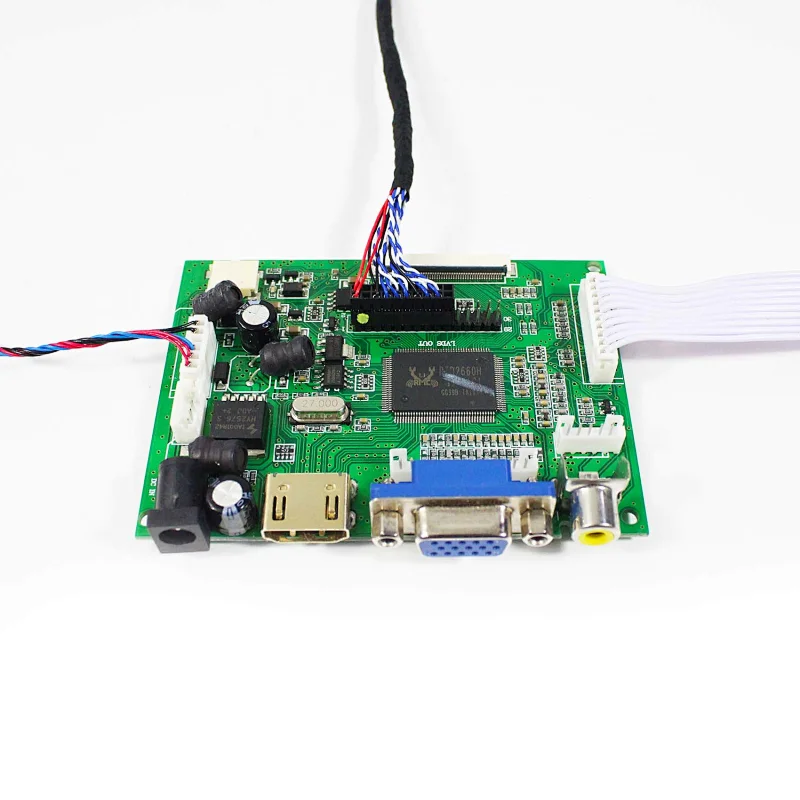

LCD Controller Board:

HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 91mm x 66mm x 12mm


12.1"AC121SA01 1024X768 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 1024RGB)×768

Outline Size 260×203×10 (H×V×D)

Display Area 246× 184.5 (H×V)

Brightness 450 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface  20 pins LVDS (1 ch, 6/8-bit) , Connector 20Pins

Backlight  WLED

Input Voltage  3.3V (Typ.)

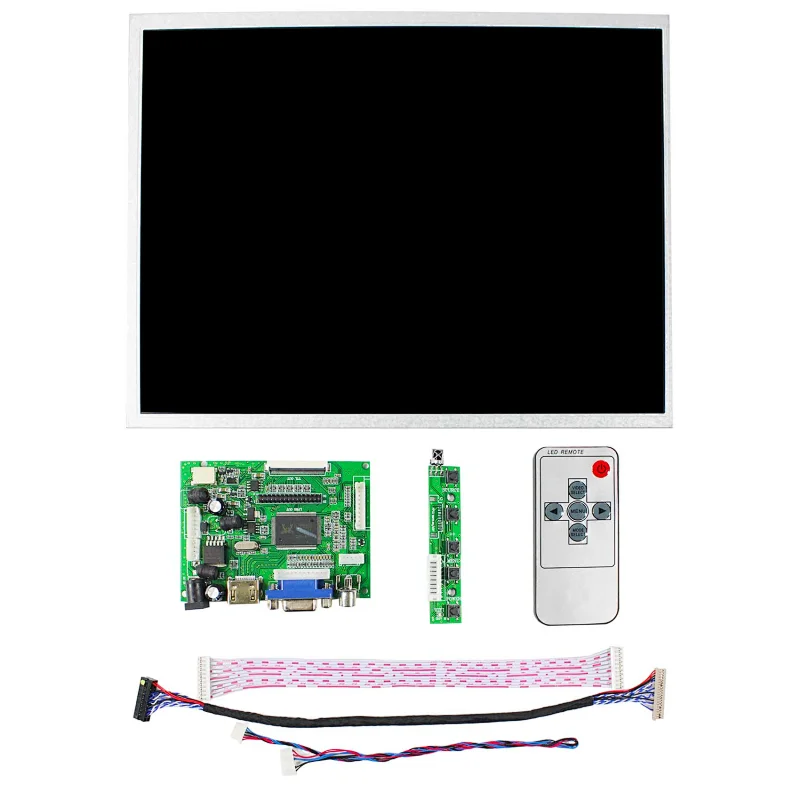

Packing list :

1× HDMI VGA+2AV LCD Controller Board VS-TY2662-V1

1× 12.1inch AC121SA01 1024X768 LCD Screen

1× Backlight Cable

1× LVDS Cable

1× Keyboard With Cable

1× Remote Control (Battery Not included)
