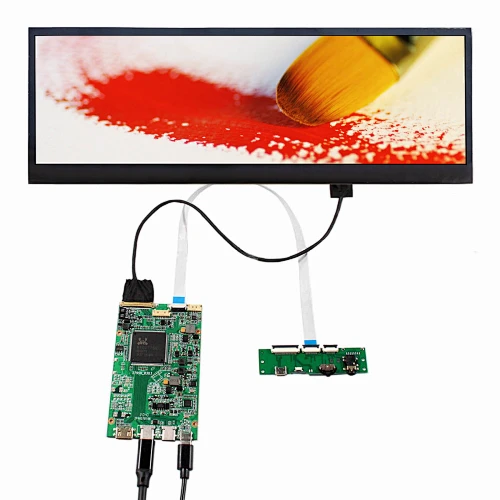

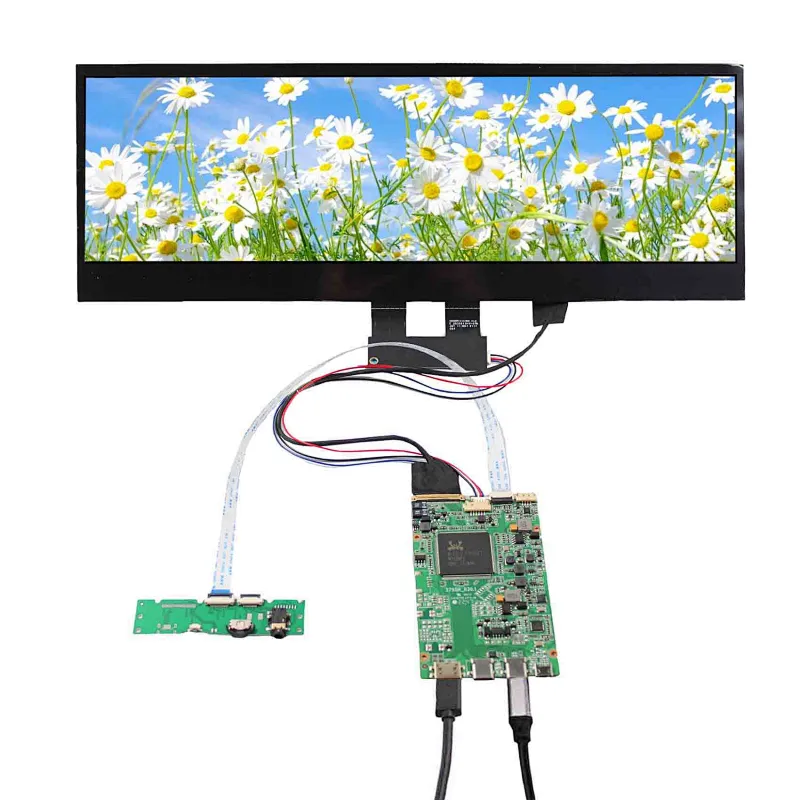

Type C HDMI Board For eDP 14" 4K 3840x1100 Capacitive Touch LCD Screen lcd touch screen capacitive 14" EDP Capacitive touch lcd 4k lcd screen 3840x1100 Capacitive Touch LCD Screen NV140XTM-N52 strip lcd hdmi board for 14" 4k lcd screen

Model NO.
K003242 VS-RT2795T4K-V5 Type-C一+14" NV140XTM-N52+TP 3840x1100
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

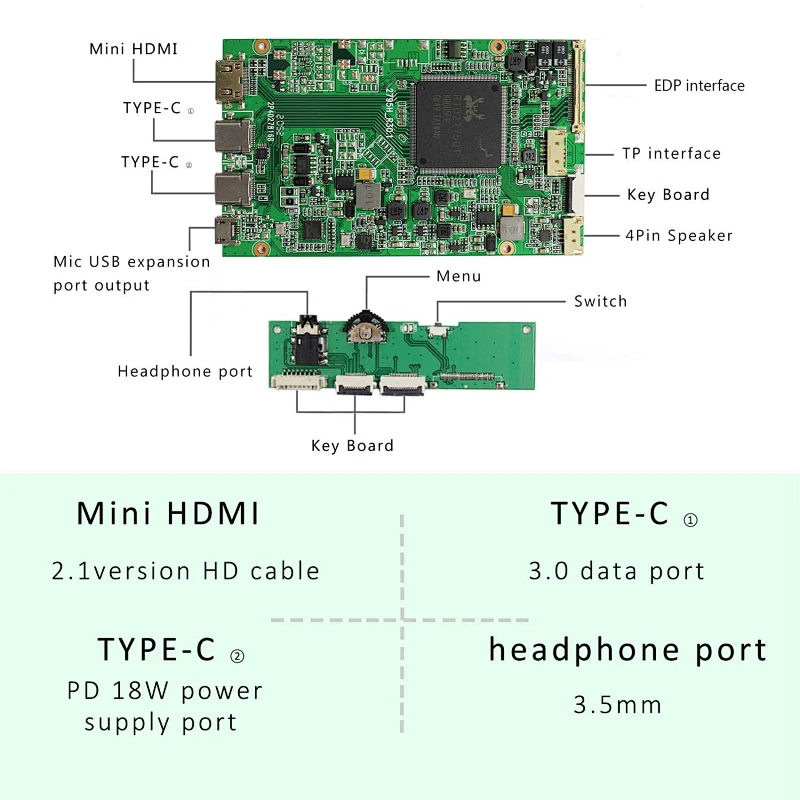

LCD Controller Board:

Type C HD Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen

Input Power Adapter: PD 5V dc Type C 18W

Come In Standby Model When Not Input Signal

Standby Model <1.2W

HDR: Support

Video Input

HD-MI (HD max 3840x2160 60Hz Support HDCP2.2)

Type-C (Data Transmission Image Display 5V Max 3A output)

Audio Output: Earphone Speaker

OSD: Brightness Contrast VOL+ VOL- Language And So On

Language: English French German Spanish Italian And So On

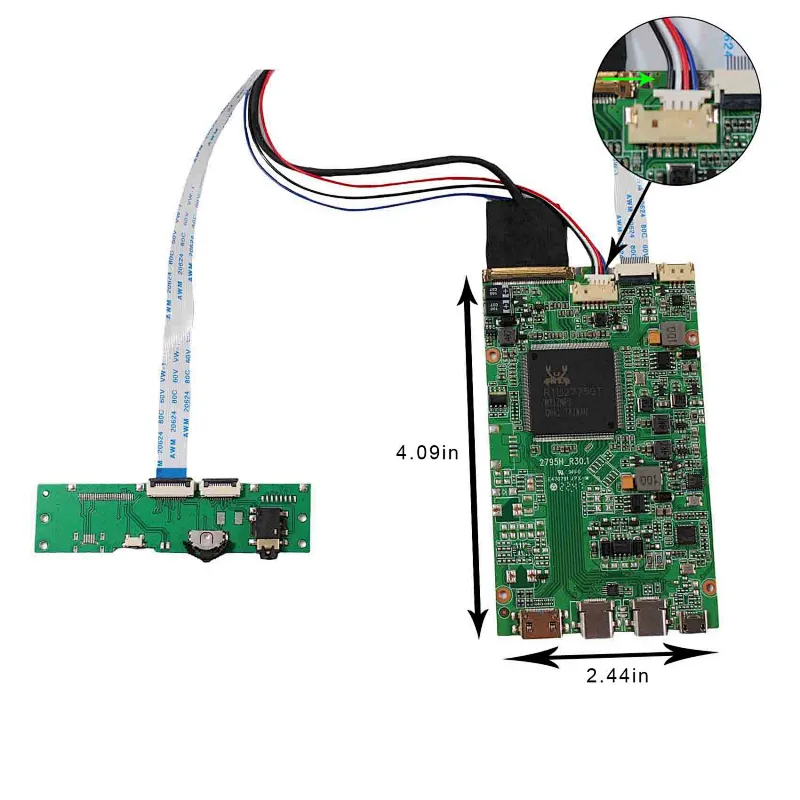

Board Size: 104.0mm x 62mm x 5mm


14"LCD Screen NV140XTM-N52:
Display Mode AAS, Normally Black, Transmissive
Resolution 3840 (RGB)×1100 (UHD)
Outline Size 350.52(W)×118.65 (H) ×2.5(D) mm
Display Area 344.218(W)×98.604(H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes) , Connector ,30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

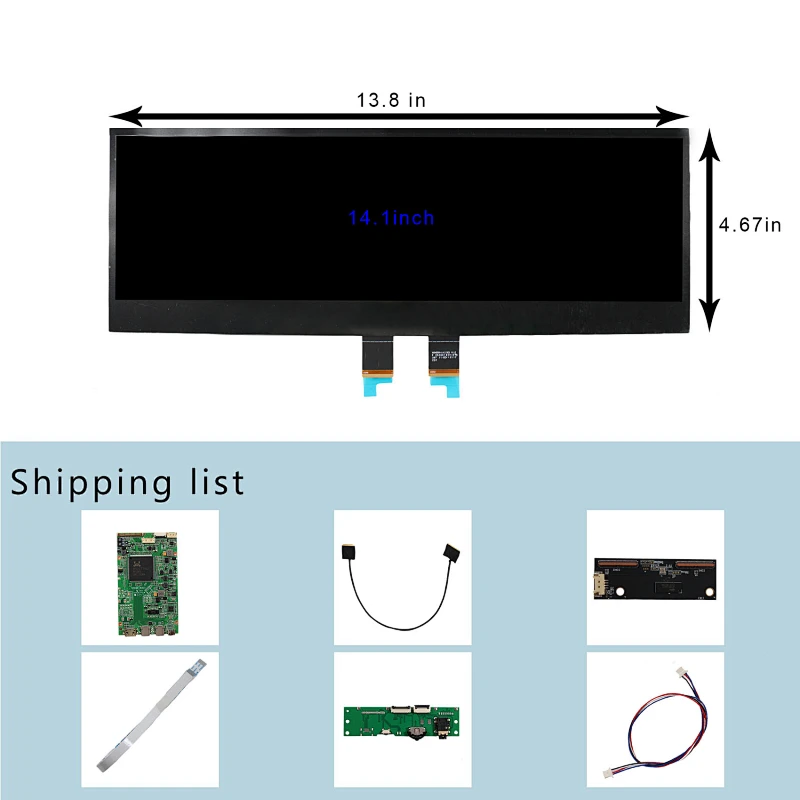

Packing list:

1× Mini HD-MI Type C LCD Controller VS-RT2795T4K-V5

1× 14inch 3840X1100 4K Capacitive IPS LCD Screen

1x Touch controller Board With Cable

1× Signal Cable

1× Keyboard With Cable
