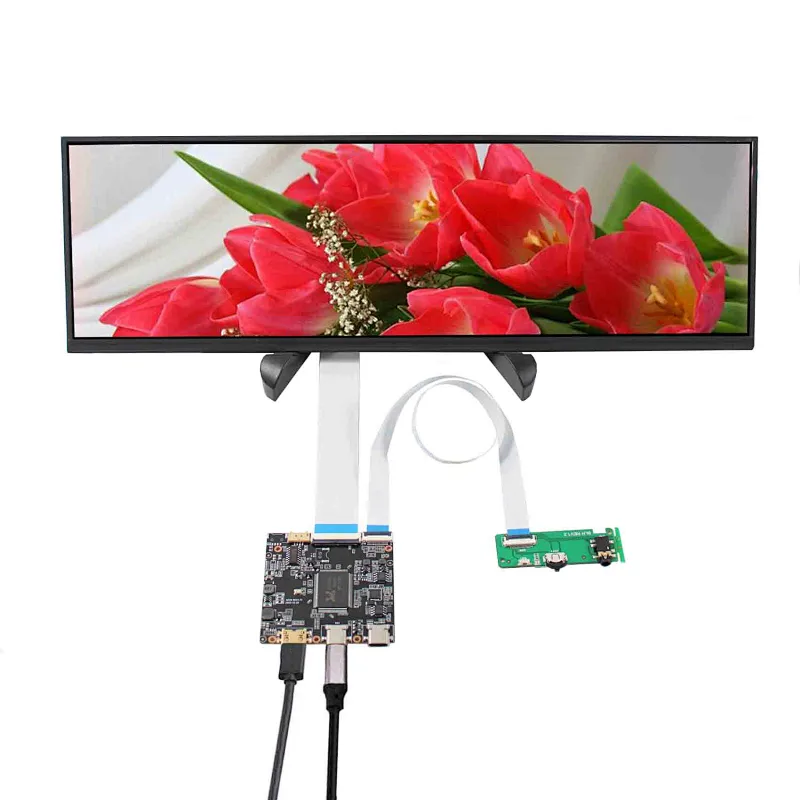

HDMI TYPE-C LCD Controller Board with 14.5" VS145T-001T 2560X720 LCD Screen 14.5inch 2K LCD Screen 2560X720 2K LCD Screen 14.5" lcd screen type c lcd controller board hdmi lcd controller board

HDMI Type C Control Board Work for LCD Screen

Input Power Adapter: Type-C connector

HDR: Support

Come In Standby Model When Not Input Signal

Standby Model <0.3W

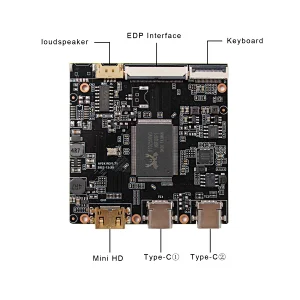

Input: Type-C Mini HD-MI

Output: eDP USB (max 500mA)

Audio Output: Speaker

OSD: Brightness Contrast VOL+ VOL- Language And So On

Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski

Nederlands Korean Japanese

Board Size: 60.8mm x 60.2mm x 4mm

Display Mode ADS, Normally Black, Transmissive

Resolution 2560(RGB)×720

Outline Size 364.2 ×113.3×3.5 (H×V×D)

Display Area 354.82× 99.97 (H×V)

Brightness 350 cd/m² (Typ.)

Contrast Ratio 500:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC

Backlight WLED

Input Voltage 3.3V (Typ.)

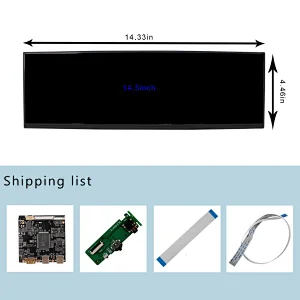

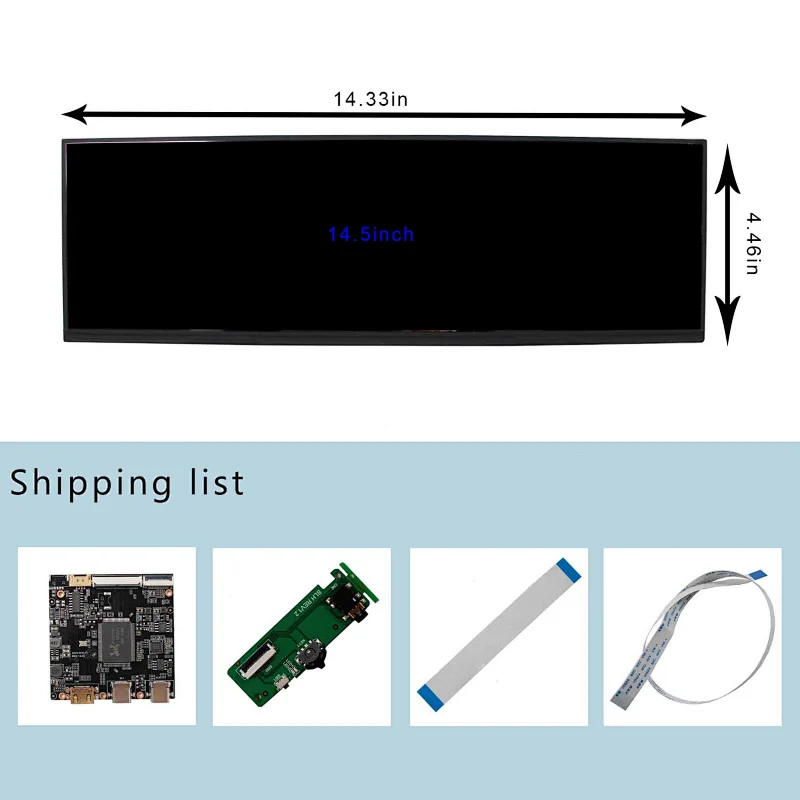

1× HDMI TYPE-C LCD Controller Board VS-AP2K

1× 14.5inch VS145T-001T 2560X720 2K LCD Screen

1× Signal Cable

1× Keyboard With Cable
