HDMI TYPE-C LCD Controller Board VS-AP2K with 12.3" VS123GF-01 2400X900 LCD Screen lcd controller board hdmi 12.3" 2400X900 LCD Screen 2400X900 LCD Screen Type C Control Board HDMI Control Board Work for LCD Screen

HDMI Type C Control Board Work for LCD Screen

Input Power Adapter: Type-C connector

HDR: Support

Come In Standby Model When Not Input Signal

Standby Model <0.3W

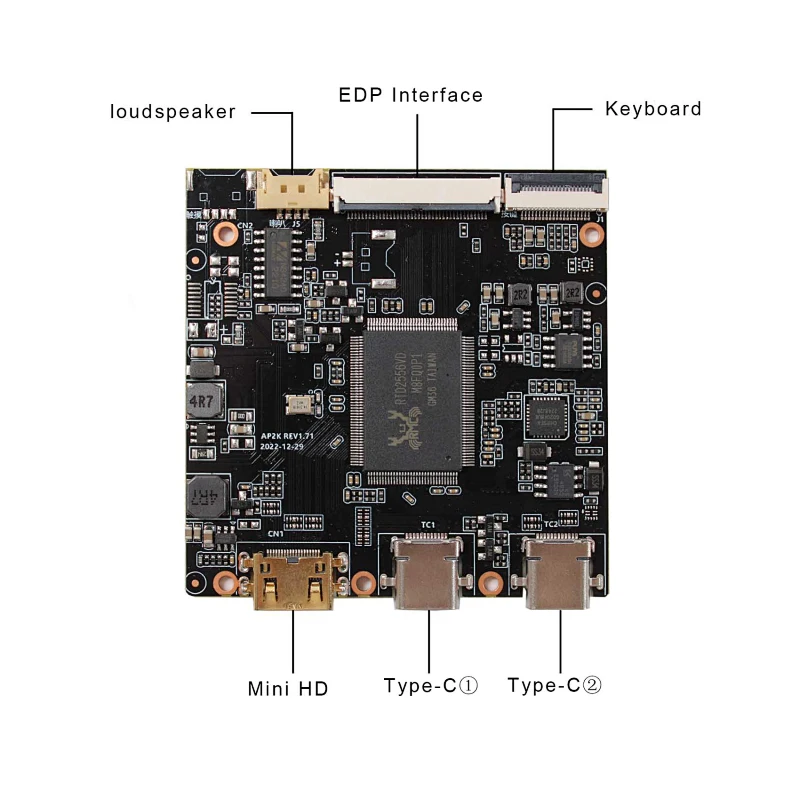

Input: Type-C Mini HD-MI

Output: eDP USB (max 500mA)

Audio Output: Speaker

OSD: Brightness Contrast VOL+ VOL- Language And So On

Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski

Nederlands Korean Japanese

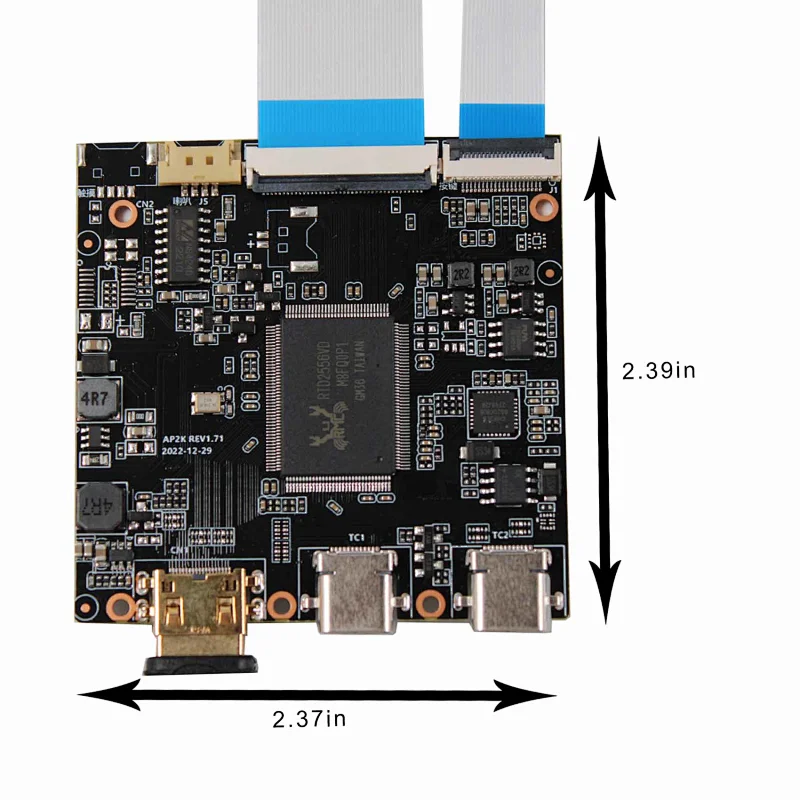

Board Size: 60.8mm x 60.2mm x 4mm

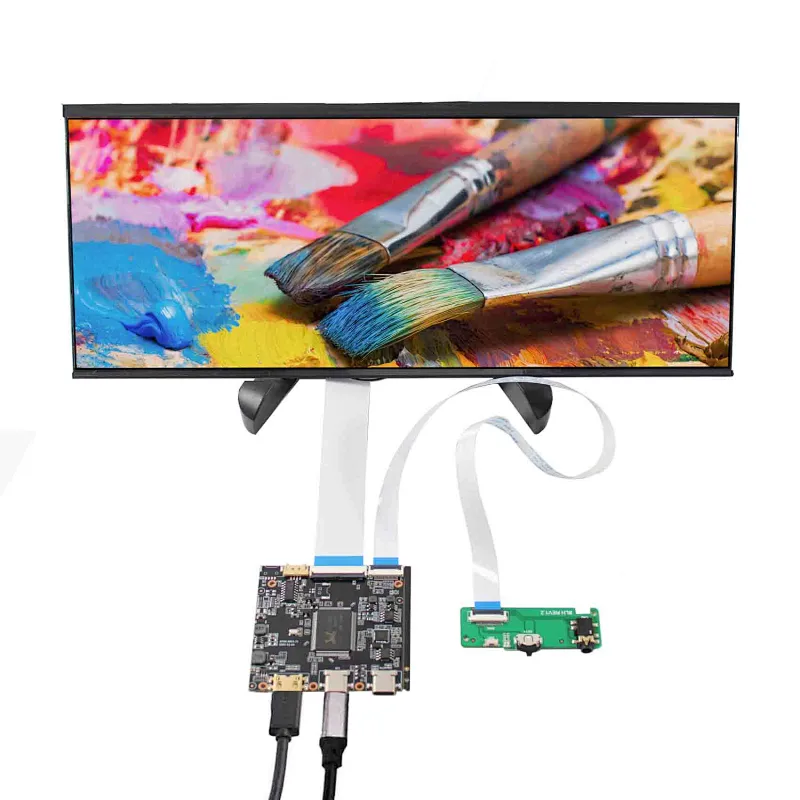

12.3"VS123GF-01 2400X900 LCD Screen:

Display Mode ADS, Normally Black, Transmissive

Resolution 2400(RGB)×900

Outline Size 300 ×123.3×3.5 (H×V×D)

Display Area 291.6× 109.35 (H×V)

Brightness 250 cd/m² (Typ.)

Contrast Ratio 1500:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel LVDS (2 ch, 8-bit) , 68 pins , FPC

Backlight WLED

Input Voltage 3.3V (Typ.)

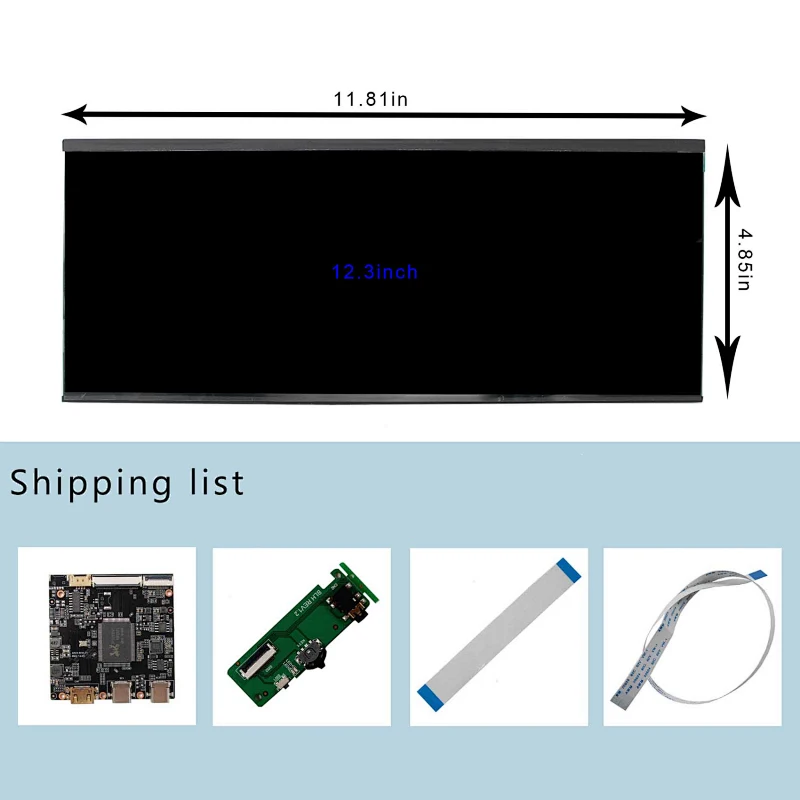

1× HD-MI TYPE-C LCD Controller Board VS-AP2K

1× 12.3inch VS123GF-01 2400X900 2K LCD Screen

1× Signal Cable

1× Keyboard With Cable
