VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen
VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen

VGA LCD Board Work for 15.4inch 1440x900 LVDS Interface LCD Screen lvds lcd interface lvds lcd controller board VGA LCD Board 15.4inch 1440x900 lcd screen

Model NO.
K001164 RT2270C-806 +FIX 30P双6 for 1440X900
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
Sorry! No related records found.

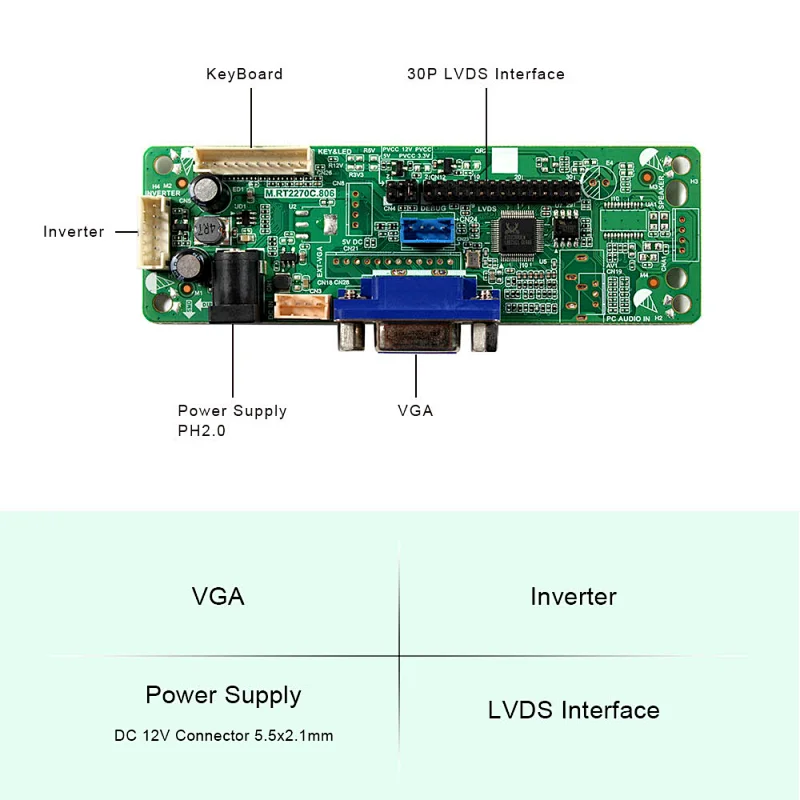

LCD Controller Board:

VGA LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

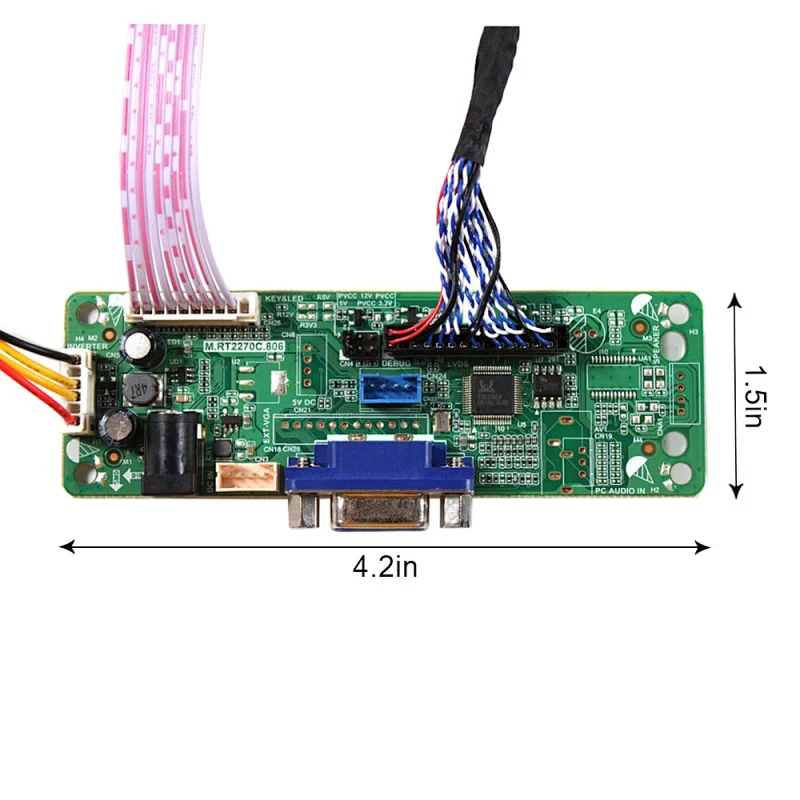

Board Size:107mm x 35mm x 18mm

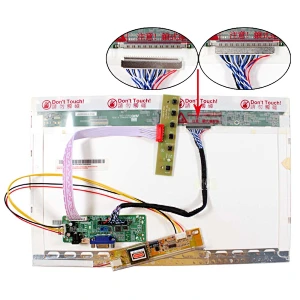

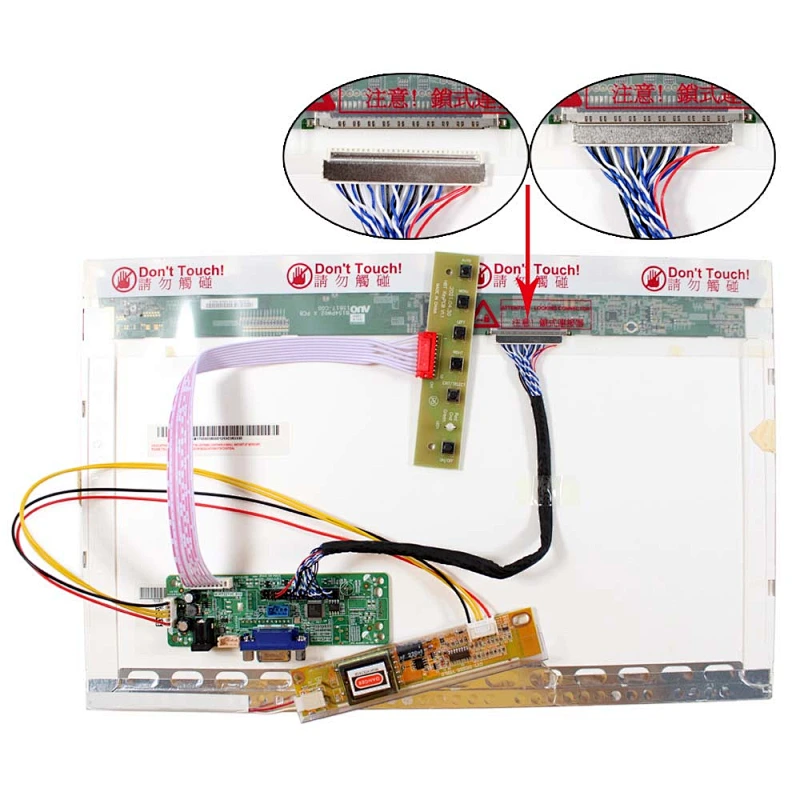

Compatible Work With:

15.4inch 1440x900:

CLAA154WP05 B154PW01V.1 N154C3 N154C1-L01 N154C1-L02 LP154WP1 LTN154BT05

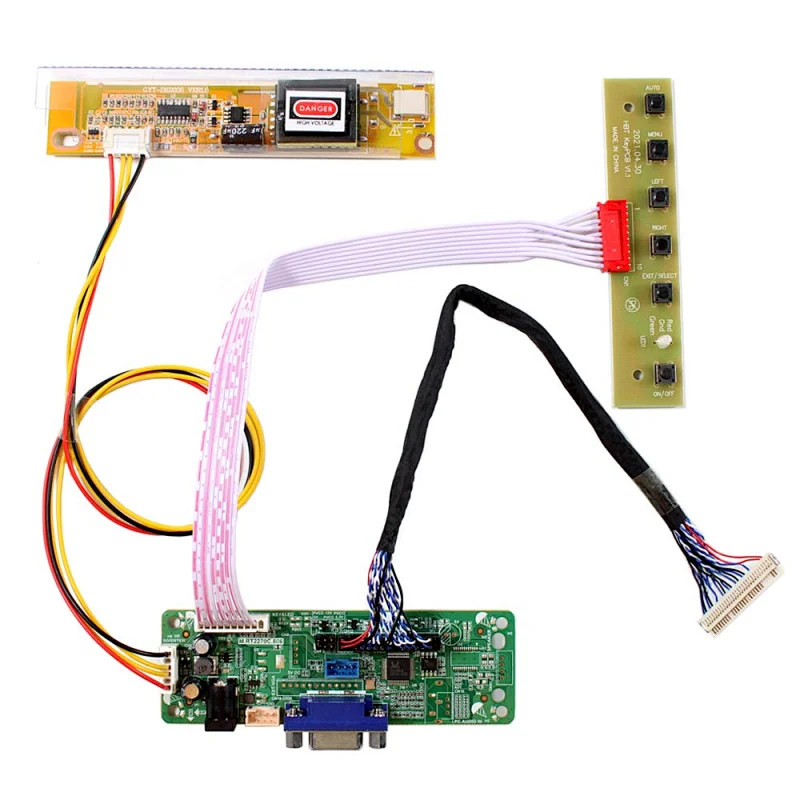

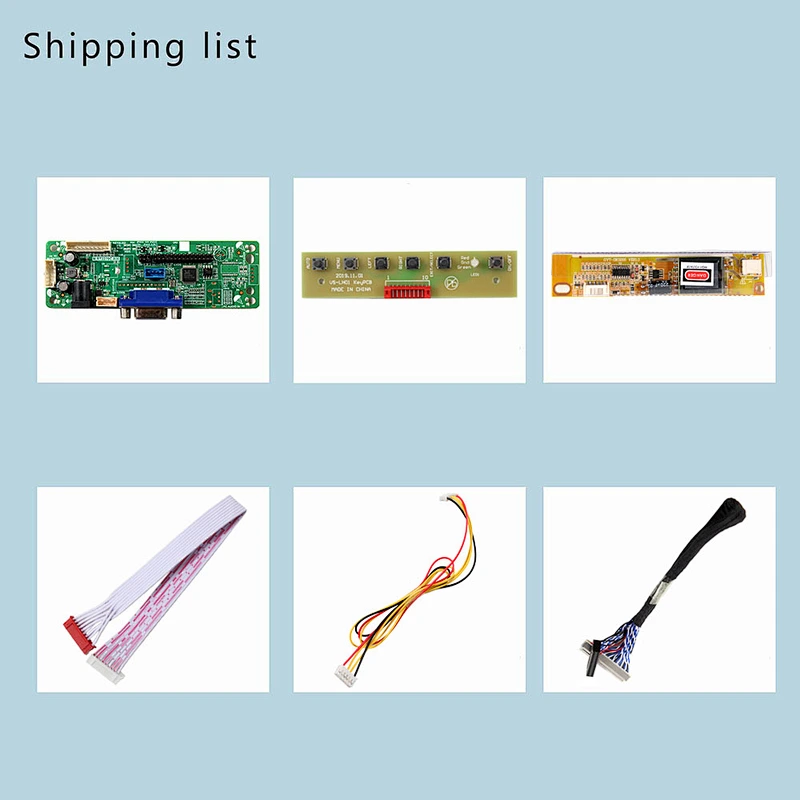

Packing list :

1× VGA LCD Controller Board RT2270C-806

1× 1CCFL Inverter Board

1× 30Pin Signal Cable

1× Keyboard With Cable
