DVI VGA LCD Board Work for 42inch 1920x1080 LC420EUN LVDS Interface LCD Screen lvds lcd controller board DVI VGA LCD Board LCD Board for 42inch lcd

Input voltage range: 90Vac to 264Vac

Normal voltage range: 100Vac to 240Vac

Frequency range: 50Hz/60Hz±5%

Max input ac current: 2.0Amax at full load condition

Inrush current (cold start): 50Atyp peak, 120Vac;100Atyp peak, 220Vac

Efficiency(full load): 83%min at 90Vac; 86%min at 220Vac Typ.

Leakage Current: Less Than 0.5mA, 240Vac input

Standby Power Consumption: ≦0.5W; 240Vac/50Hz input,+5.2VSB output

current_20mA

Input Fuse: T5.0AH/250Vac

Output Voltage & Current Regulation：

+5.2VSB 0.01A/0.5A/1.0A（Min/Rate/Peak Current）

+5.2V  0.2A/2.0A/2.5A（Min/Rate/Peak Current）

+12V  0.3A/2.0A/3.0A（Min/Rate/Peak Current）

+24V  0.2A/3.3A/4.0A（Min/Rate/Peak Current）

Board Size: 180mm x 180mm x 11mm

Weight: 500g

DVI VGA LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: DVI VGA

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 58mm x 17mm

42inch 1920x1080

LC420EUN

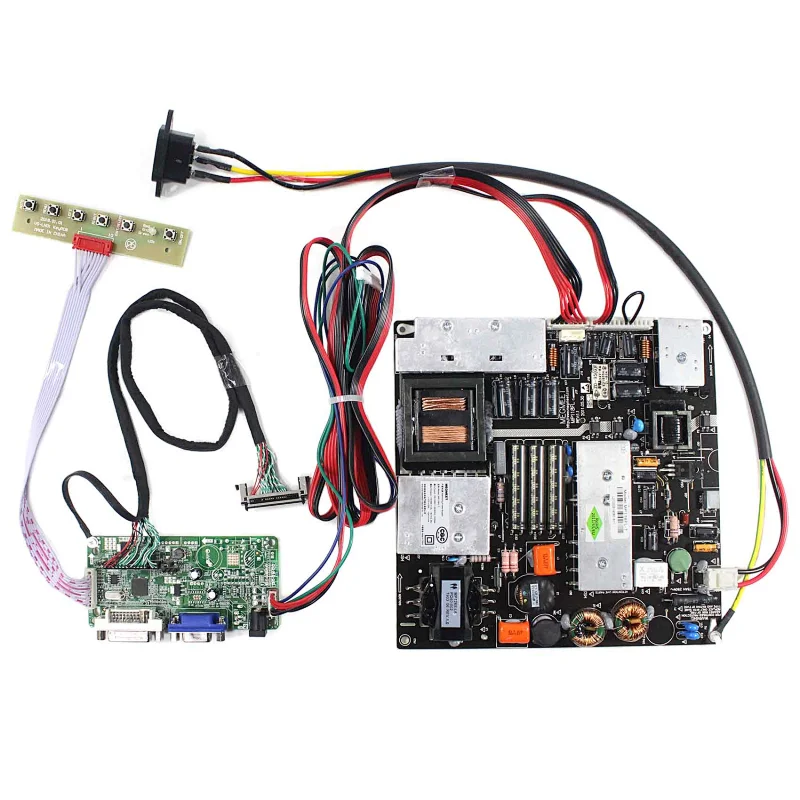

1× Power Supply Board For Backlight MP118TFL42

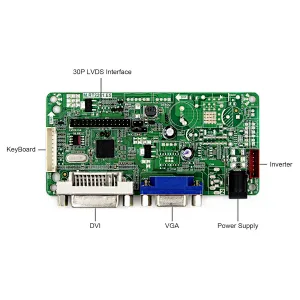

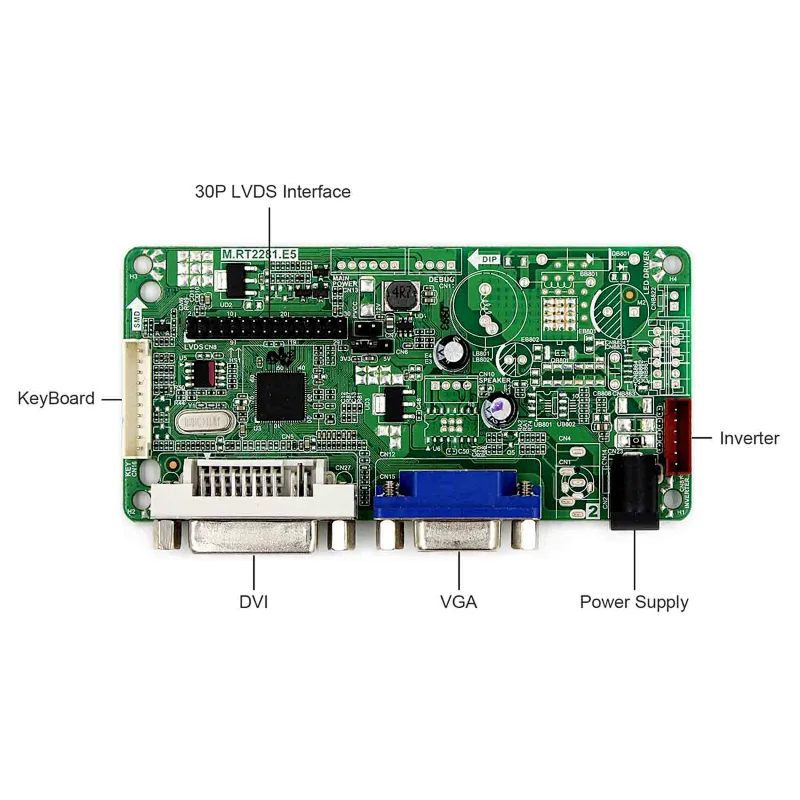

1× VGA+DVI LCD Controller Board RT2281

1× LVDS Cable

1× Connect Cable

1× Power Supply Cable

1× Keyboard With Cable
