HDMI VGA 2AV USB LCD Board Work for 21.5inch 1920x1080 LM215WF3-SLA1 LVDS Interface LCD Screen lcd lvds control board hdmi usb lcd board for 21.5inch lcd USB LCD Control board for 1920x1080 lcd panel

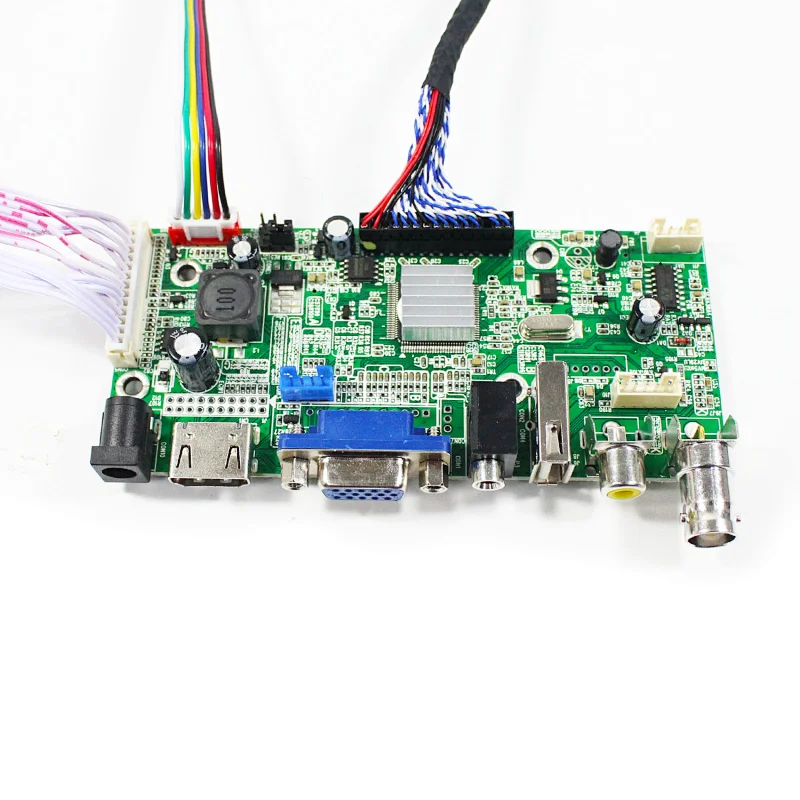

LCD Controller Board:

HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2

USB Support Video

AV1 AV2 Compatible With PAL And NTSC

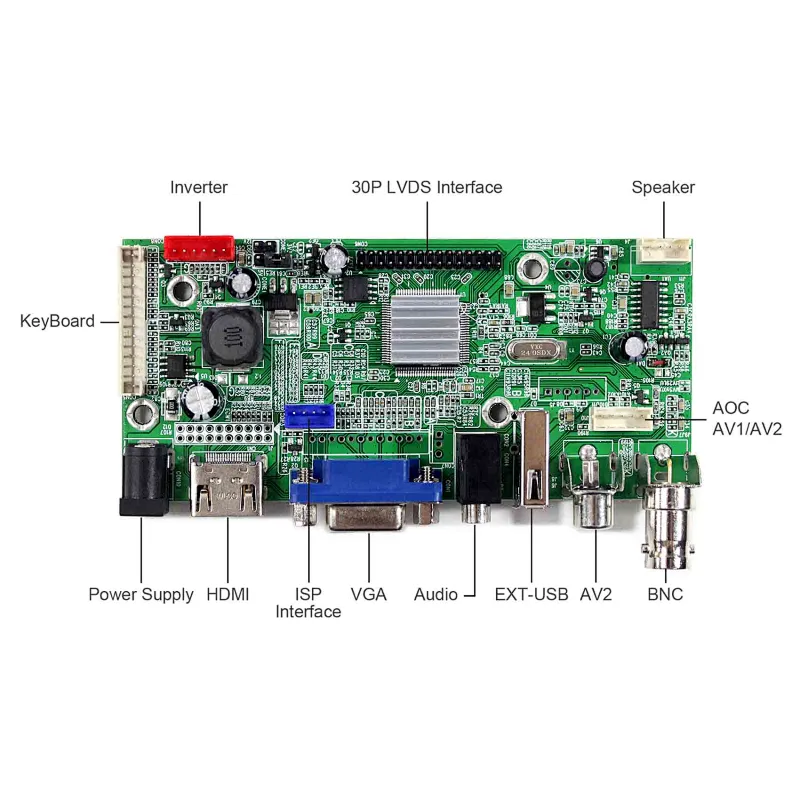

Video Input: HDMI VGA AV1 AV2 USB

Audio Input: HDMI PC-Audio

Audio Output: Speaker Connector

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 118mm x 54mm x 17mm

Compatible Work With:

21.5inch  1920x1080

LM215WF3-SLA1

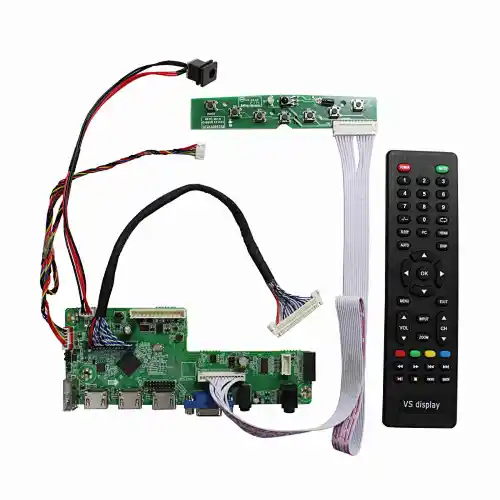

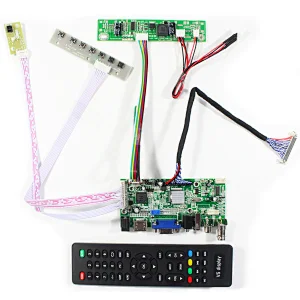

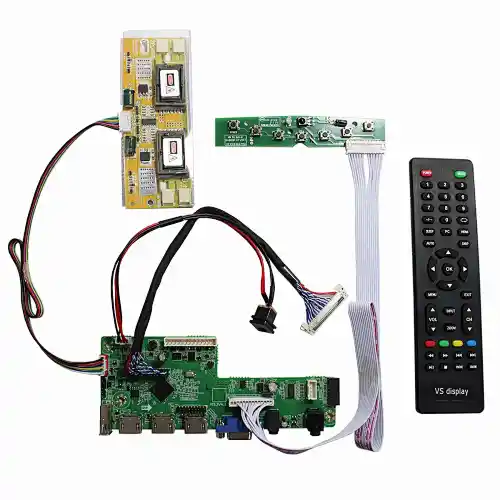

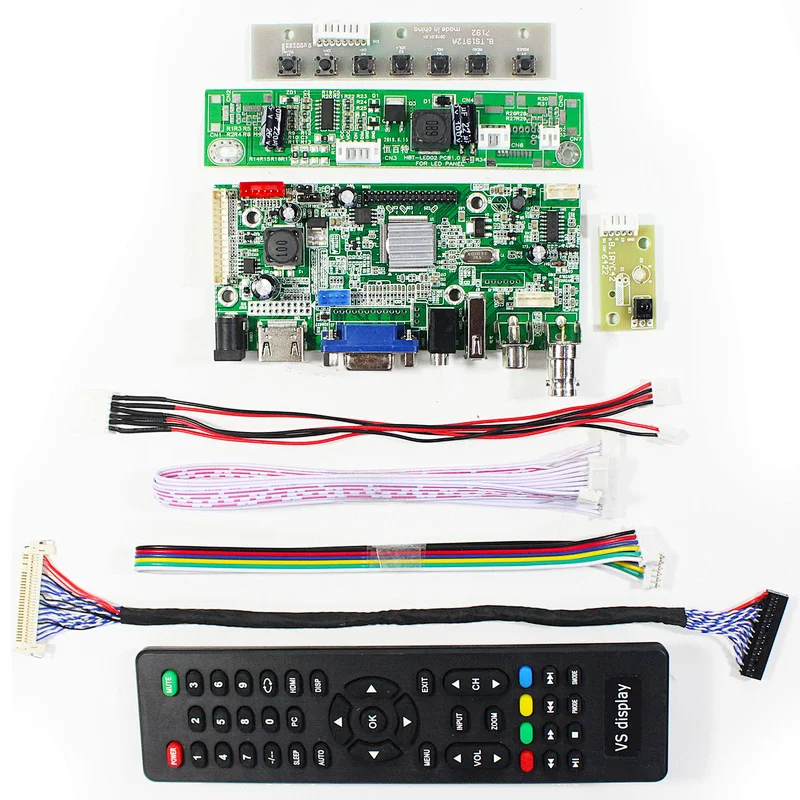

Packing list :

1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1

1× LVDS Cable

1× Backlight Cable

1× Keyboard With Cable

1× Remote Control (Battery Not included)
