3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel
3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel

3 HDMI VGA USB Audio LCD Controller Board for 1280x1024 LVDS Interface LCD Screen 3 hdmi controller board USB Audio lcd board lcd controller board for lvds tft lcd usb board for 1280x1024 lcd panel

Model NO.
K002878 VS-M5V4.1 HDMI for 17~19inch 1280x1024
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

LCD Controller Board:

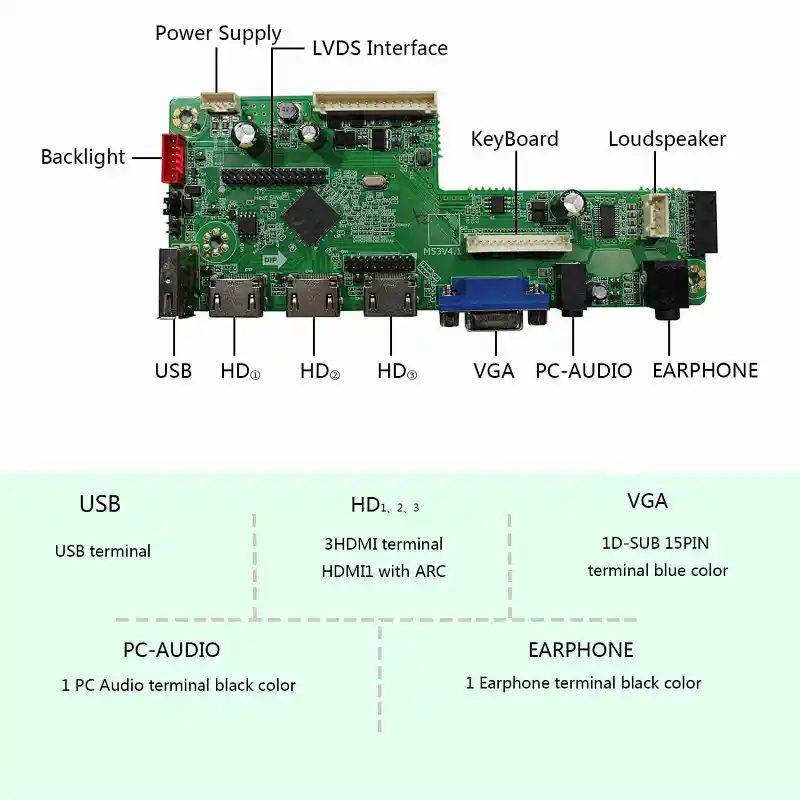

3X HDMI VGA USB Audio LCD Controller Board for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI USB VGA

Audio Input: HDMI

Audio Output: Speaker Earphone

OSD: Brightness Contrast Auto Language And So On

Language: English Chinese French German Spanish Italian Russian Portuguese

Board Size: 160mm x 63mm x 17mm

Compatible Work With:

17inch 1280x1024:

M170EG01 M170EG02 M170EN01 M170EN04 M170EN05

M170EN06 LTM170EU LTM170EH LTM170E5 LTM170E6 HSD170ME13

19inch 1280x1024:

LM190E02 LM190E03 LM190E08 M190E5 G190EG01

M190EG02 M190EG03 M190EN01 HSD190MEN4

HSD190ME11 HSD190ME12 HSD190ME13 LTM190EX

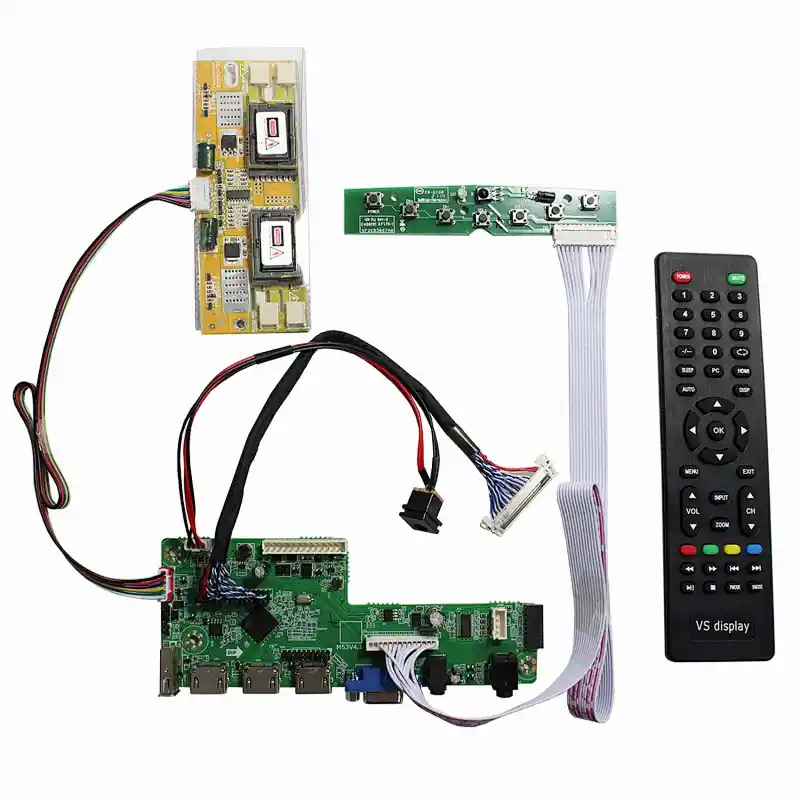

Packing list :

1× HDMI USB VGA AUDIO LCD Board VS-M53V4.1

1× Inverter Board

1× LVDS Cable

1× Power Cable

1× Keyboard With Cable

1× Remote Control （Battery Not Included）
