HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd
HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd
HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd
HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd
HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd
HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd
HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd
HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd
HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd

HDMI Type-C USBx2 AUDIO LCD Board Work for 1920x1080 LVDS TFT LCD Screen lvds lcd controller board USB LCD Board HDMI Type-C Board USB Board for 1920x1080 lcd

Model NO.
K002697 VS-JRY-W3AFHD-DV1 Type-c for HR215WU1 MV238FHM MT207FHM
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

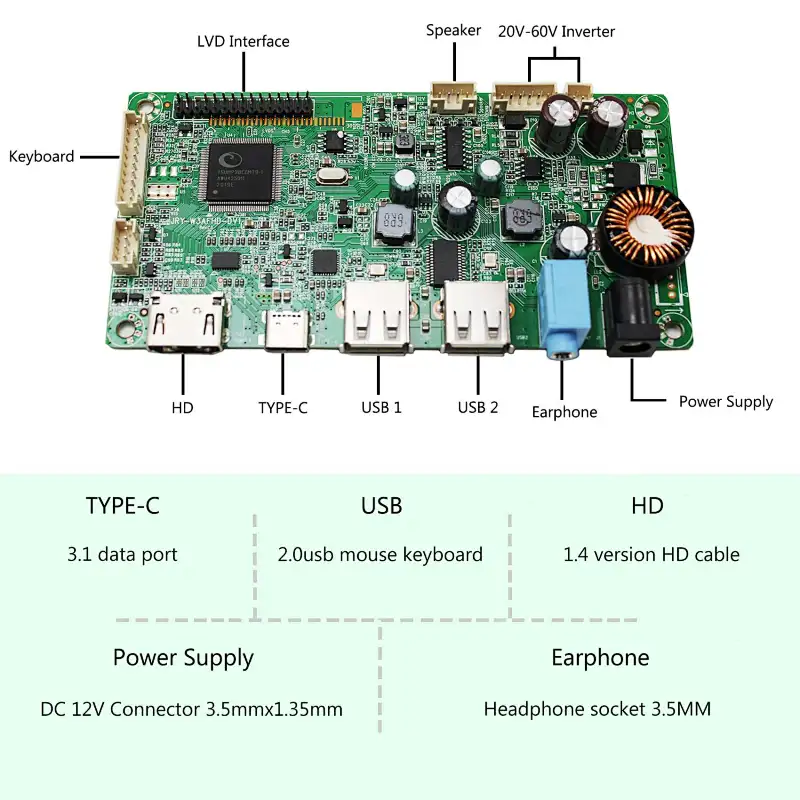

  • LCD Controller Board:

    HDMI Type-C USBx2 AUDIO LCD Board Work for LVDS Interface LCD Screen

    Input Power Adapter: 12Vdc（+/-0.5v） More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <1W

    Video Input: HDMI Type-C USBx2

    Audio Input: HDMI Type-C

    Audio Output: Speaker Connector headset

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

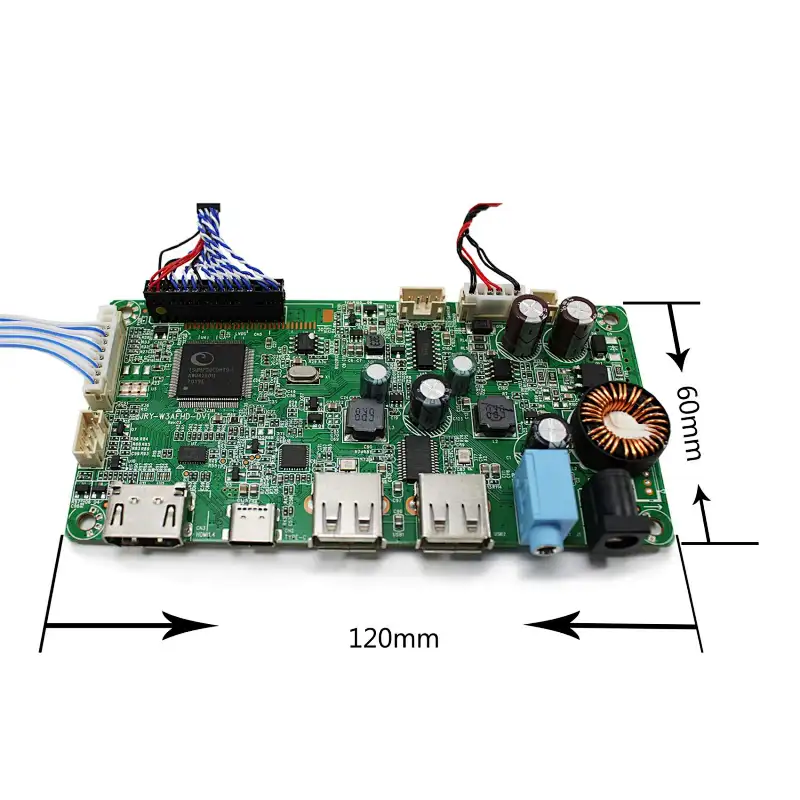

    Board Size: 120mm x 60mm x 17mm

  • Compatible Work With:

    21.5inch 1920x1080:

    HM215WU1-500 M215HGE-L10 M215HGE-L21  M215HW01 VB M215HW02 V0 M215HW03 V1 M215HW03 V2 M215HTN01.1 M215HGE-L21 LM215WF3-SLK1 LM215WF3-SLC1 T215HVN01.0 M215HW02 V0

    23inch 1920x1080:

    LM230WF5-TLF1 LM230WF5-TLF2 LM230WF5-TLF4 LM230WF5-TLE1 LM230WF5-TLH1

    23.6inch 1920x1080 :

    M236HGE-L10 M236HGE-L20

    27inch 1920x1080:

    M270HW02 M270HVN02.0

  • Packing list :

    1× HDMI Type-C USBx2 AUDIO LCD Board Work for LVDS Interface LCD Screen

    1× LVDS Cable

    1× Backlight Cable

    1× Keyboard With Cable
