Model NO.
K002193 VS-MST9U25Q1-EDP For 31.5inch 4K 3840×2160 LM315WR1-SSA1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

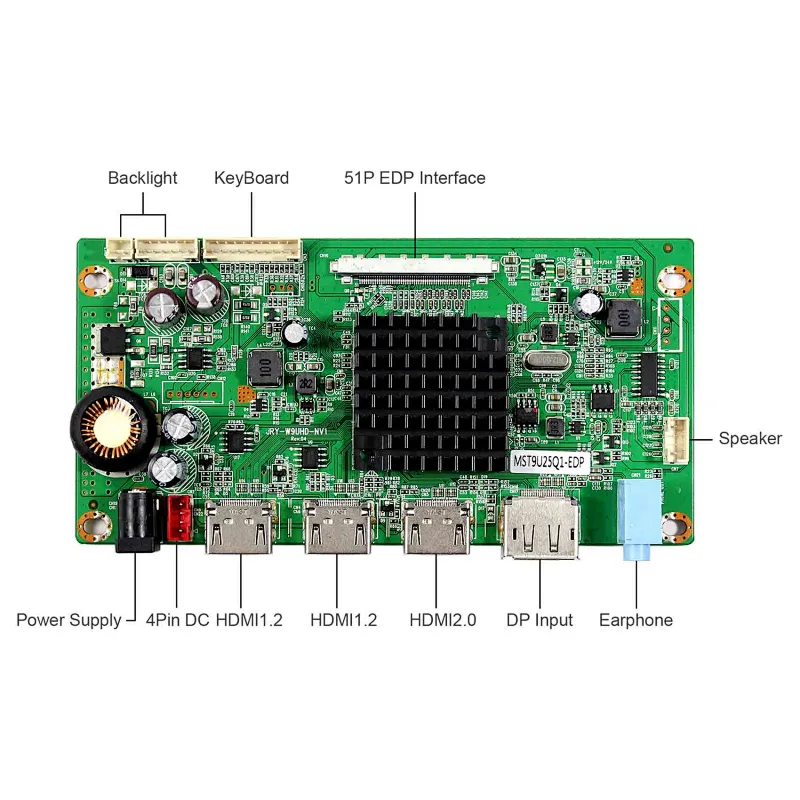

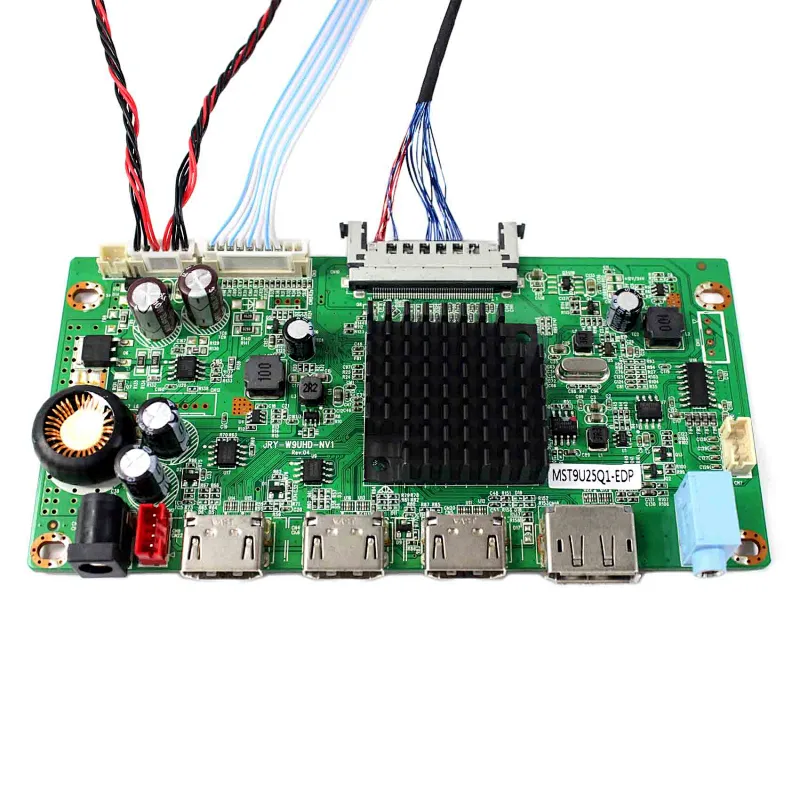

LCD Controller Board:

HDMI DP LCD Controller Board Work for 4K eDP LCD Screen

Input Power Adapter: 12Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI1(1.4) HDMI2(1.4) HDMI3(2.0) DP(1.2)

Audio Output: Earphone Speaker

OSD: Brightness Contrast VOL+ VOL- Language And So On

Language: English French German Spanish Italian And So On

Board Size: 142mm x 70mm x 18mm

Compatible Work With:

31.5inch 3840x2160 4K LCD Screen

LM315WR1-SSA1  LM315WR1-SSB1  LM315WR1-SSB2

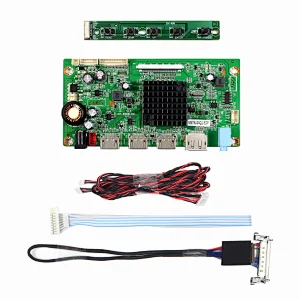

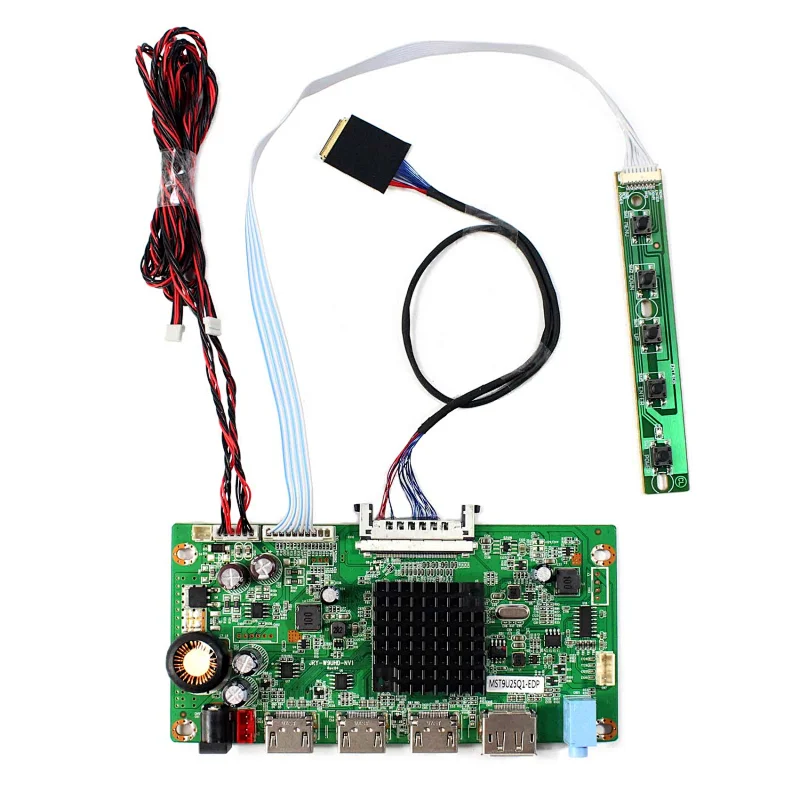

Packing list :

1× HDMI DP LCD Controller VS-MST9U25Q1-EDP

1× Signal Cable

1× Backlight Cable

1× Keyboard With Cable
