HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd
HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd
HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd
HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd
HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd
HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd
HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd
HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd
HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd

HDMI DP VGA AUDIO LCD Board Work for 1440x900 LVDS Interface TFT LCD Screen DP LCD Board HDMI DP LCD Board DP VGA LCD Board for 1440x900 lcd

Model NO.
K003009 ME.RT2525.EB818+FIX30P for 1440x900
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

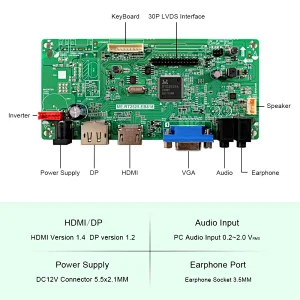

LCD Controller Board:

HD DP VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD DP VGA

Audio Input: HD

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

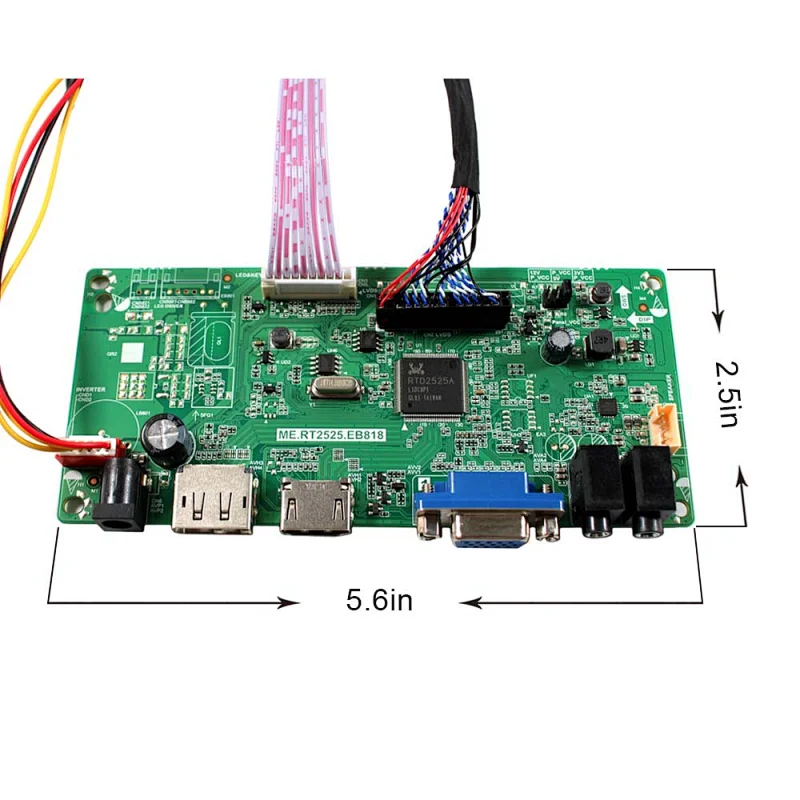

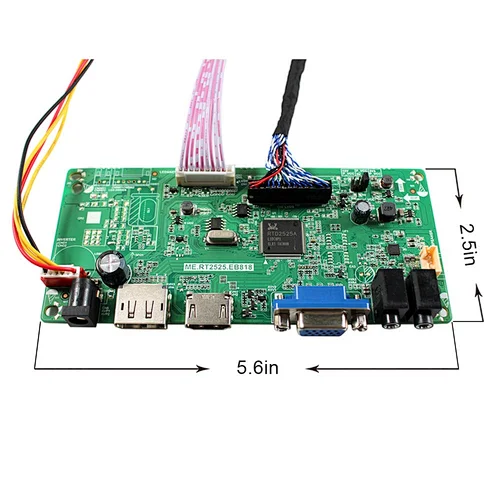

Board Size: 139mm x60mm x 17mm

Compatible Work With:

15.4inch 1440x900

CLAA154WP05 B154PW01V.1 N154C3 N154C1-L01 N154C1-L02 LP154WP1 LTN154BT05

17inch 1440x900

B170PW03 B170PW06 LP171WP4 LTN170X2 B170PW01

LTN170WX LP171WX2 LTN170BT08 LP171WPA

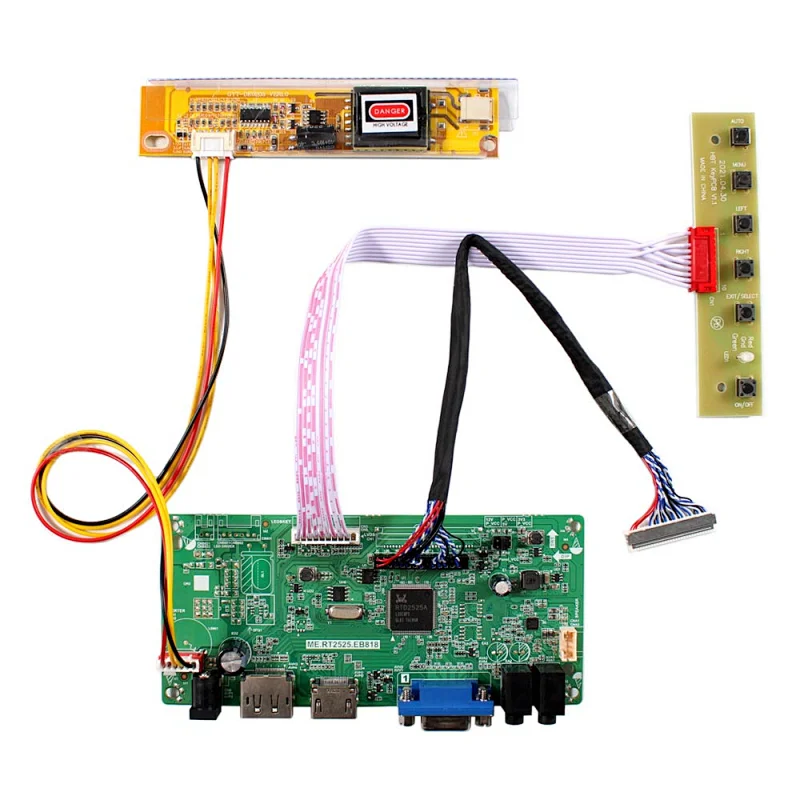

Packing list :

1× HD DP VGA LCD Controller Board RT2525.EB818

1× Converter Board

1× LVDS Cable

1× Keyboard With Cable
