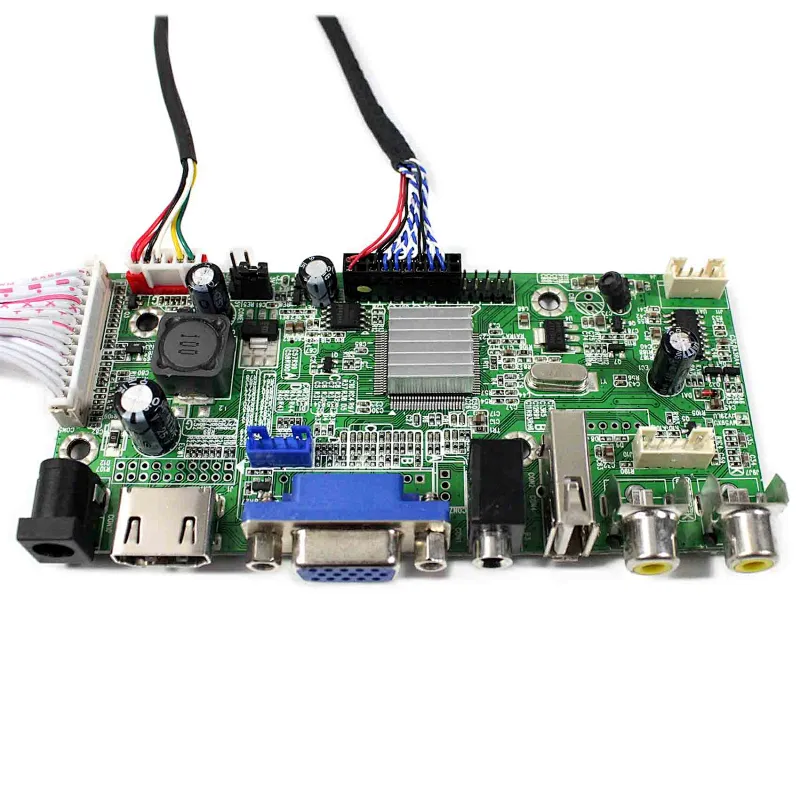

  5. HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
Print This Page
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd

HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 for 12.1inch LQ121K1LG52 1280x800 TFT LCD Screen tft lcd color controller board HDMI USB Controller board VS-V59AV-V1 Controller board VGA USB Controller board for 12.1inch lcd

Model NO.
K000923 VS-V59AV-V1 for LQ121K1LG52
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:

    HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen

    Input Power Adapter: 12Vdc More than 2A.

    Come In Standby Model When Not Input Signal

    Standby Model <1W

    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2

    USB Support Video

    AV1 AV2 Compatible With PAL And NTSC

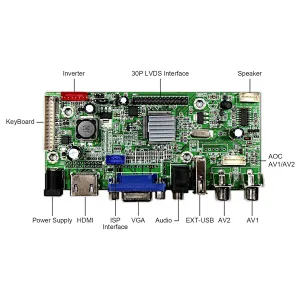

    Video Input: HDMI VGA AV1 AV2 USB

    Audio Input: HDMI PC-Audio

    Audio Output: Speaker Connector

    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

    OSD: Brightness Contrast Auto Language And So On

    Language: English French German Spanish Italian And So On

    Board Size: 118mm x 54mm x 17mm

  • Compatible Work With:

    12.1inch 1280x800

    LQ121K1LG52

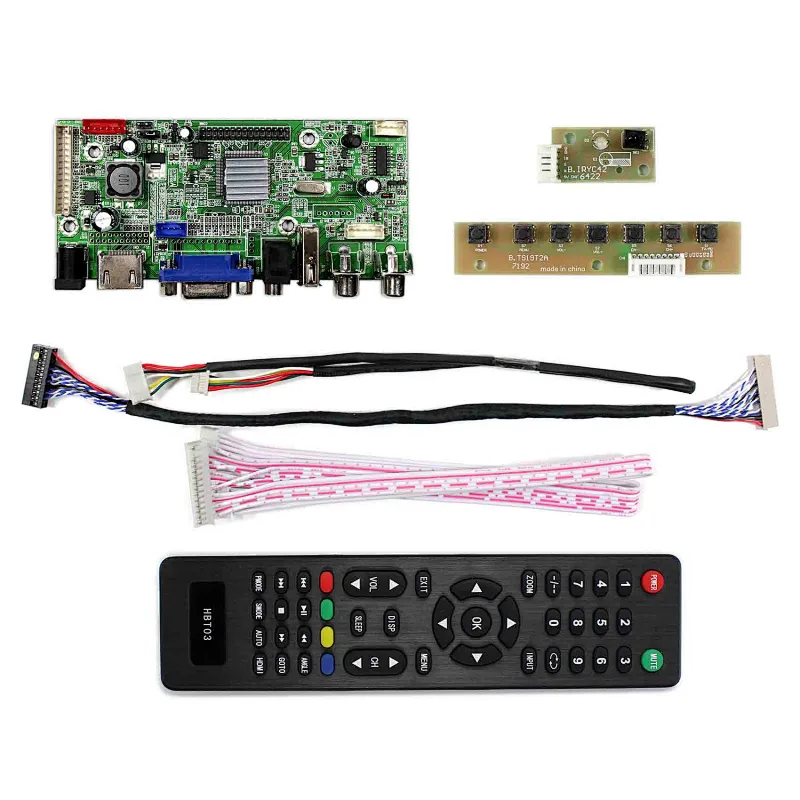

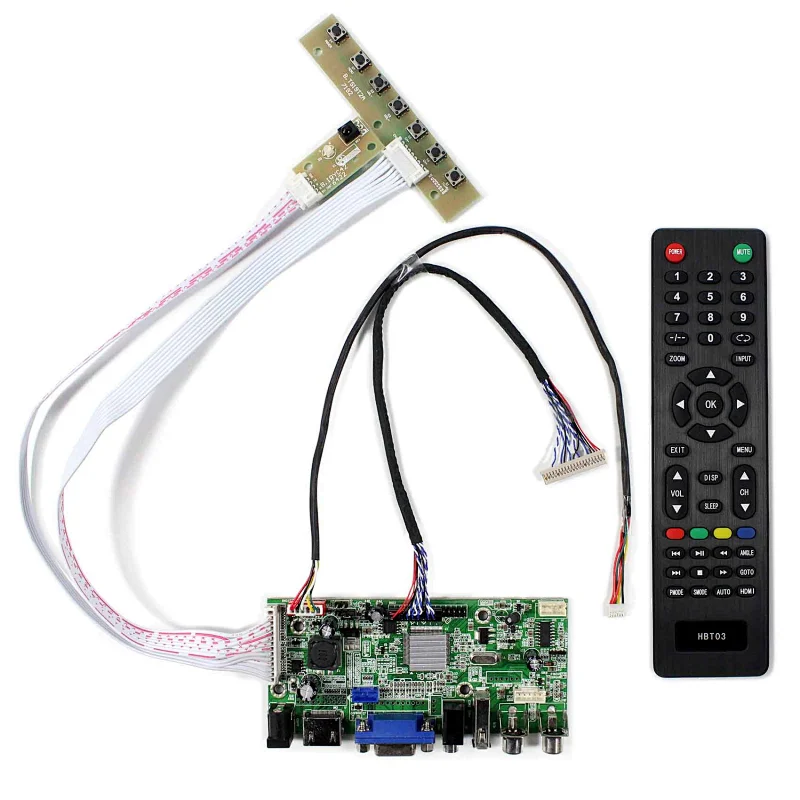

  • Packing list :

    1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1

    1× LVDS Cable

    1× Backlight Cable

    1× Keyboard With Cable

    1× Remote Control(Battery Not included)
