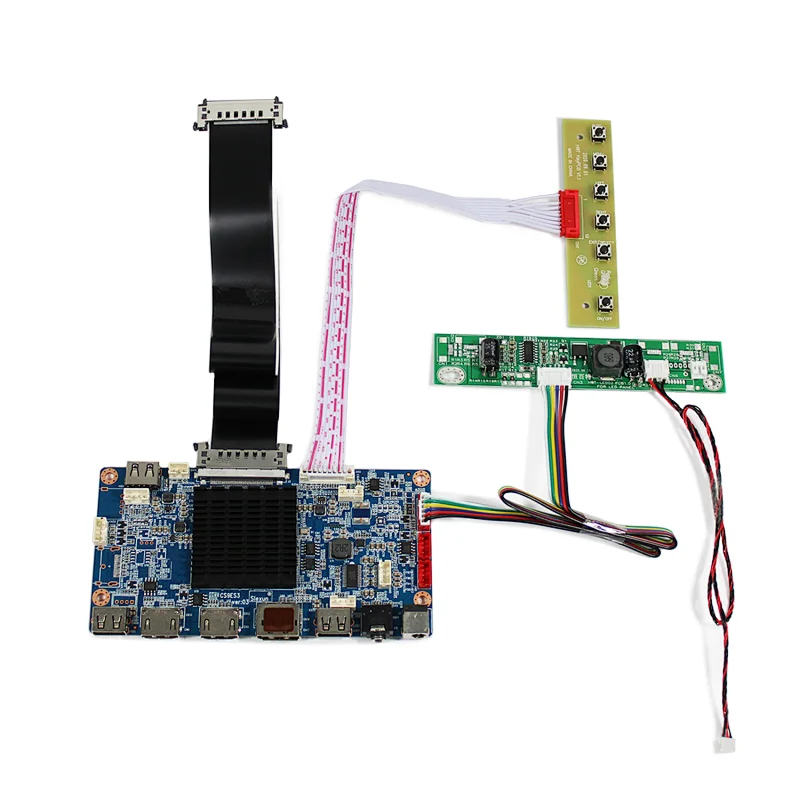

HDMI DP LCD Controller Board VS-CS9ES3-4K-V work for 28inch 3840x2160 M280DGJ ttt lcd screen dp lcd controller board hdmi dp controller board for 28inch lcd DP Controller board for 3840x2160 lcd

HDMI DP LCD Board Work for 8-lanes V-by-One/eDP(HBR) 10-bit Interface LCD Screen

Input Power Adapter: 12Vdc/19Vdc More than 3A.

Come In Standby Model When Not Input Signal

Standby Model <0.5W

HD-MI Port Support Transform Audio Compatible With HDMI 1.4/2.0，HDCP 1.2 DP1.2

Video Input: 1x HD-MI1.4 Max 3840x2160 30Hz

           1x HD-MI2.0 Max 3840x2160 60Hz

1x DP1.2a  Max 3840x2160 60Hz

Support 3x Input source to PIP(Picture inPicture)

USB Support Upgrade Firmware and Touch interface

Audio Input: HDMI PC-Audio

Audio Output: Earphone Speaker Connector

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

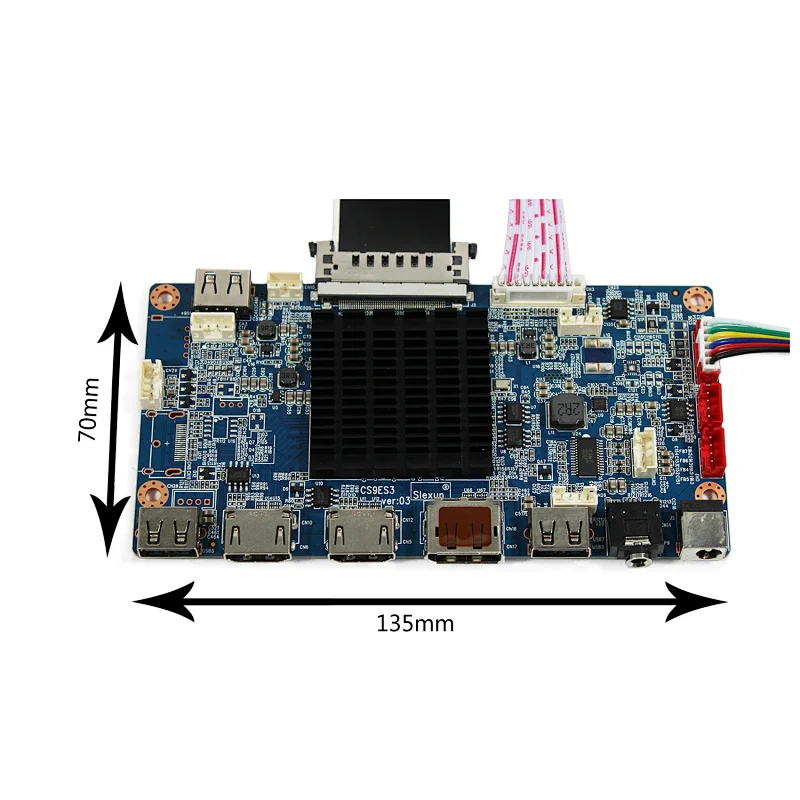

Board Size: 135mm x 70mm x 18mm

28inch 3840x2160

M280DGJ
