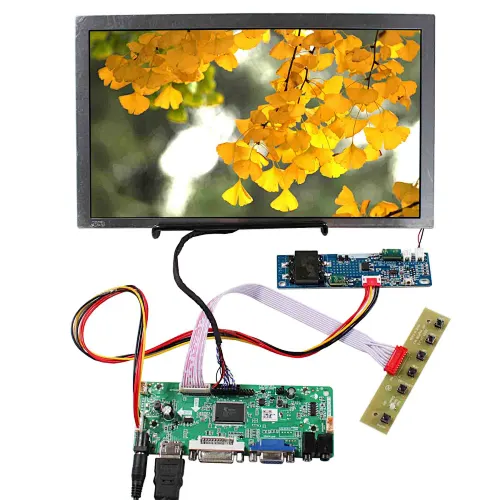

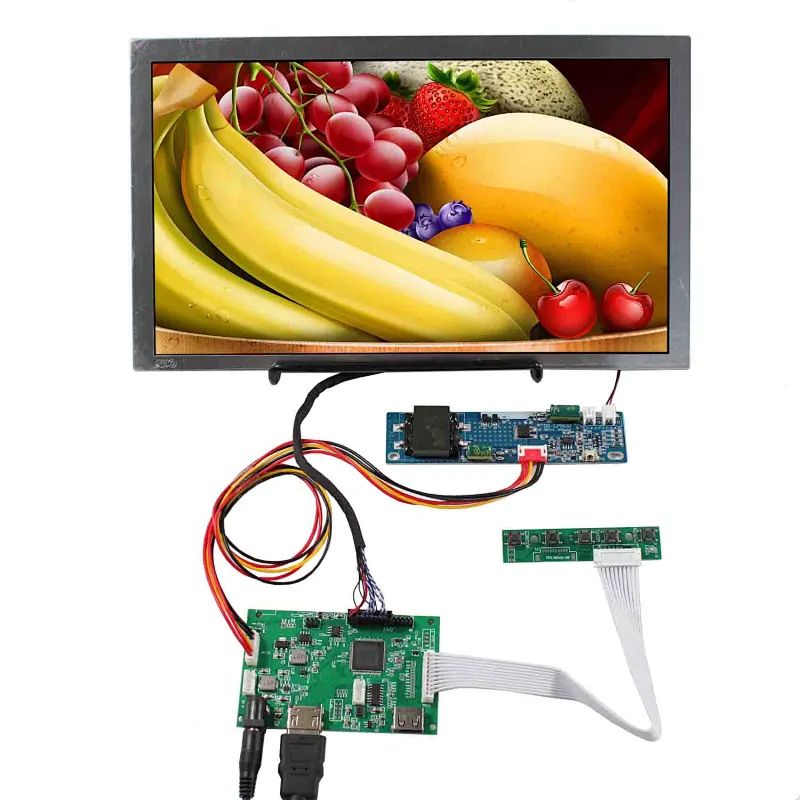

11.6" A116XW02 -1000 1366x768 LCD Screen with HD-MI.USB lcd controller board

LCD Controller Board:

HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 5A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel： 3.3V 5V 12V (Jumper optional)

Video Input: HD-MI USB

HD-MI: Support HD-MI 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

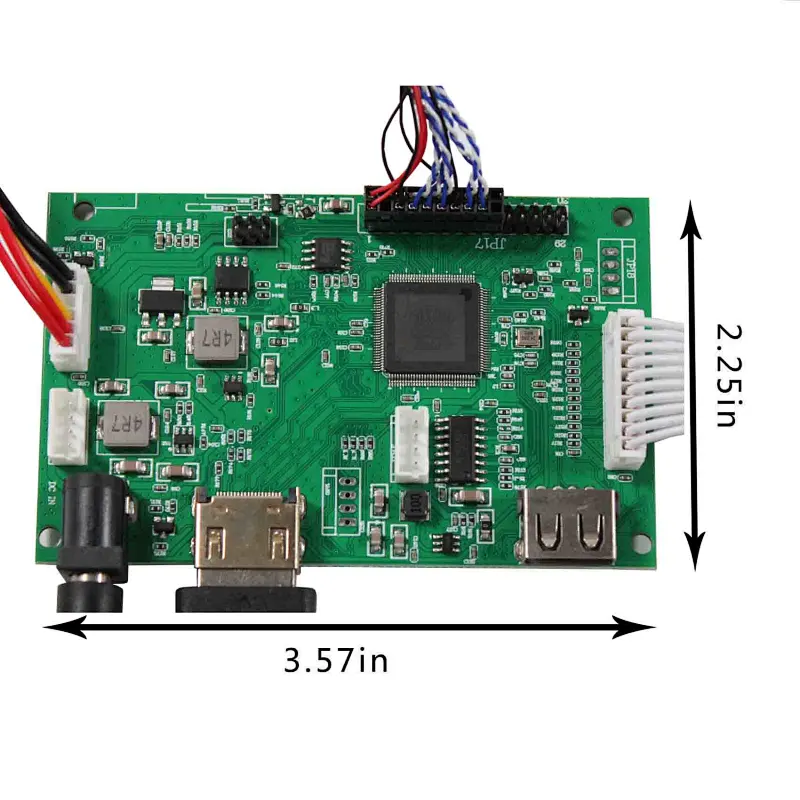

Board Size: 90.7mm x 57.3mm x 14mm

11.6"A116XW02 -1000 1366x768 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1366X（RGB)×768

Outline Size 282.2×168×13mm (H×V×D)

Display Area 256.125× 144mm (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 450:1 (Typ.) (TM)

Viewing Angle 60/60/35/35 (Typ.)(CR≥10

Signal Interface Parallel LVDS (1 ch, 8-bit) ,30 pins ,

Backlight WLED

Input Voltage 3.3V (Typ.)

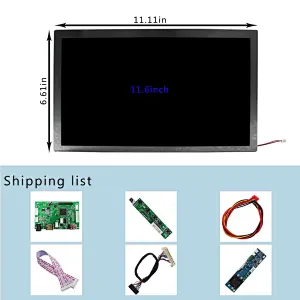

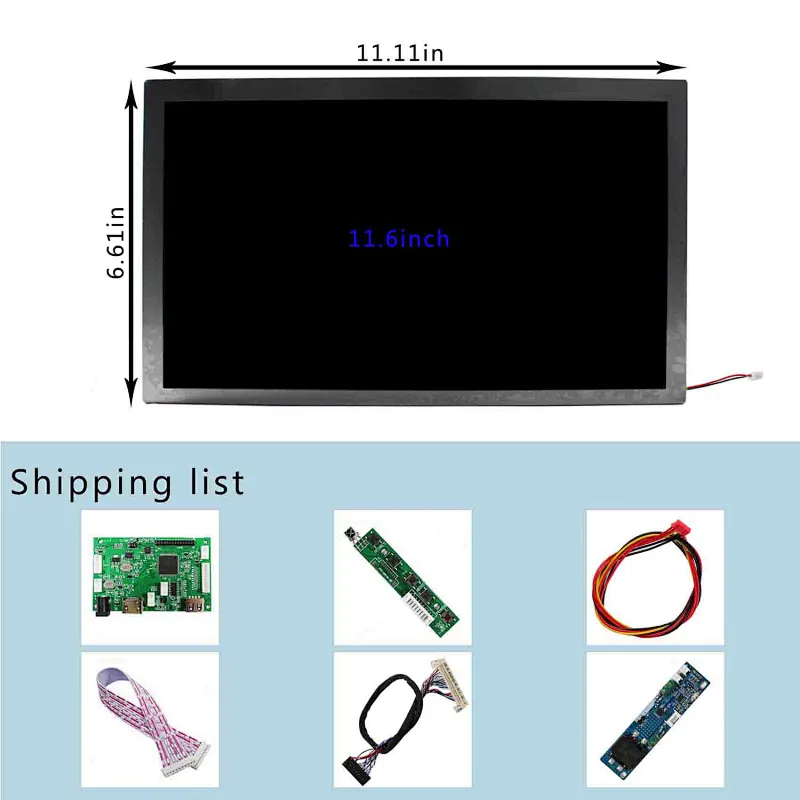

Packing list :

1× HD-MI USB LCD Board for 30Pin VS-TY2660HU-823

1× 11.6inch A116XW02-1000 1366X768 LCD Screen

1× Inverter Board

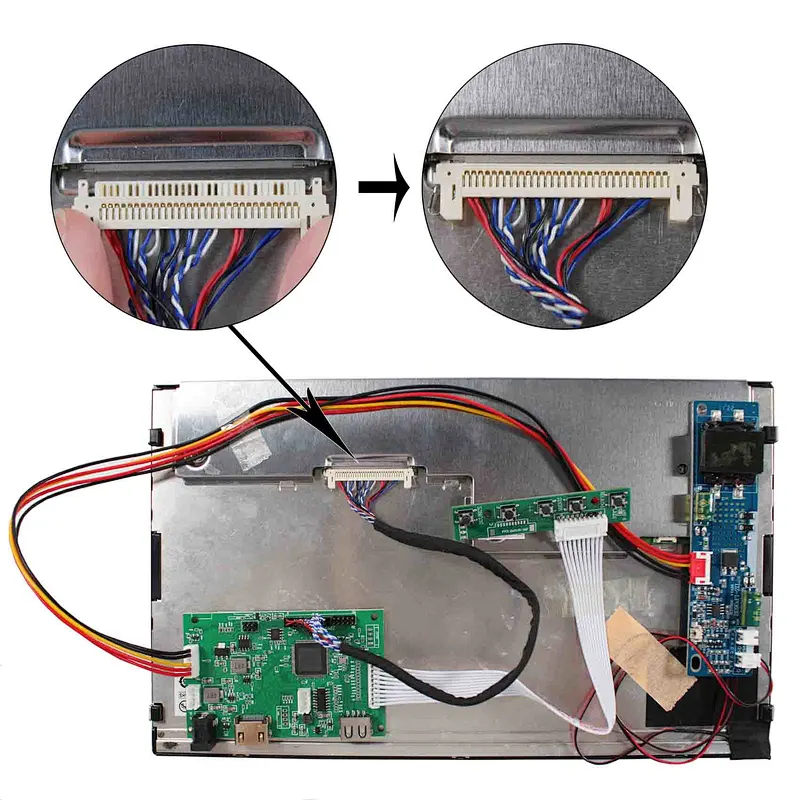

1× LVDS Cable

1× Keyboard With Cable
