12.1" AA121TD02-1000 1280X800 LCD Screen with HD-MI.USB controller board

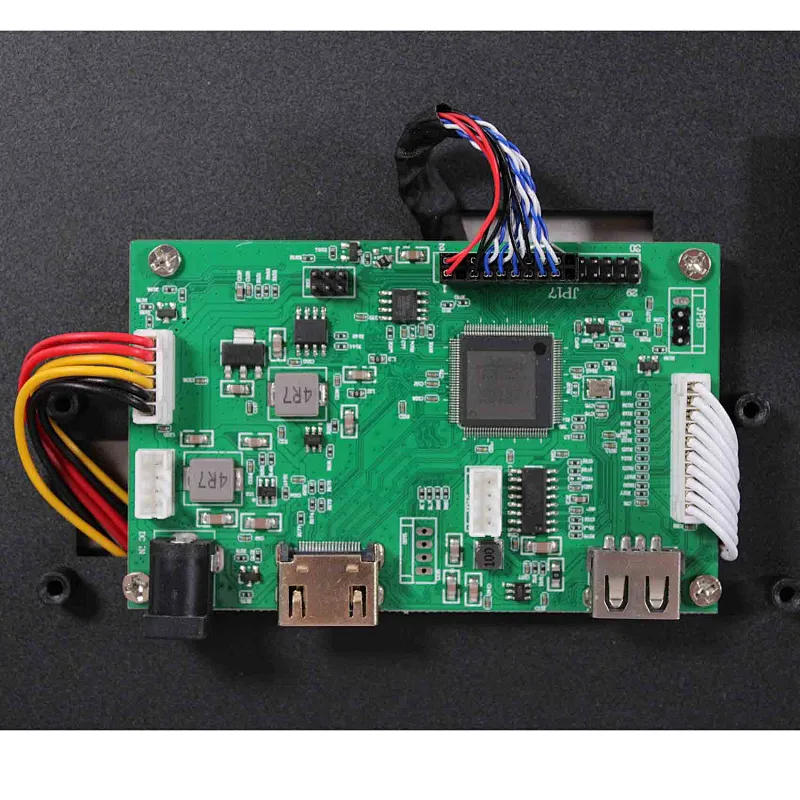

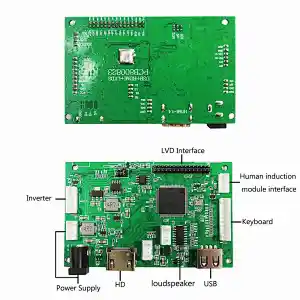

LCD Controller Board:

HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel：3.3V 5V 12V (Jumper optional)

Video Input: HD-MI USB

HDMI: Support HDMI 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 90mm x 56mm x 14mm

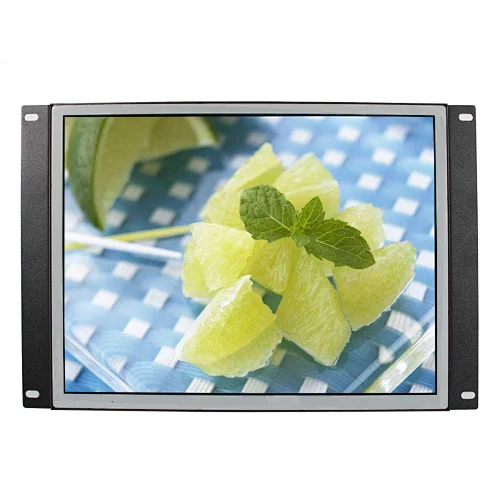

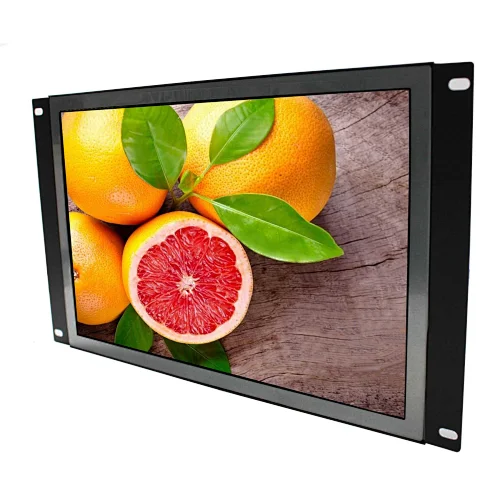

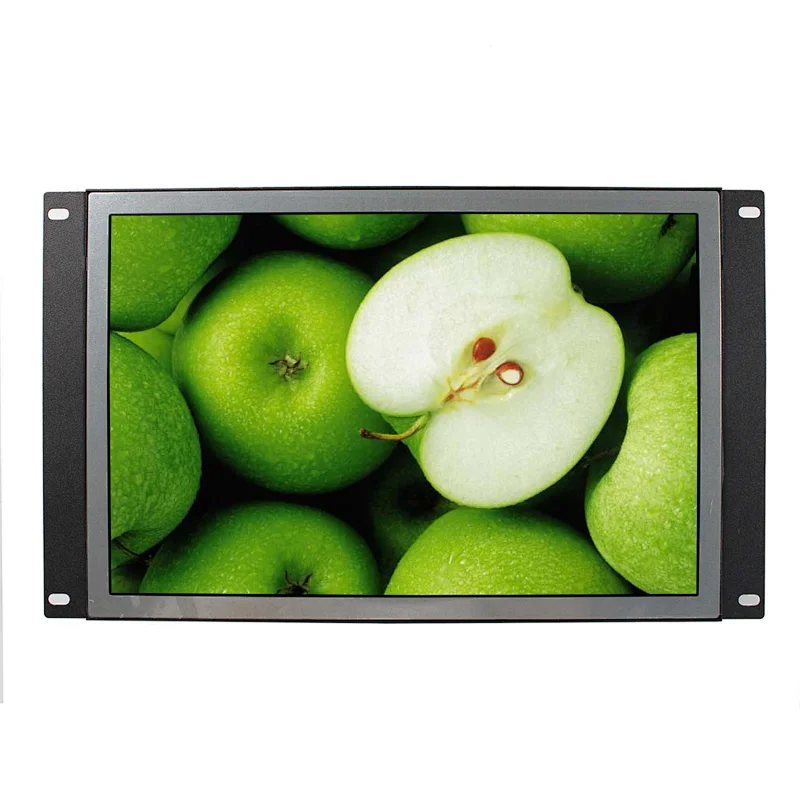

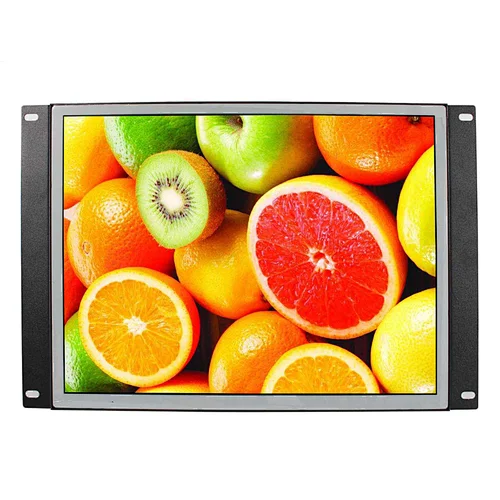

12.1"AA121TD02-1000 1280X800 LCD Screen:

Display Mode TN, Normally White, Transmissive

Resolution 1280RGB)×800

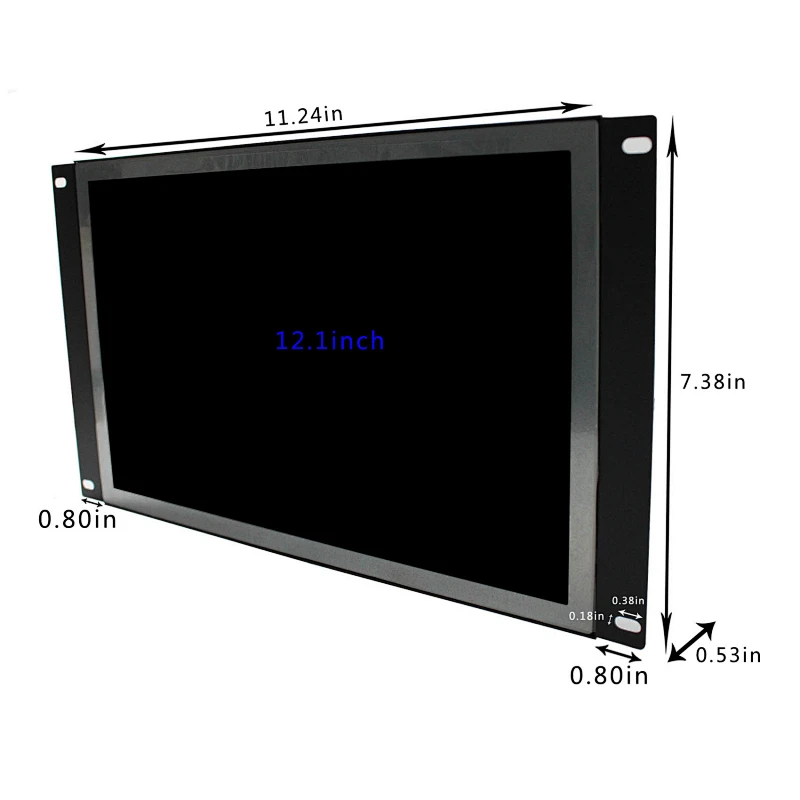

Outline Size 283× 185.1×10(H×V×D)

Display Area 216.12 × 163.2 (H×V)

Brightness 1000 cd/m²(Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 80/80/80/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list :

1× 12.1"1280x800 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
