12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board
12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board

12.1 inch 1024X768 TFT-LCD WLED Backlight Screen With HDMI LCD Controller Board 12.1 inch 1024X768 1024x768 lcd hdmi lcd controller board

Model NO.
K002748-SP VS-N5V3.1H+VS121T-001A
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

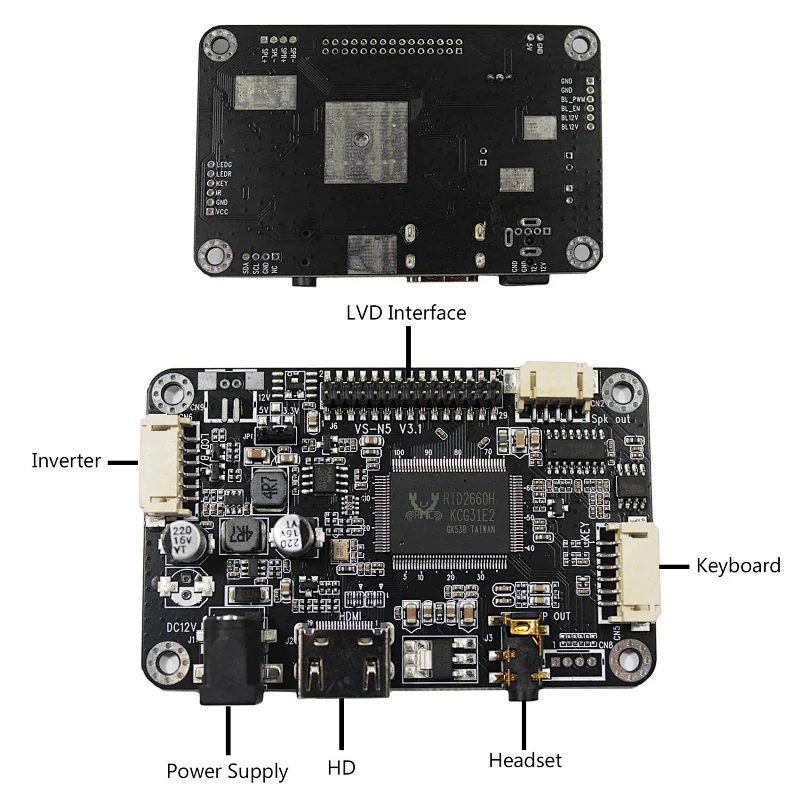

LCD Controller Board:
HDMI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

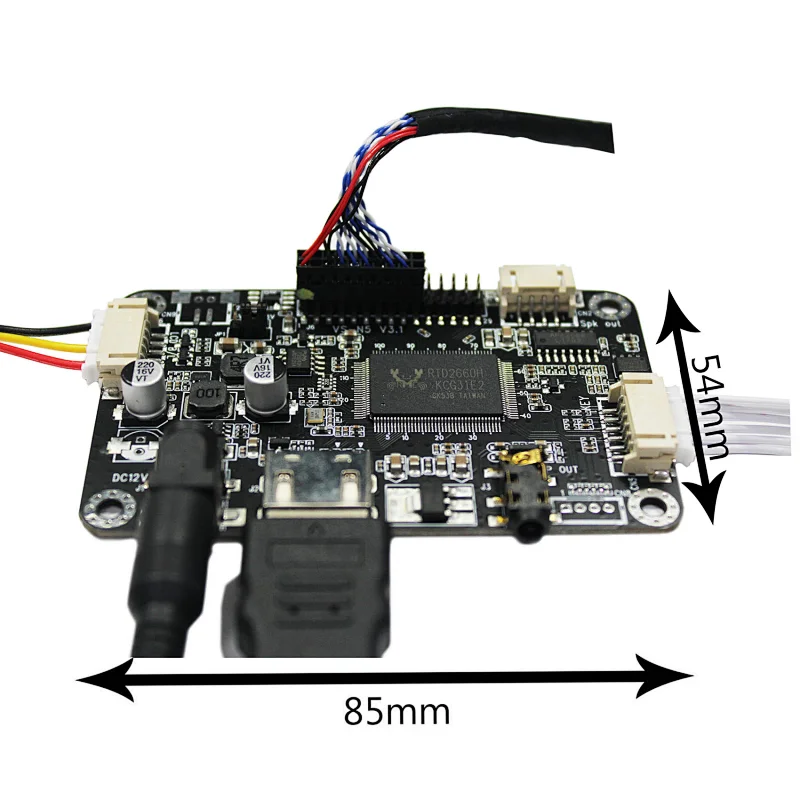

Board Size: 85mm x 54mm x 14mm

12.1"VS121T-001A 1024X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×768

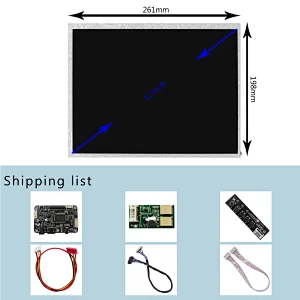

Outline Size 261× 198×5 (H×V×D)
Display Area 246 × 184.5 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 45/45/15/45 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
Backlight WLED
Input Voltage  3.3V (Typ.)

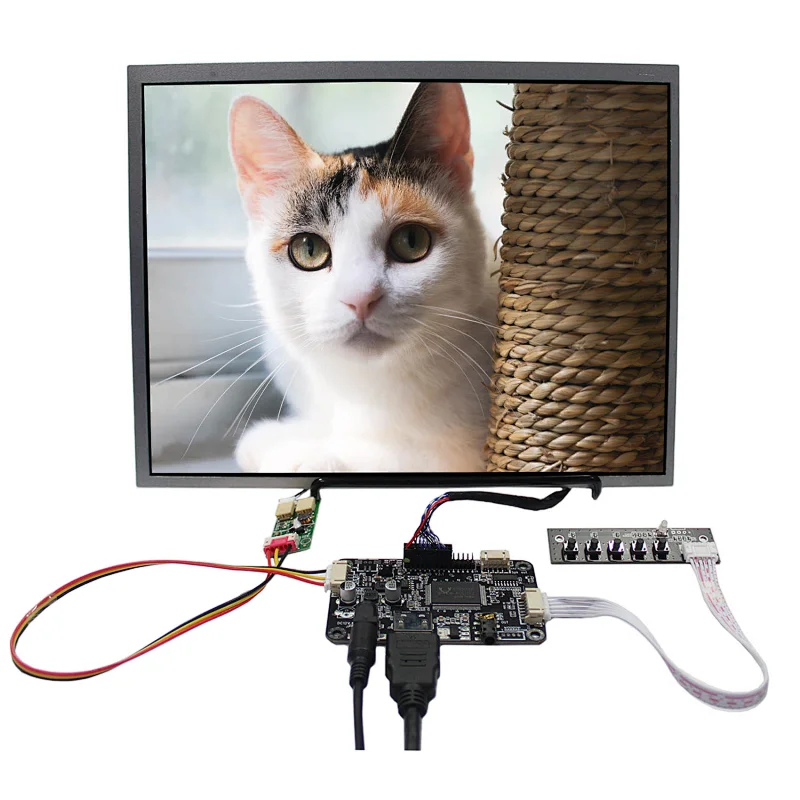

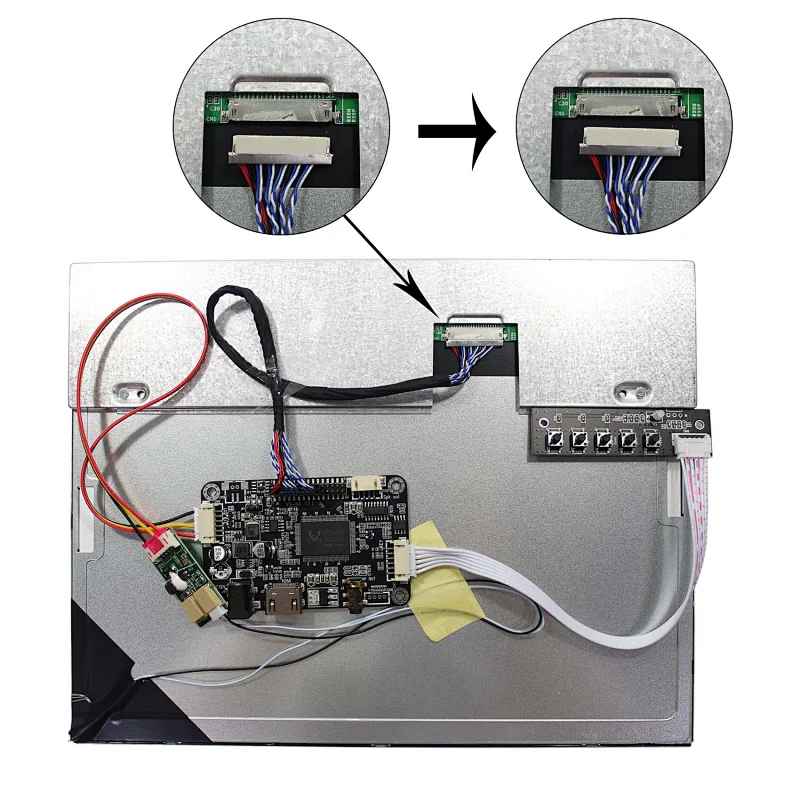

Packing list :
1× HDMI Audio LCD Controller Board
1×12.1" VS121T-001A 1024X768 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
