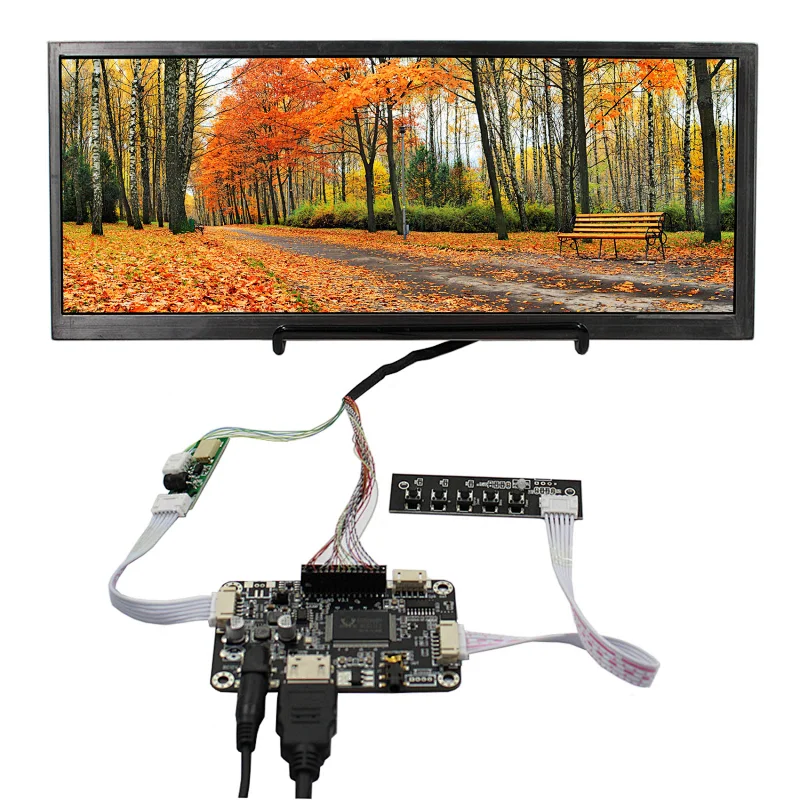

12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board
12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board

12.3inch HSD123KPW1 1920X720 IPS TFT-LCD Screen with HD-MI Audio LCD Controller Board

Model NO.
K002824-VS-N5 V3+HSD123KPW1-A30 1920X720
Minimum order quantity:
1
Quantity:
LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

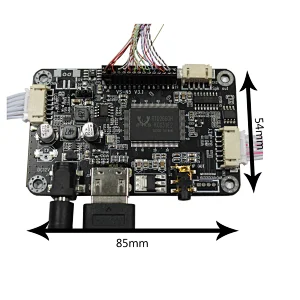

Board Size: 85mm x 54mm x 14mm

12.3"HSD123KPW2-D10  1920X720 LCD Screen:
Display Mode  IPS Pro, Normally Black, Transmissive
Resolution 1920RGB)×720

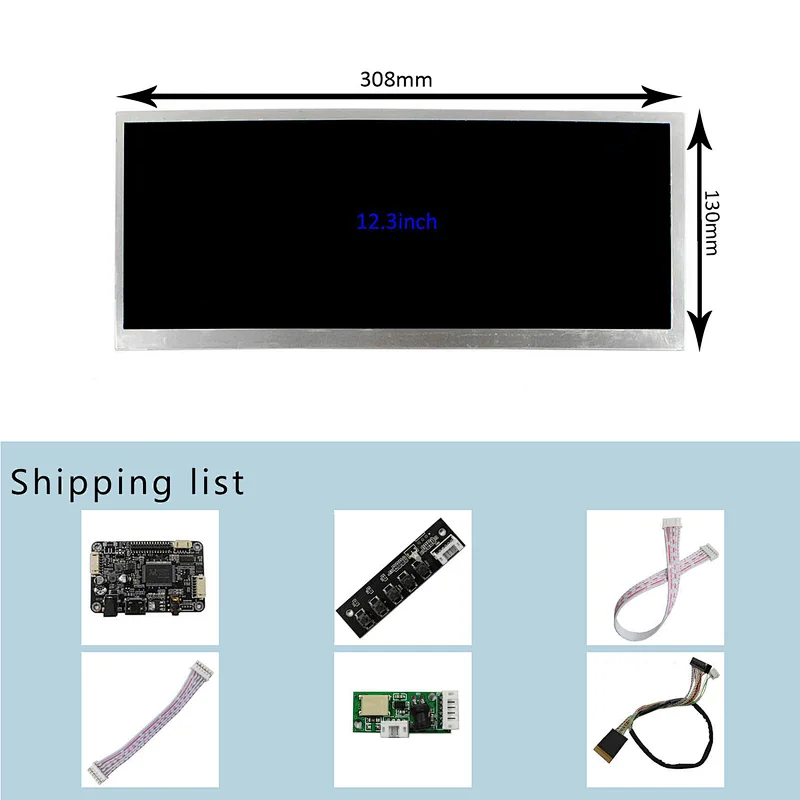

Outline Size 308.1 × 130×15.6 (H×V×D)
Display Area 292.032 × 109.512 (H×V)
Brightness 850 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit) , Connector , 50 pins
Backlight  WLED
Input Voltage  3.3V (Typ.)

Packing list:
1×HD-MI Audio LCD Controller Board
1×12.3inchHSD123KPW1 1920X720 LCD Screen
1× Inverter Board

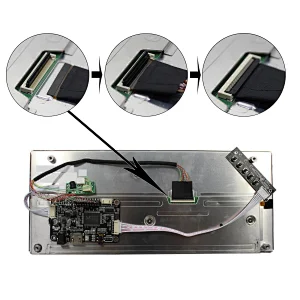

1× LVDS Cable
1× Keyboard With Cable
