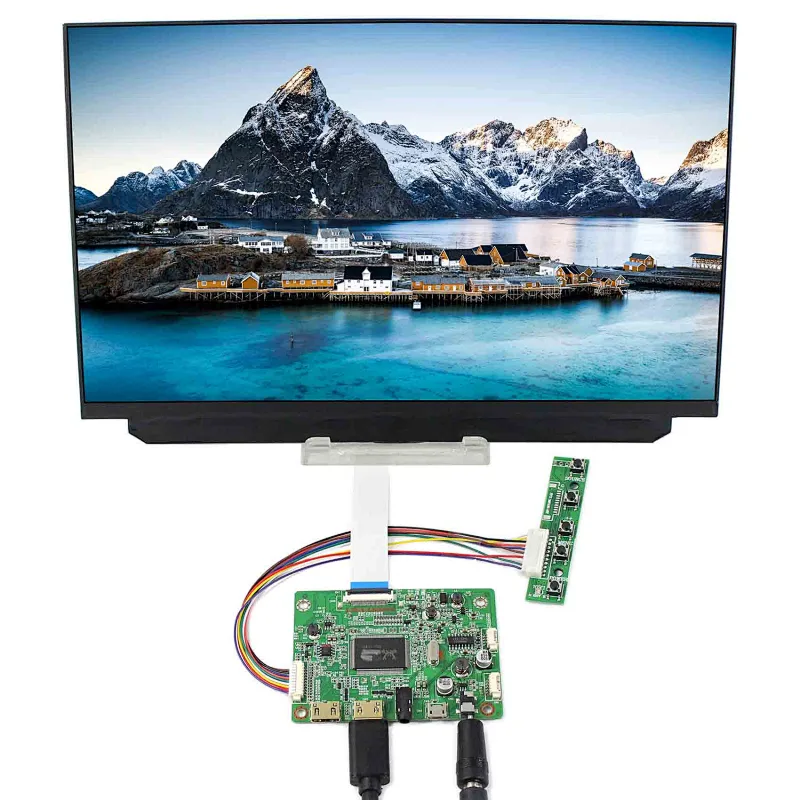

12.5" 1920x1080 IPS LCD Screen B125HAN02 with Mini HDM I LCD Controller Board 12.5inch 1920x1080 B125HAN02 1920x1080 B125HAN02 B125HAN02 ips lcd

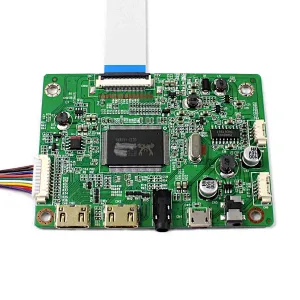

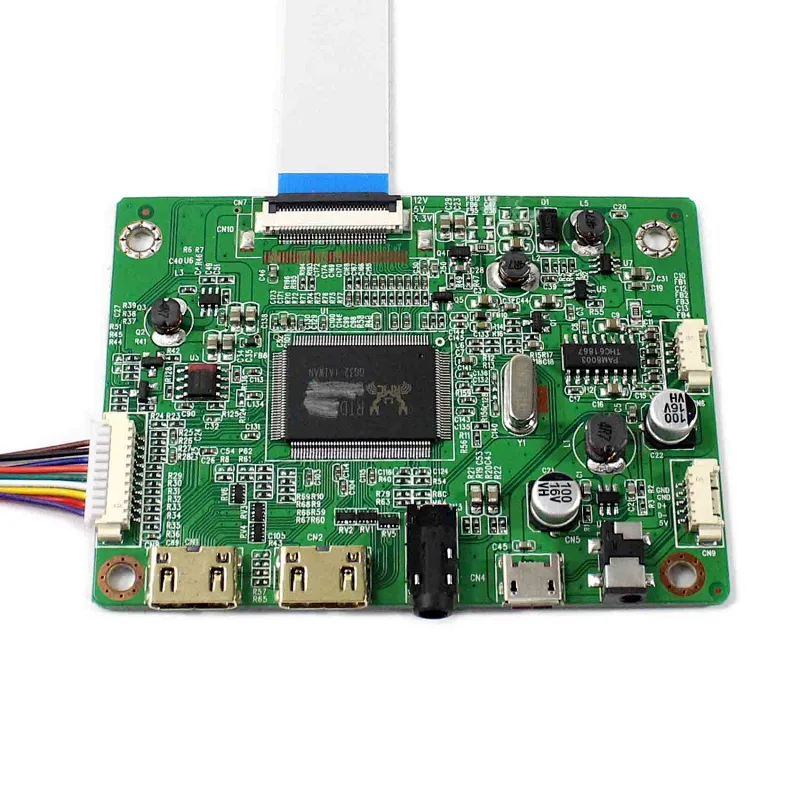

LCD Controller Board:

HDMI Board Work for 30Pin EDP LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Audio Input: 2HDMI Mini

Audio Output: Earphone

OSD: Brightness Contrast VOL+ VOL- Language And So On

Language: English French German Spanish Italian And So On

Board Size:82mm x 60mm x 5mm

12.5"B125HAN02.2 1920X1080 LCD Screen:

Display Mode  AHAV, Normally Black, Transmissive

Resolution 1920RGB)×1080

Outline Size 282.4 ×179.32×2.5(H×V×D)

Display Area 276.48× 155.52 (H×V)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 700:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface  eDP (2 Lanes) , 30 pins , Connector

Backlight  WLED

Input Voltage  3.3V (Typ.)

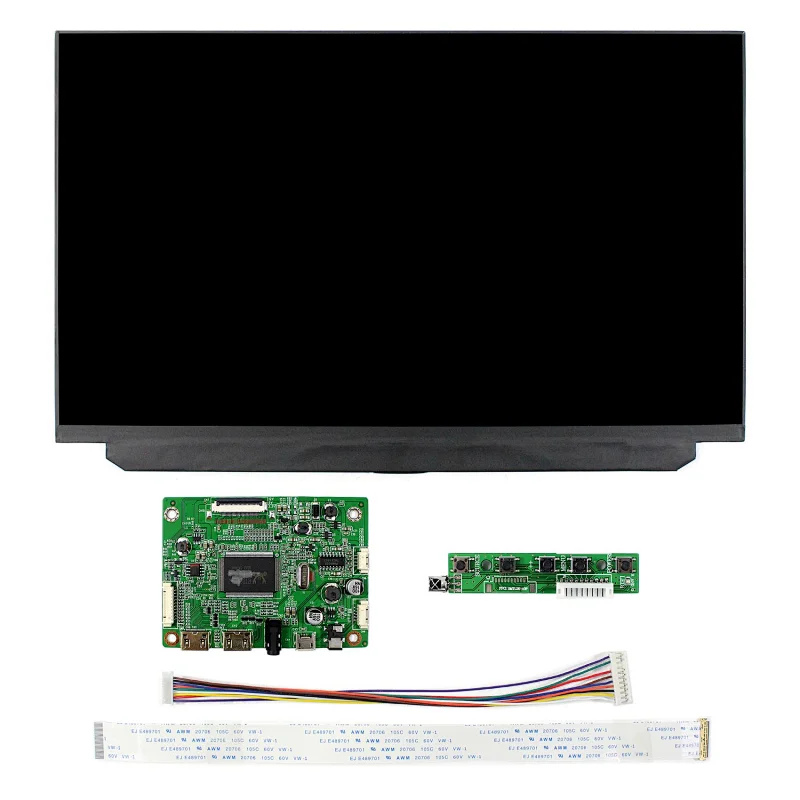

Packing list :

1× 2 HDMI Mini LCD Controller VS-RTD2556HM-V1

1× 12.5inch 1920X1080 LCD Screen

1× Signal Cable

1× Keyboard With Cable
