14 inch 1366X768 LP140WH1 40P LVDS TFT LCD Screen with HDMI USB LCD Controller Board

14 inch 1366X768 LP140WH1 40P LVDS TFT LCD Screen with HDMI USB LCD Controller Board

Model NO.: K002727-VS-TY2660HU-823+14inch 1366x768 LTN140AT02 LTN140AT07
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm

14"1366X768 LED Backlight LCD Screen:
Display Mode MVA, Normally Black, Transmissive
Resolution 1366RGB)×768
Outline Size 323.5 × 192×5.2(H×V×D)
Display Area 309.399× 173.952 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 45/45/30/30 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

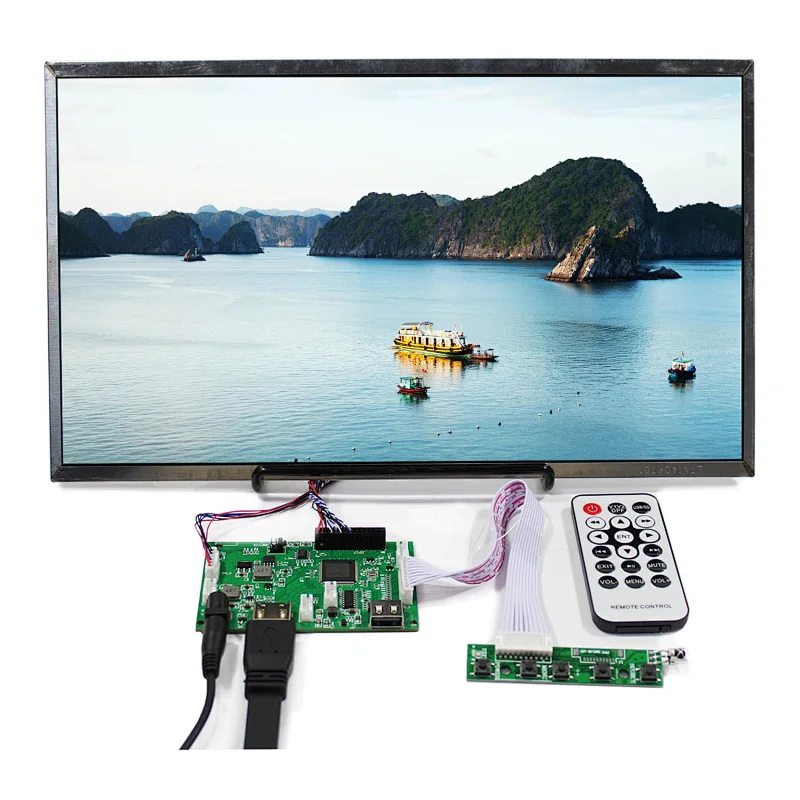

Packing list :
1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1× 14inch 1366x768 LED Backlight LCD Screen(One of LTN140AT02 BT140XW02 HT140WXB HSD140PHW1 LTN140AT07 LTN140AT26 LP140WH1 N140B6)

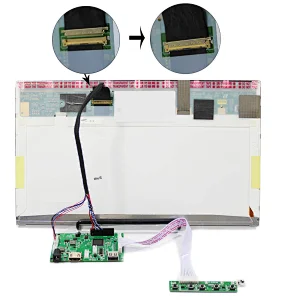

1× LVDS Cable
1× Keyboard With Cable
1× Remote Control
