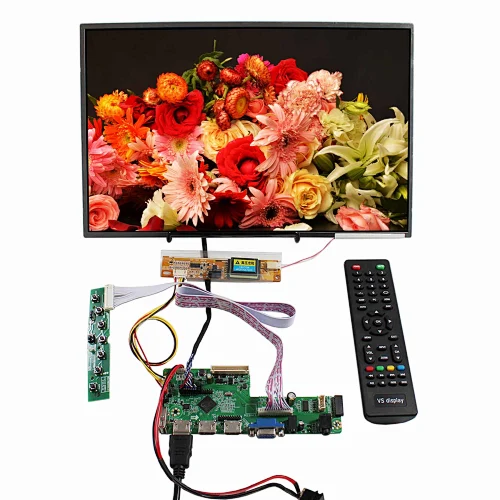

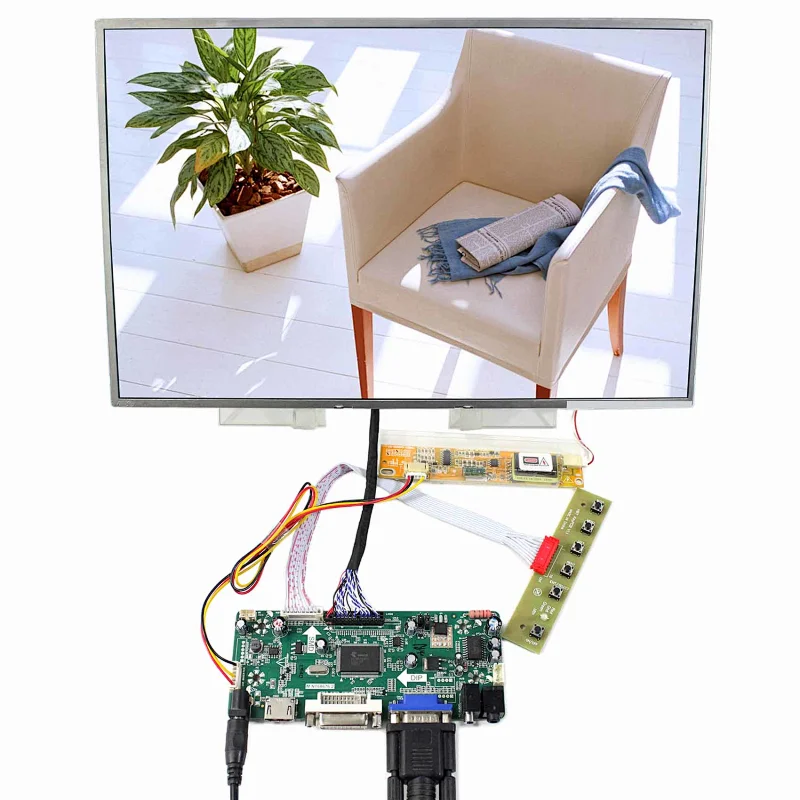

15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd
15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd

15.4inch 1280x800 B154EW01 LCD Screen with HDM I DVI VGA Audio LCD Controller Board 15.4inch 1280x800 B154EW01 1280x800 B154EW01 1280x800 lcd

Model NO.
K000368-M.NT68676.2A+FIX-30P 2ch 6bit+15.4inch 1280x800
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

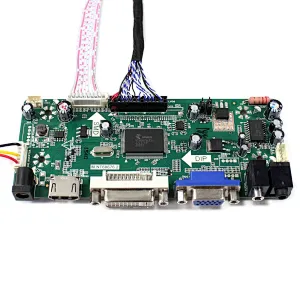

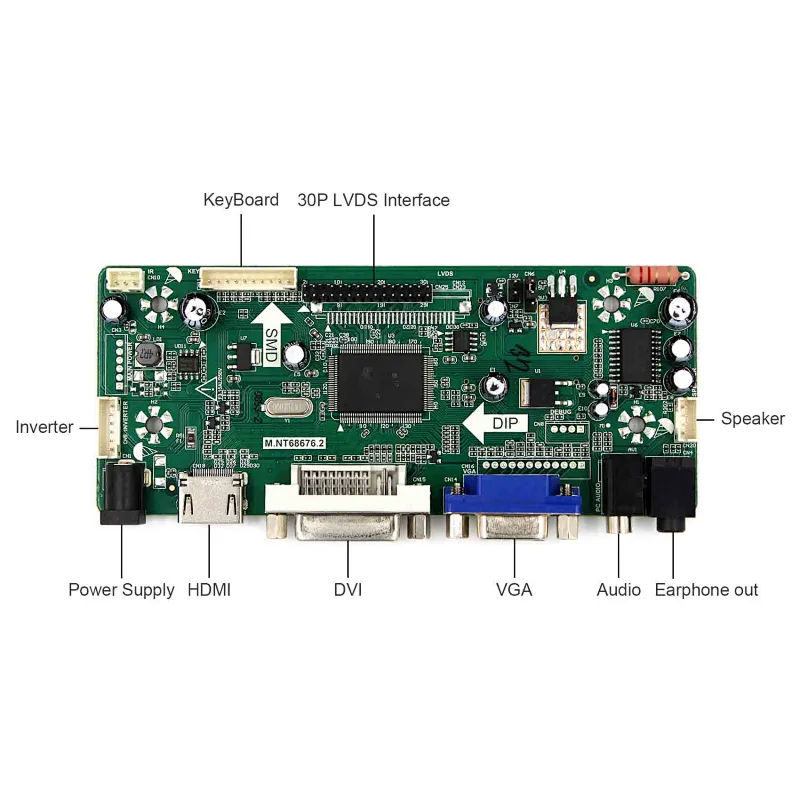

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

15.4"1280X800 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×800
Outline Size 344 × 242.5× 6(H×V×D)
Display Area 331.56× 207.225 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 6-bit) , Connector , 30 pins
Backlight  CCFL
Input Voltage  3.3V (Typ.)

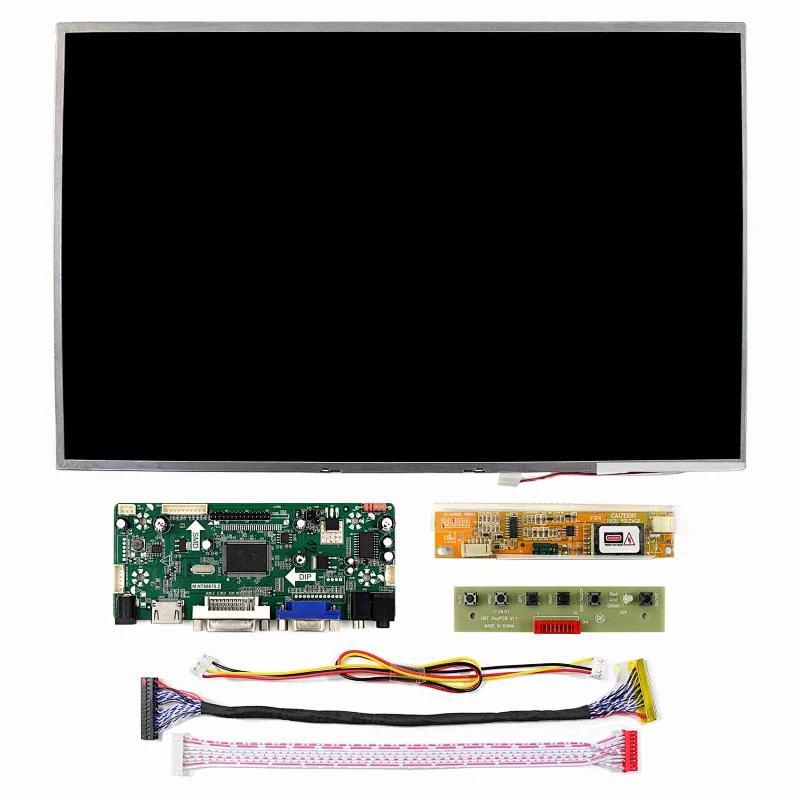

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
1×15.4inch 1280x800 (One of B154EW01/02/03/04/06/08 LTN154AT01/07/10 LTN154W1-L01 LTN154X3-L01 N154I3-L02  LP154W01 LP154WX3 LP154WX4 LP154W01 N154I2)
1× LVDS Cable

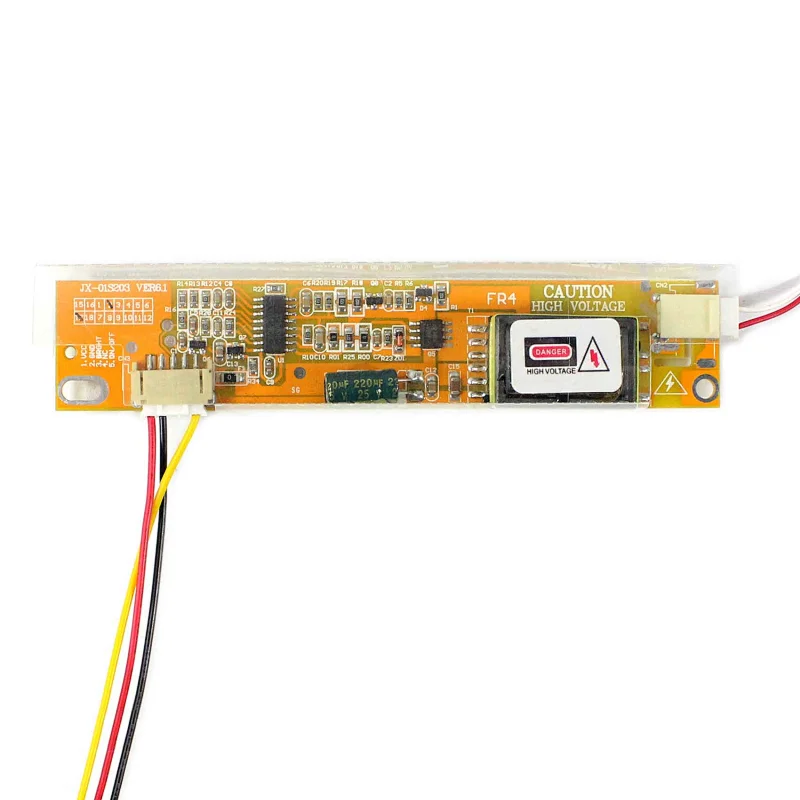

1× Inverter Board
1× Keyboard With Cable
