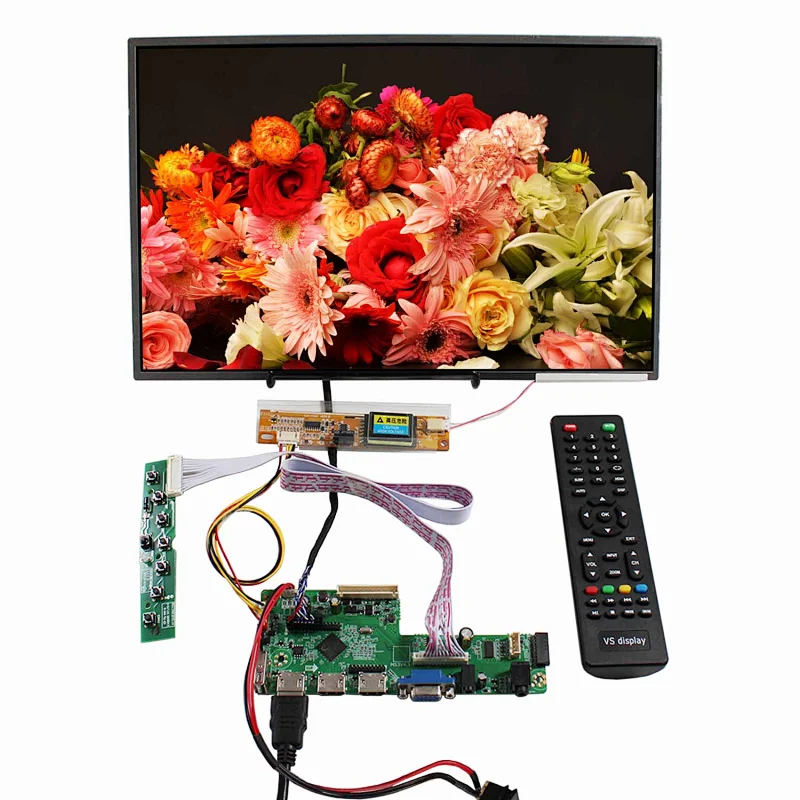

15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800
15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800

15.4inch 1280x800 LCD Screen With HD-MI USB VAG AUDIO LCD Controller Board 1280x800 lcd lcd controller pcb board 15.4inch 1280x800 LCD Scree 15.4inch 1280x800

Model NO.
K002888-VS-M5V4.1+15.4inch 1280x800
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

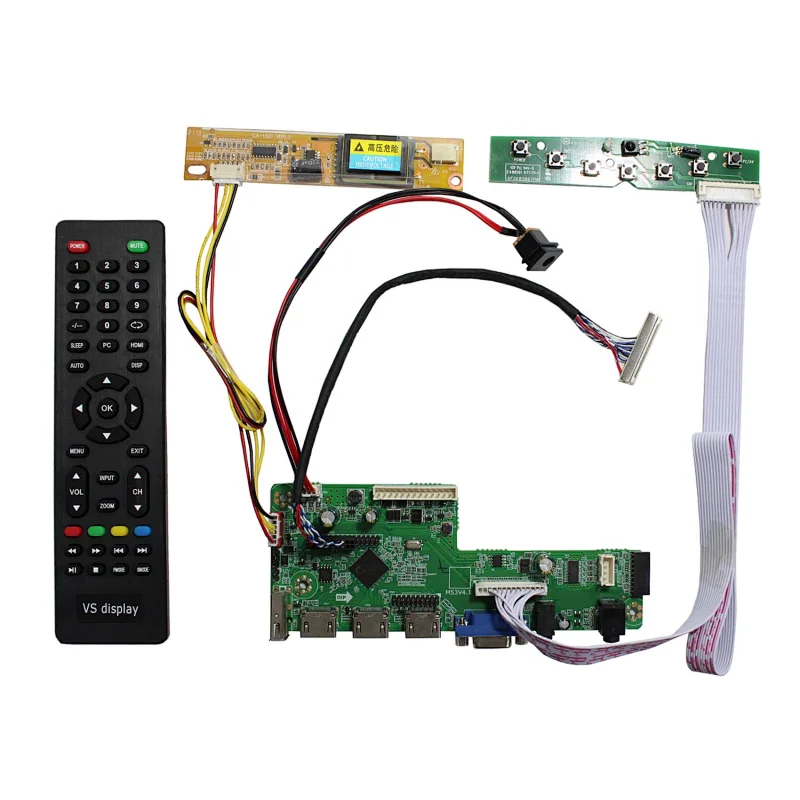

LCD Controller Board:
3X HD-MI VGA USB Audio LCD Controller Board for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W

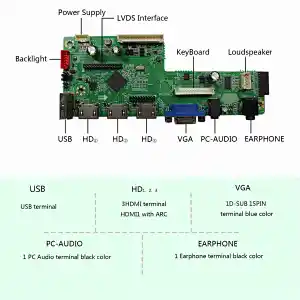

Video Input: HD-MI USB VGA
Audio Input: HD-MI
Audio Output: Speaker Earphone
OSD: Brightness Contrast Auto Language And So On
Language: English Chinese French German Spanish Italian Russian Portuguese

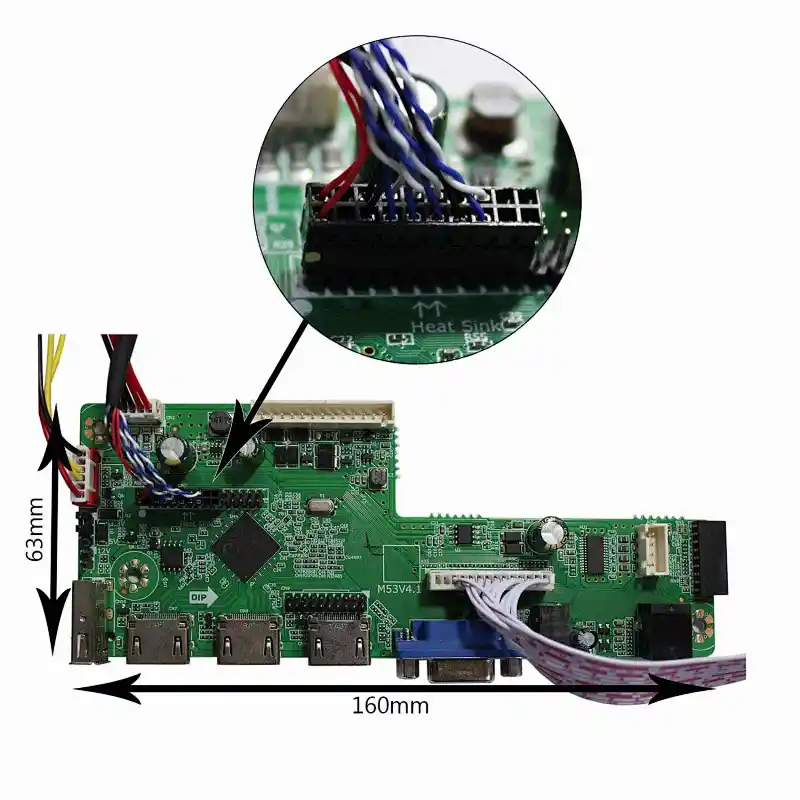

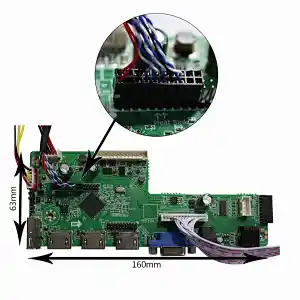

Board Size: 160mm x 63mm x 17mm

15.4"1280X800 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×800
Outline Size 344 × 242.5× 6(H×V×D)
Display Area 331.56× 207.225 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 60/60/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

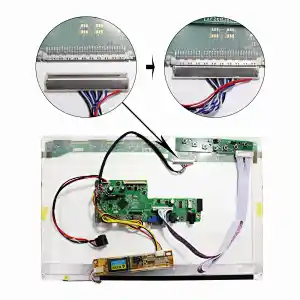

Signal Interface LVDS (2 ch, 6-bit) , Connector , 30 pins
Backlight  CCFL
Input Voltage  3.3V (Typ.)

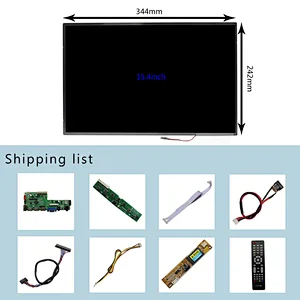

Packing list :
1× HD-MI USB VAG AUDIO LCD Board VS-M53V4.1
1×15.4inch 1280x800 (One of B154EW01/02/03/04/06/08 LTN154AT01/07/10 LTN154W1-L01 LTN154X3-L01 N154I3-L02  LP154W01 LP154WX3 LP154WX4 LP154W01 N154I2)
1× LVDS Cable
1× Inverter Board
1× Keyboard With Cable
1× Remote Control (Battery Not included)
