15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board

15.6inch 1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board

Model NO.
K003037-VS-TY2660HU-823+G156HTN02.1 1920X1080
Minimum order quantity:
1
Quantity:

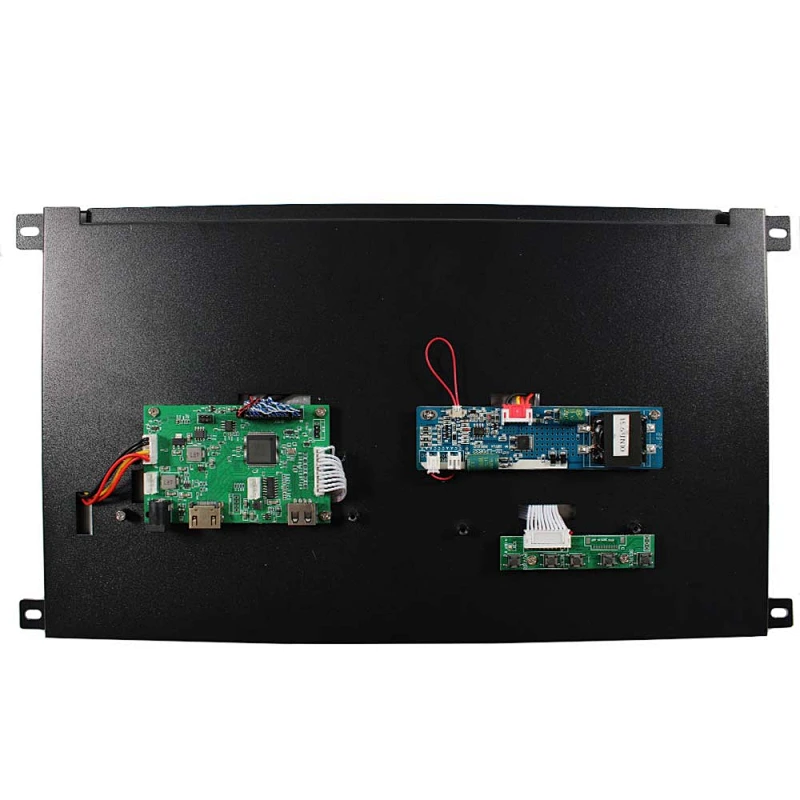

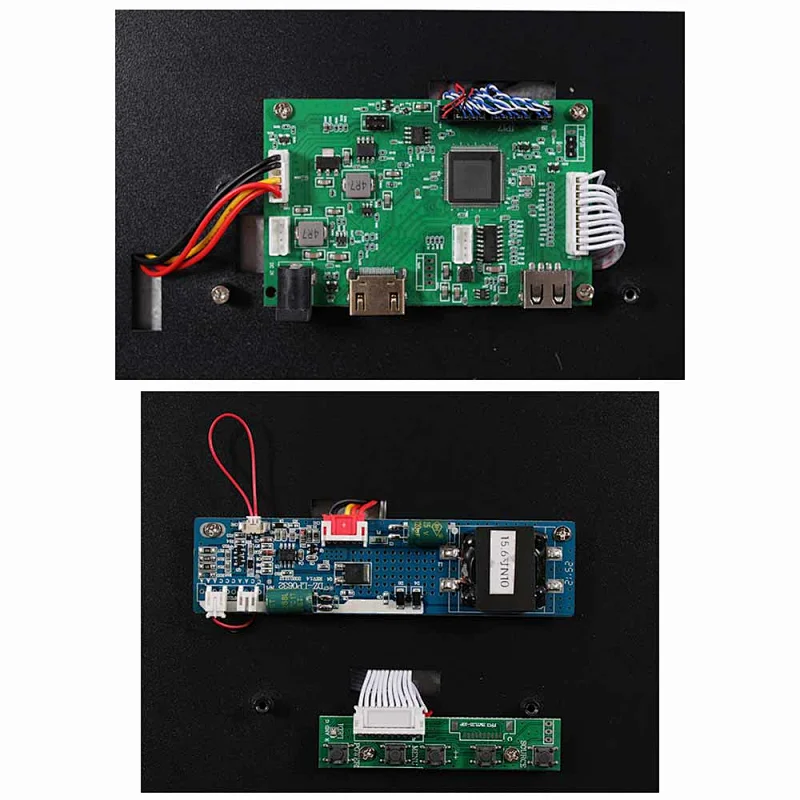

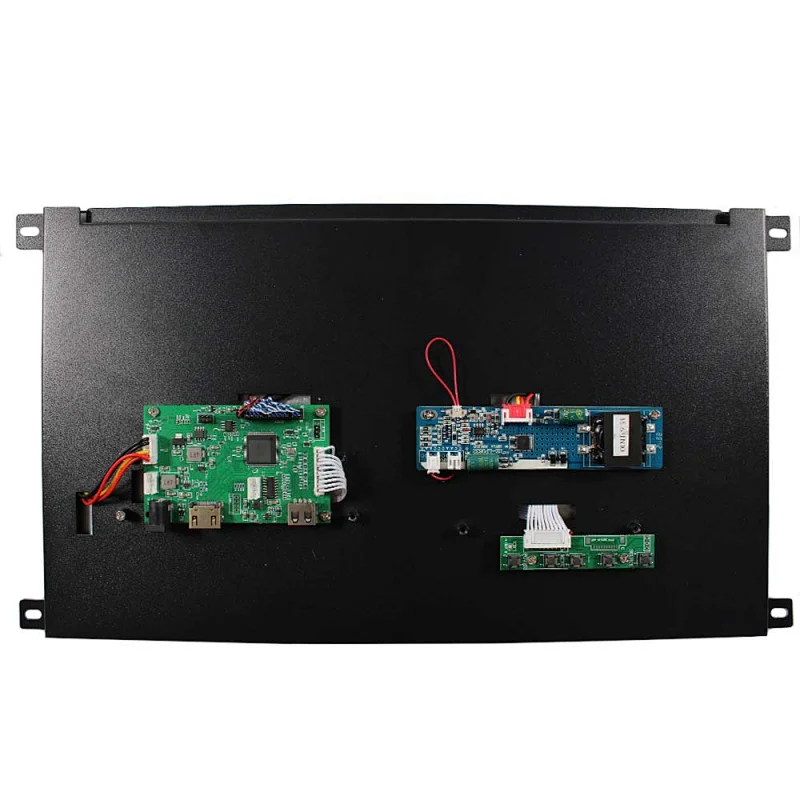

LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 56mm x 14mm

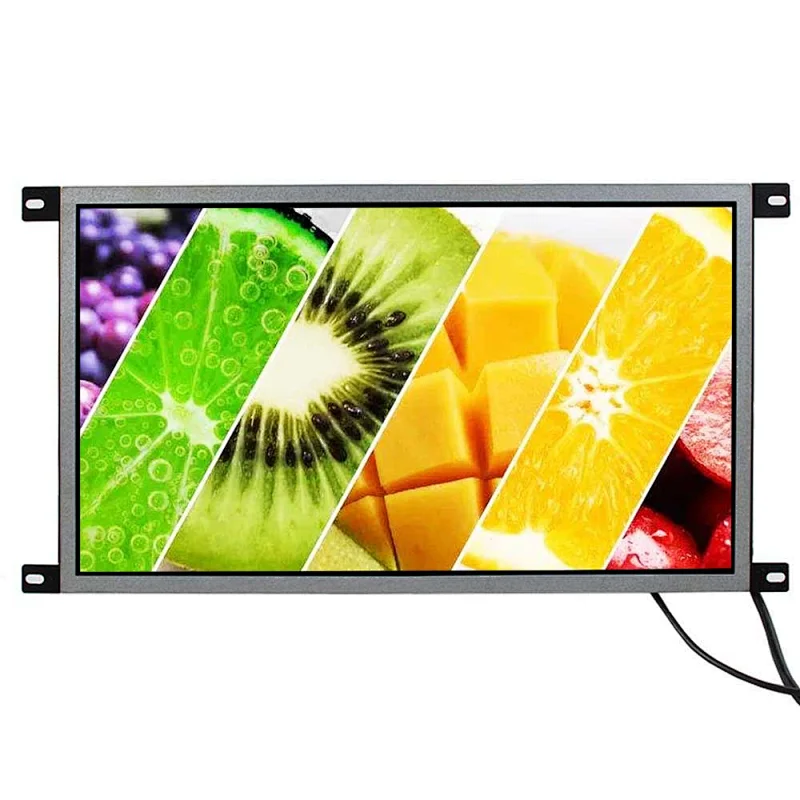

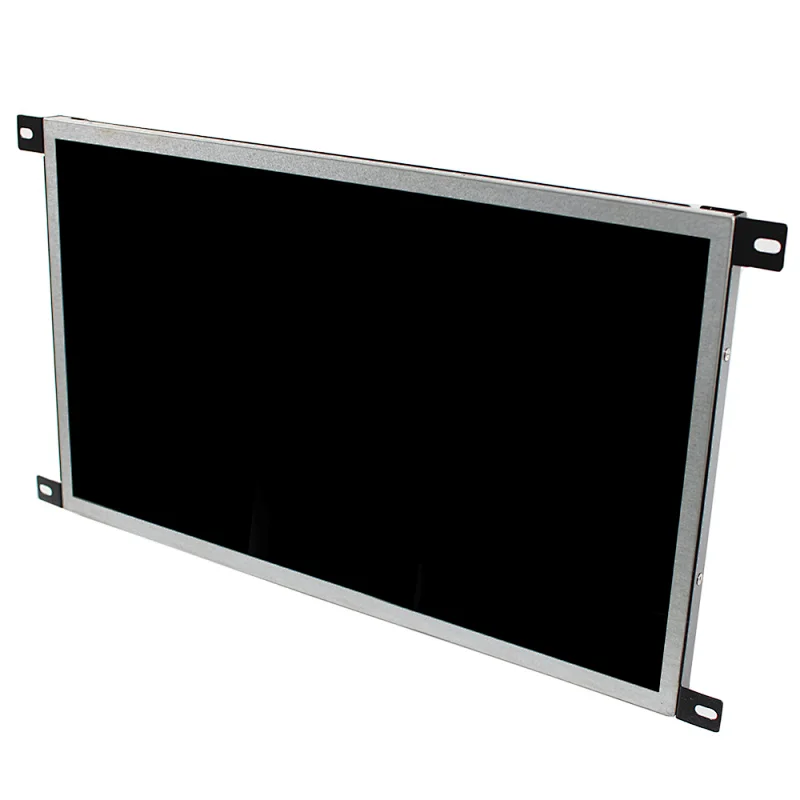

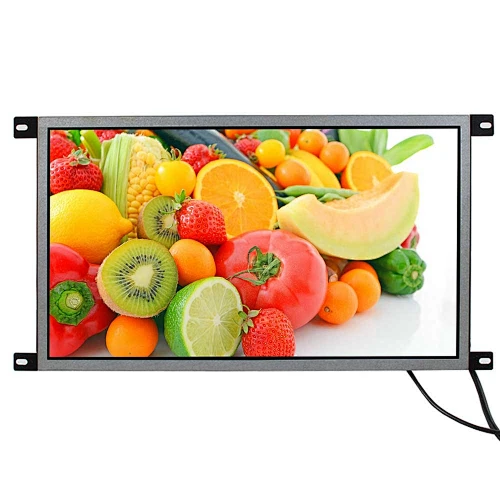

15.6"1920X1080 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1920(RGB)×1080, FHD, 141PPI

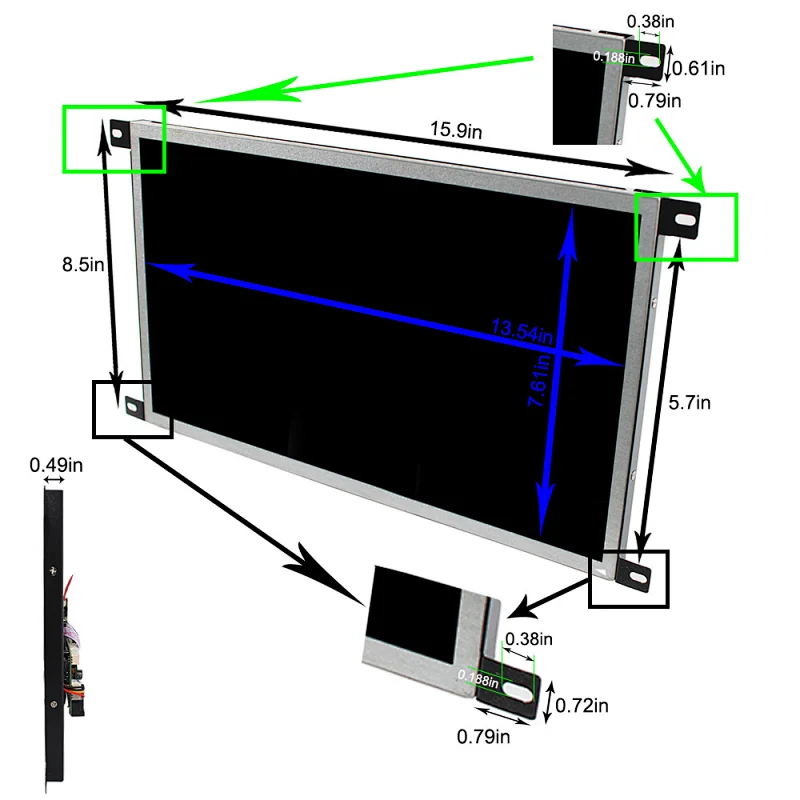

Outline Size 363.8(W)×215.9(H) ×12.5(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)
Weight:1720g/3.8LB

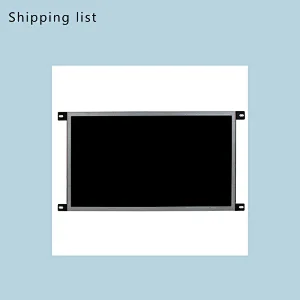

Packing list:
1× 15.6"1920X1080 1000nit Brightness LCD Screen With HDMI USB LCD Controller Board
