Model NO.: K002297-RT2270C-A+G1170EG01 1280X1024
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

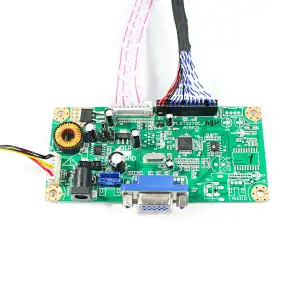

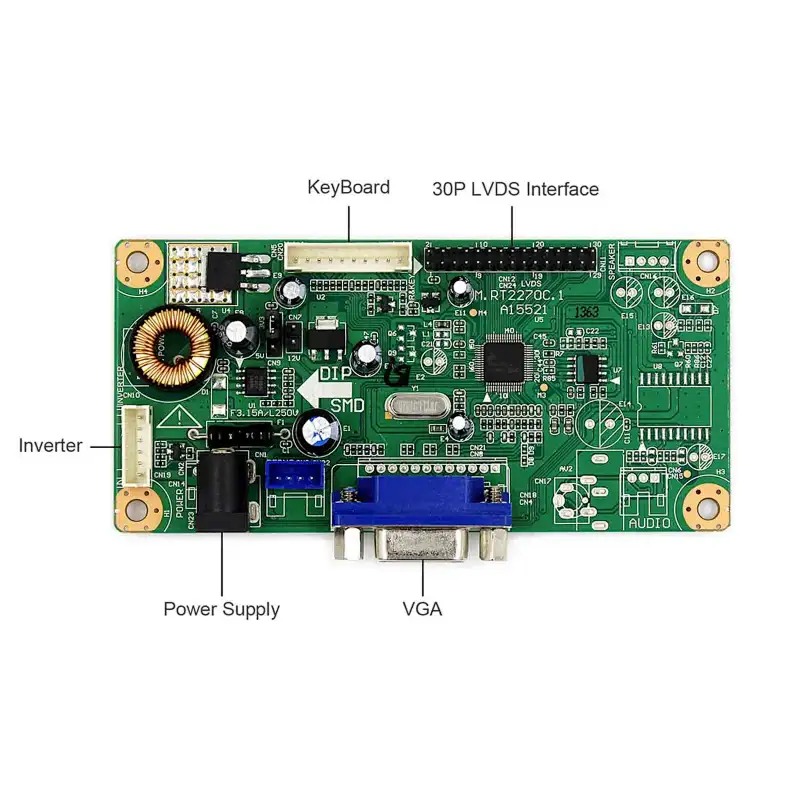

LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 107mm x 52mm x 18mm

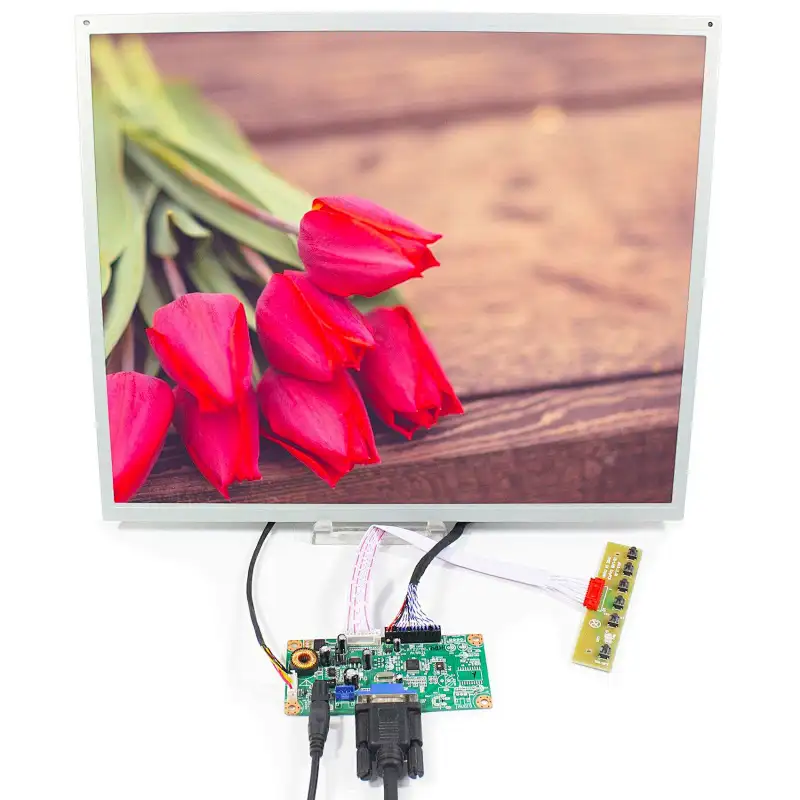

17"G170EG01 V1 1280X1024 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280RGB)×1024
Outline Size 358.5 ×296.5×18(H×V×D)
Display Area 337.92×270.336 (H×V)
Brightness350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit) , Connector , 30 pins
Backlight WLED
Input Voltage 5.0V (Typ.)

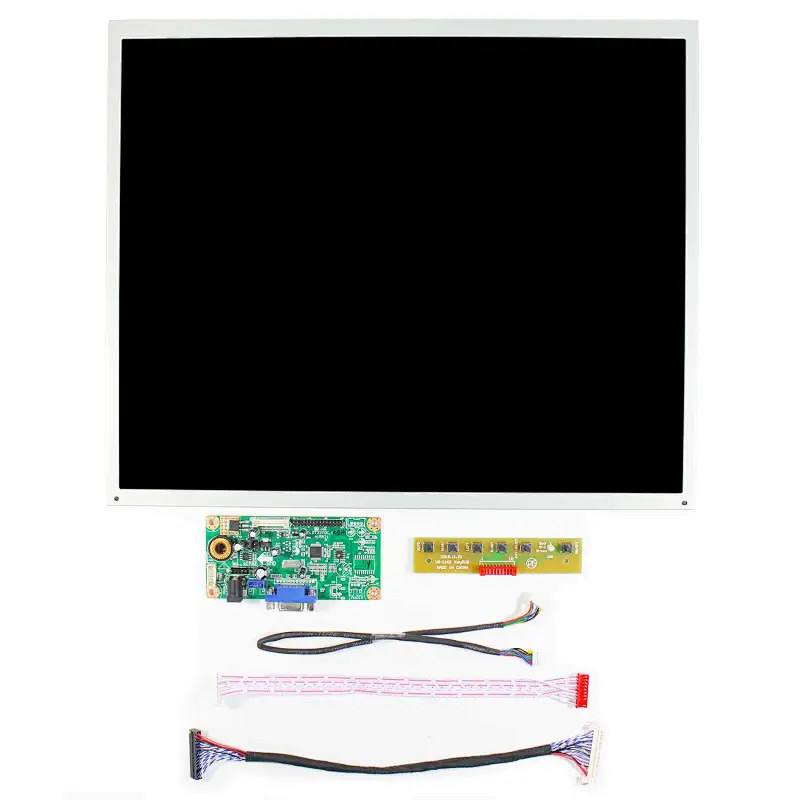

Packing list :
1× VGA LCD Controller Board RT2270C-A
1× 17inchG170EG01 V1 1280X1024 LCD Screen
1× Backlight Cable
1× LVDS Cable
1× Keyboard With Cable
