18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01
18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01

18.4inch CLAA184FP01 1920X1080 LCD Screen with VGA LCD Controller Board 18.4inch CLAA184FP01 1920X1080 CLAA184FP01 1920X1080 CLAA184FP01

Model NO.
K002651-RT2270C-A + CLAA184FP01 1920X1080
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

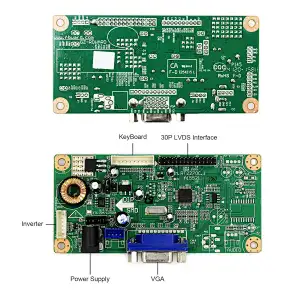

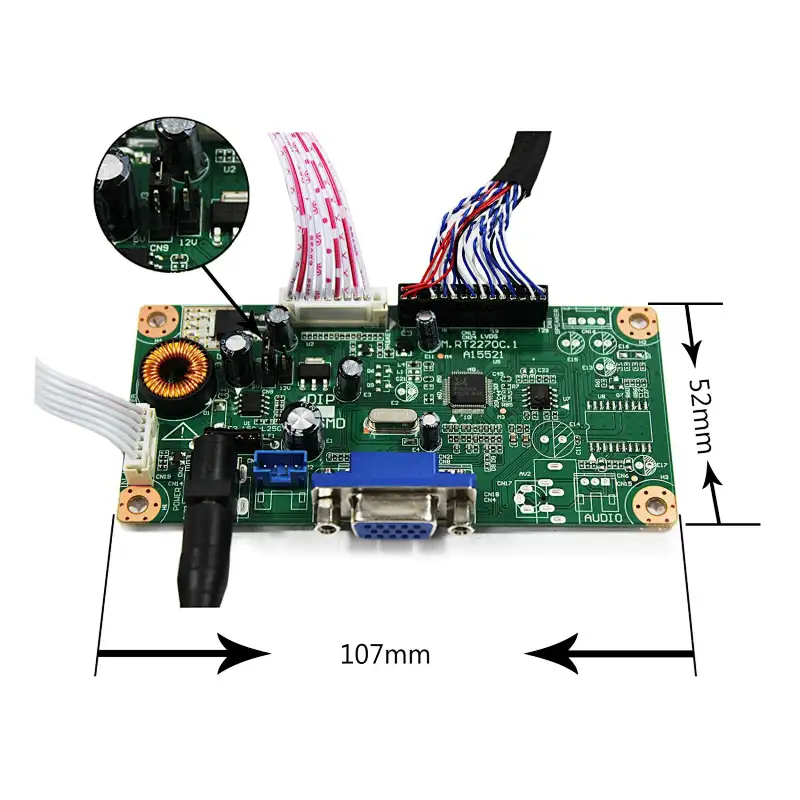

LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

18.4"CLAA184FP01 1920X1080  LCD Screen:
Pixel Format 1920(RGB)×1080  [FHD]  119PPI
Outline Size 422.5×248×6.3 mm (H×V×D)
Bezel Area 413.11(H)×234.24(V) mm
Brightness350 (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 40 pins Connector
Backlight  WLED , 15K hours , W/O Driver
Input Voltage 3.3V (Typ.)

Packing list:
1× VGA LCD Controller Board RT2270C-A
1×18.4"CLAA184FP01 1920X1080  LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
