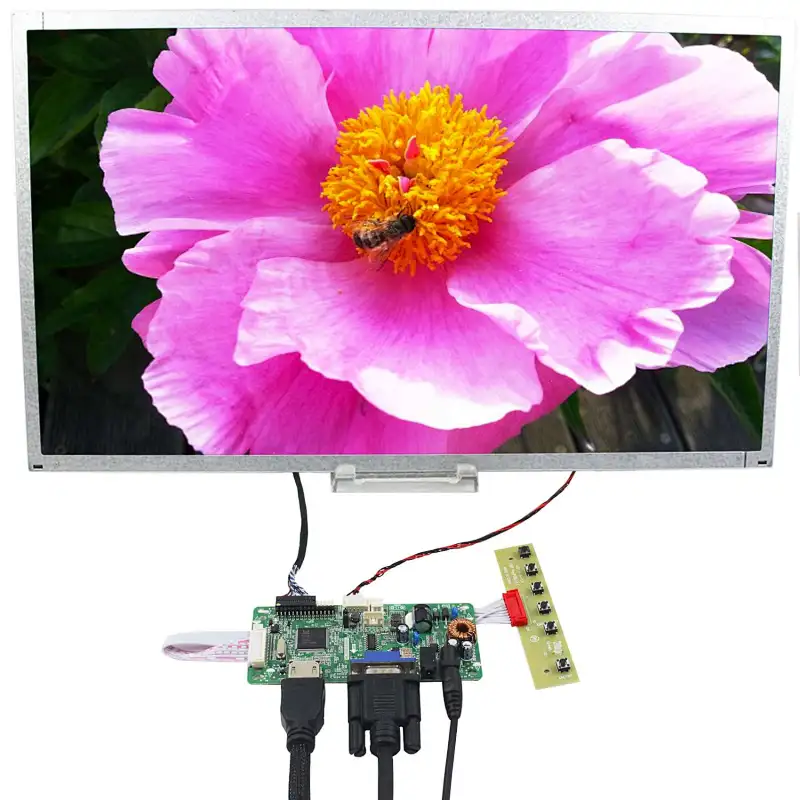

18.5" M185BGE-L22 30pin LVDS 8-bit LCD Screen Module HDM I VGA Video Audio Board 18.5" M185BGE-L22 M185BGE-L22

Model NO.: K002364-VS-W58CDT9-AV7 +M185BGE-L22 1366x768
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

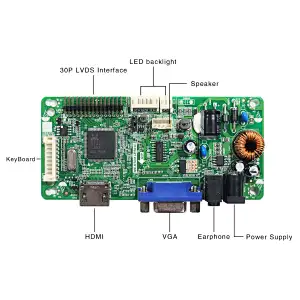

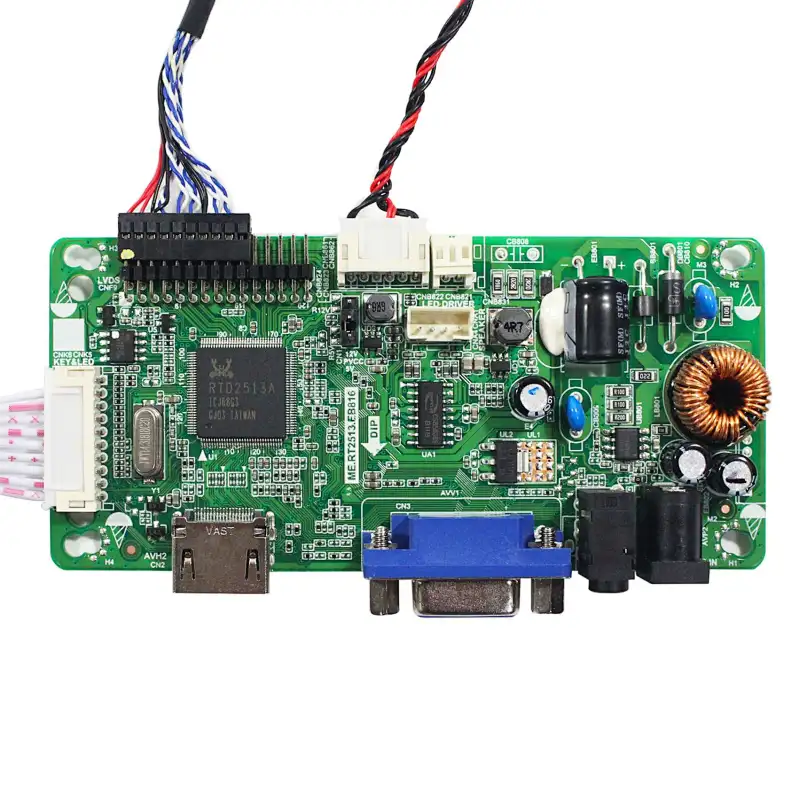

LCD Controller Board:
HDMI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 123mm x 63mm x 15mm

18.5" M185BGE-L22 1366X768 LCD Screen:
Display Mode ADS, Normally Black, Transmissive
Resolution 1366RGB)×768
Outline Size 430.37×254.6×11(H×V×D)
Display Area 409.8×230.4(H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80(Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 30 pins LVDS (2 ch, 8-bit) , Connector
Backlight WLED
Input Voltage 5.0V (Typ.)

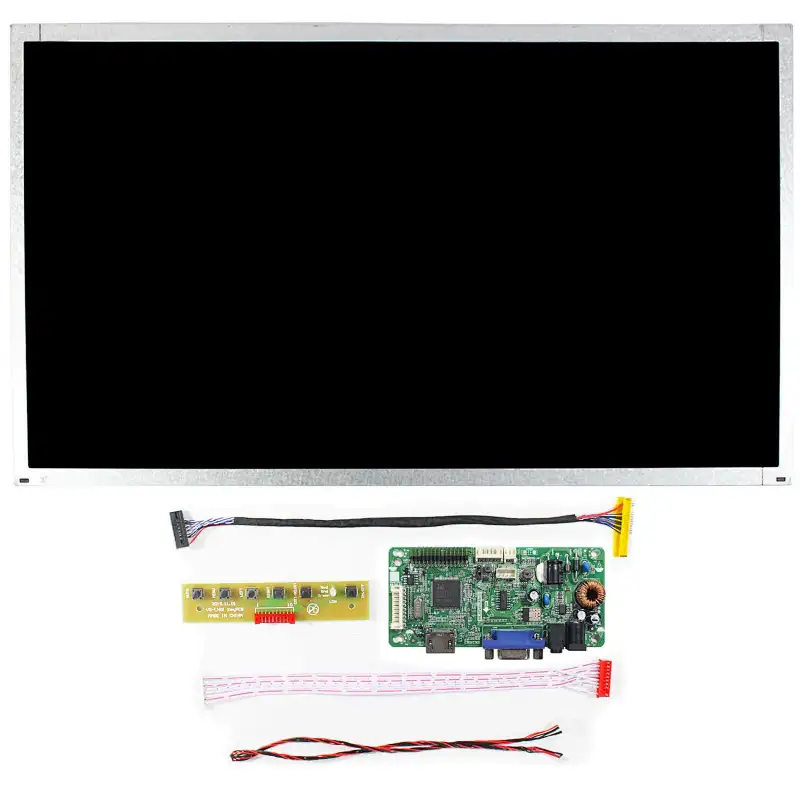

Packing list :
1× HDMI VGA LCD Controller Board VS-W58CDT9-AV7
1× 18.5inchM185BGE-L22 1920X1080 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
