20.7" MT207FHM N20 1920X1080 LCD Screen with HDMI Android LCD Controller Board 20.7inch MT207FHM N20 1920X1080 MT207FHM N20 1920X1080 MT207FHM N20

Model NO.
K002547-VS-TY2660H-V818+MT207FHM-N20
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

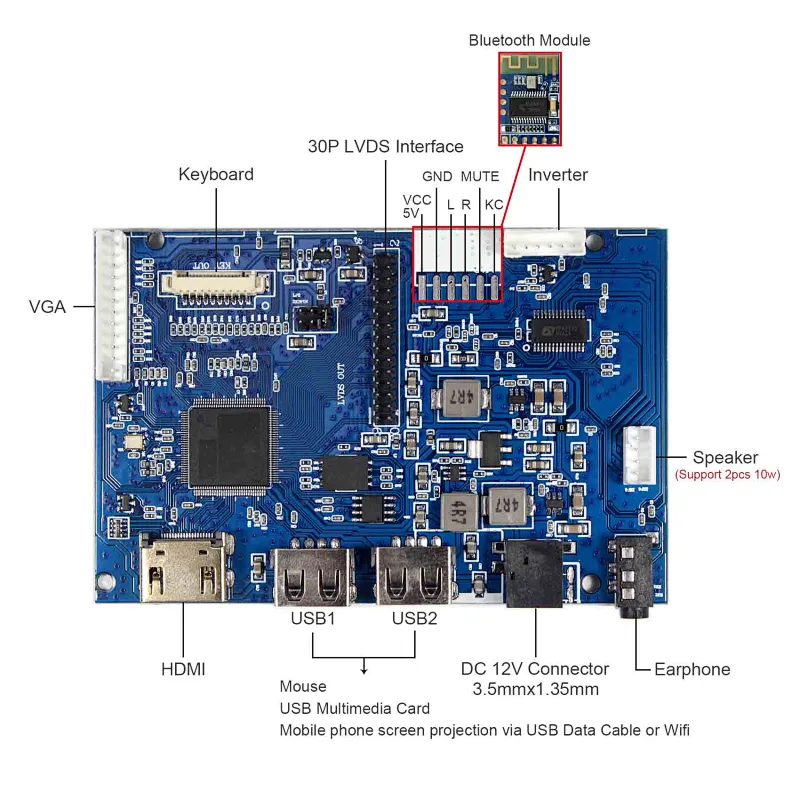

LCD Controller Board:
HDMI USB Android LCD Controller Board Work for LVDS 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI1.4 USB
USB Port:
Support Video Play
Support WIFI Module
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)

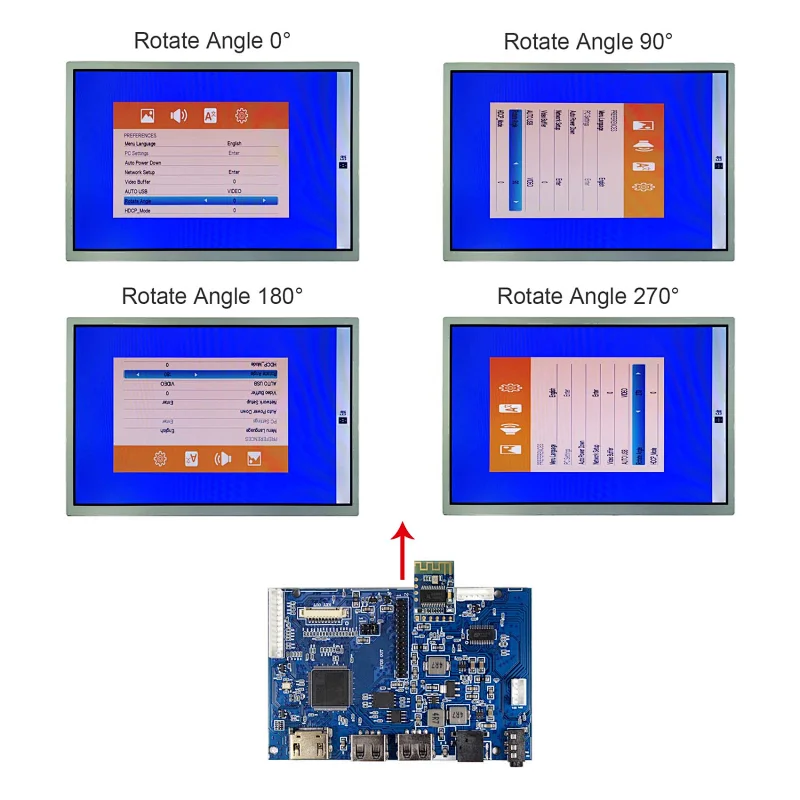

OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm

20.7"MT207FHM-N20 1920X1080 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1920RGB)×1080
Outline Size 477.7×277.8×10.6 (H×V×D)mm
Display Area 461.92 × 261.58 mm (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 45/45/25/40 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 30pins
Backlight  WLED
Input Voltage  5.0V (Typ.)

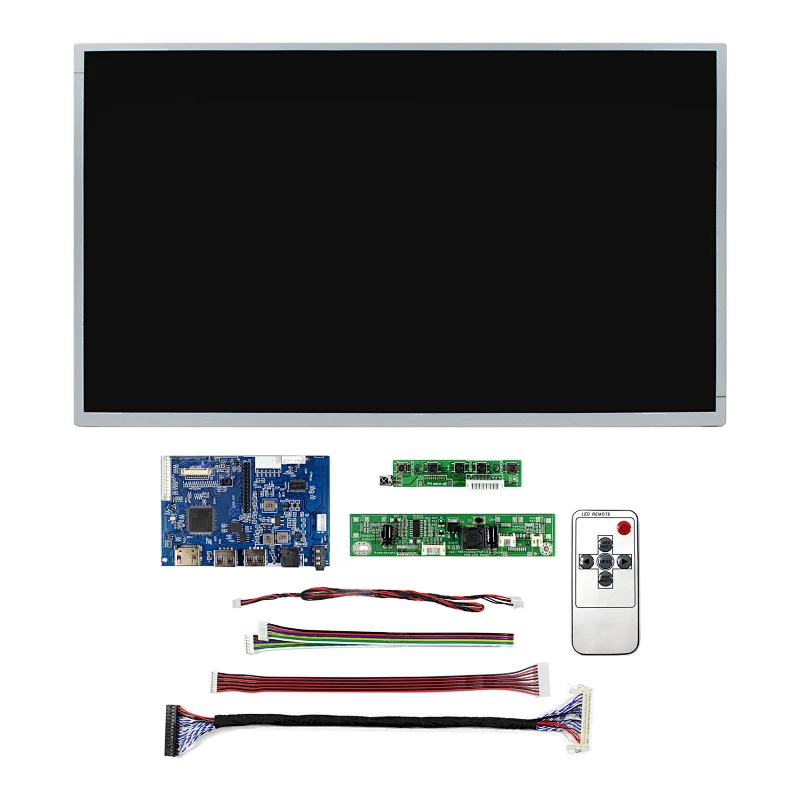

Packing list:
1× HDMI Audio LCD Controller Board VS-TY2660H-V818
1× 20.7"MT207FHM-N20 1920X1080 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
