Model NO.
K002696-VS-JRY-W3AFHD-DV1 Type-c +MT207FHM-N20
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

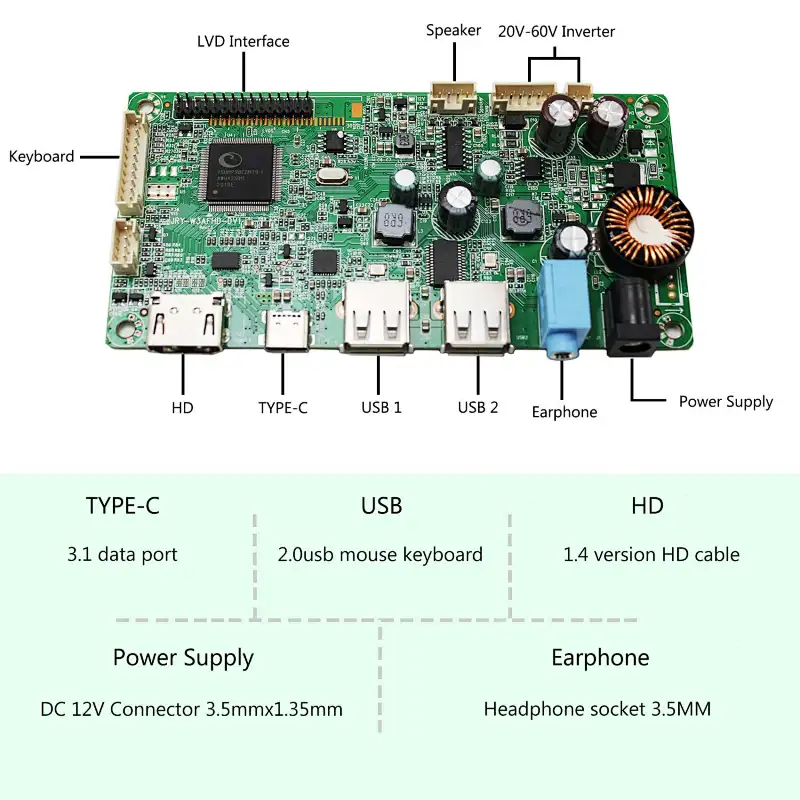

LCD Controller Board:
HD-MI Type-C USBx2 AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc（+/-0.5v）More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI Type-C  USBx2
Audio Input: HD-MI Type-C
Audio Output: Speaker Connector headset
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

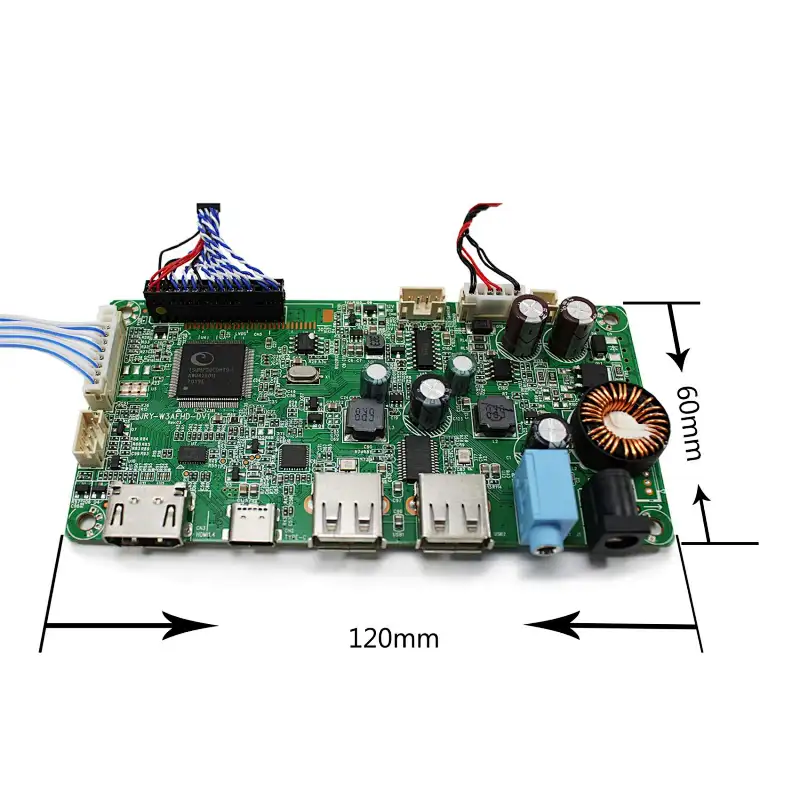

Board Size: 120mm x 60mm x 17mm

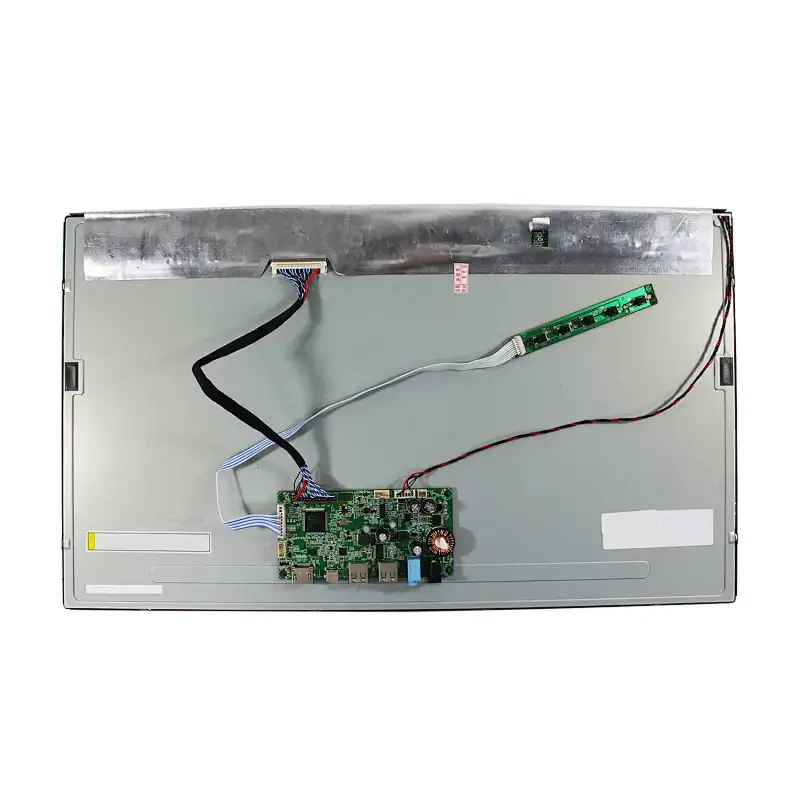

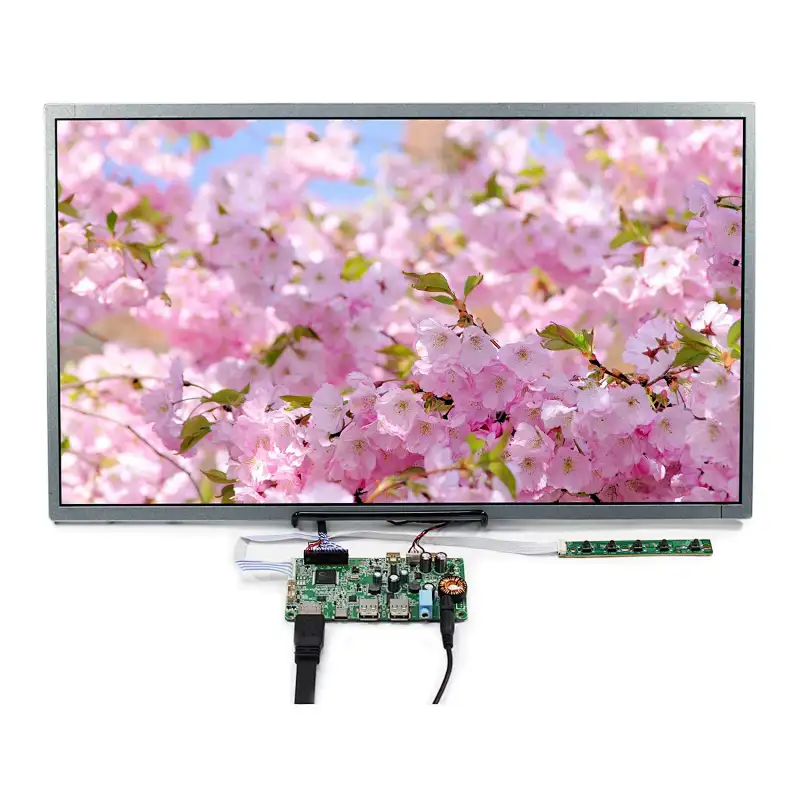

20.7"MT207FHM-N20 1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920RGB)×1080

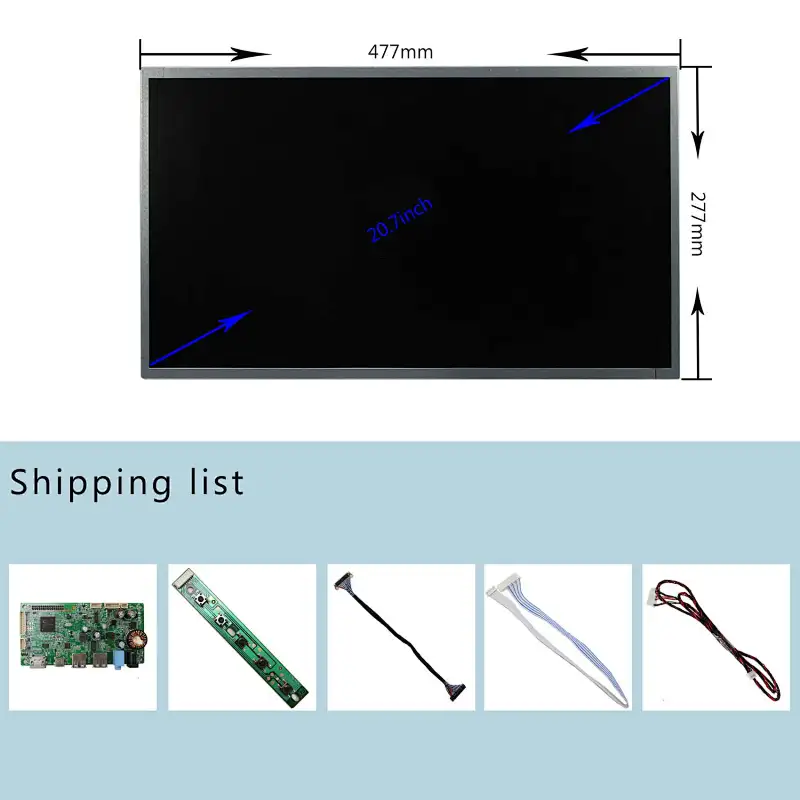

Outline Size 477.7×277.8×10.6 (H×V×D)mm
Display Area 461.92 × 261.58 mm (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 45/45/25/40 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 30pins
Backlight WLED
Input Voltage 5.0V (Typ.)

Packing list :
1× HD-MI Type-C  USBx2  AUDIO LCD Board Work for LVDS Interface LCD Screen
1×1× 20.7"MT207FHM-N20 1920X1080 LCD Screen
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
