21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1
21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1

21.5inch HR215WU1 1920X1080 IPS LCD Screen with DVI VGA LCD Controller Board 21.5inch HR215WU1 1920X1080 HR215WU1 1920X1080 21.5inch HR215WU1 HR215WU1

Model NO.
K002131-RT2281+HR215WU1-120
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

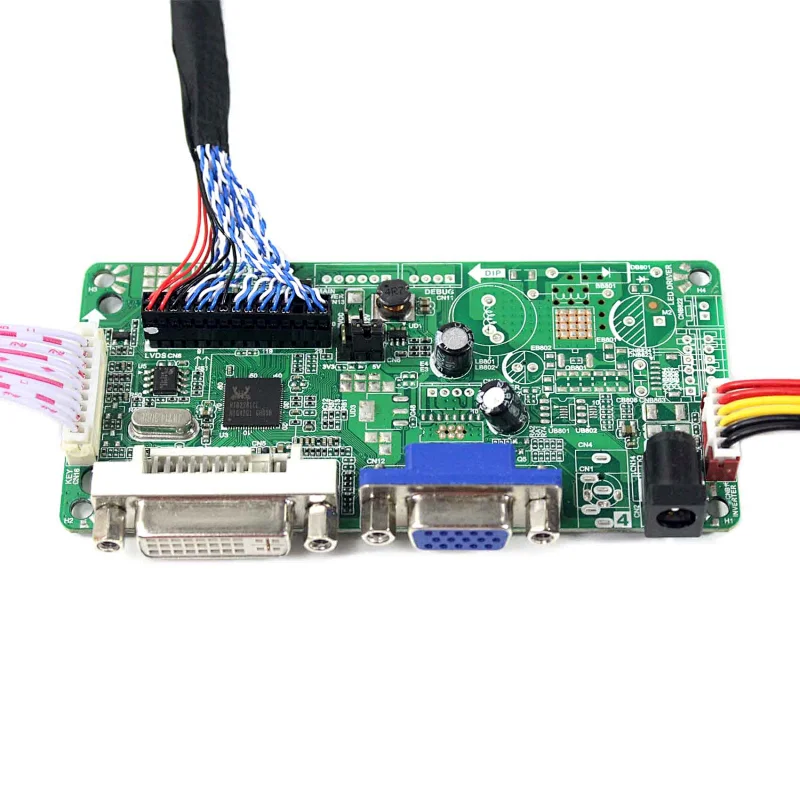

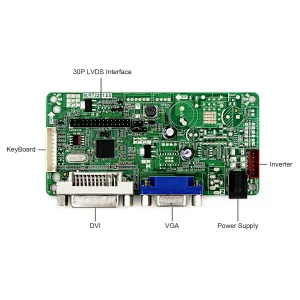

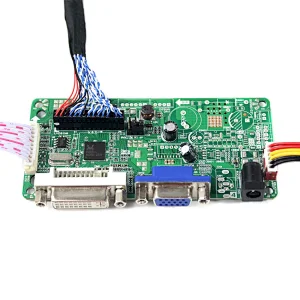

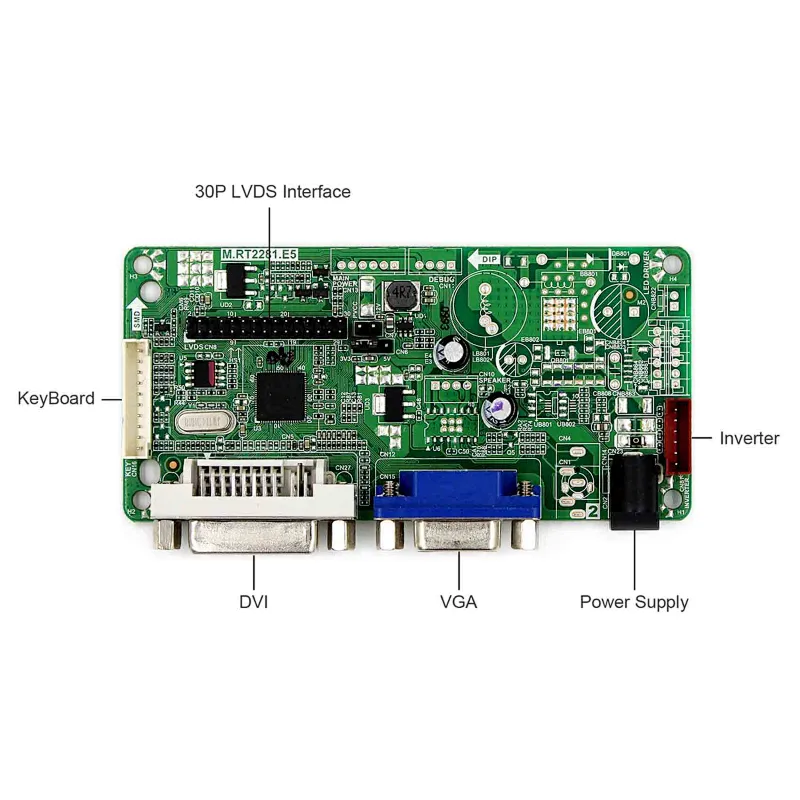

LCD Controller Board:
DVI VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: DVI VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

21.5" HR215WU1 1920X1080 LCD Screen:
Display Mode  FFS, Normally Black, Transmissive
Resolution 1920RGB)×1080
Outline Size 495.6 ×292.2×11.3 (H×V×D)
Display Area 467.64 ×268.11 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]

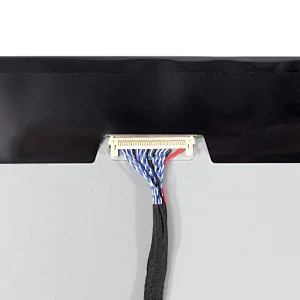

Signal Interface  30 pins LVDS (2 ch, 8-bit) , Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

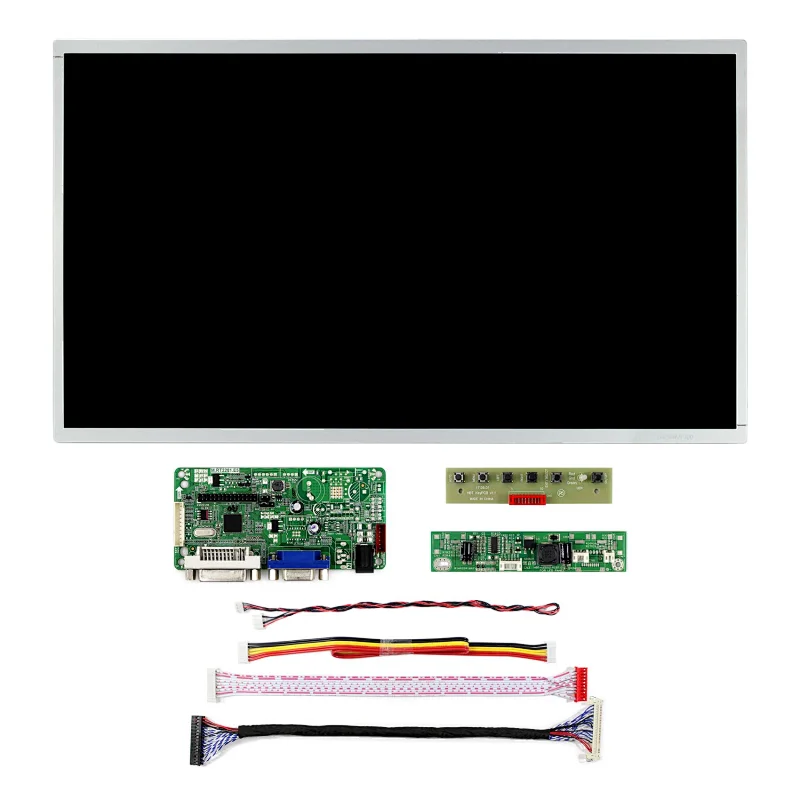

Packing list :
1× VGA+DVI LCD Controller Board RT2281
1× 21.5inchHR215WU1-120 1920X1080IPSLCD Screen
1× Inverter Board
1× LVDS Cable
1× Backlight Cable
1× Keyboard With Cable
