5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd
5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd

5.6inch AT056TN53 640X480 TFT-LCD With HD-MI Audio LCD Controller Board lcd

Model NO.
K002915- VS-N5V3.1H+KYV-TCON-V5+AT056TN53 V1
Minimum order quantity:
1
Quantity:

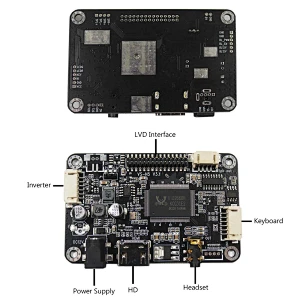

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

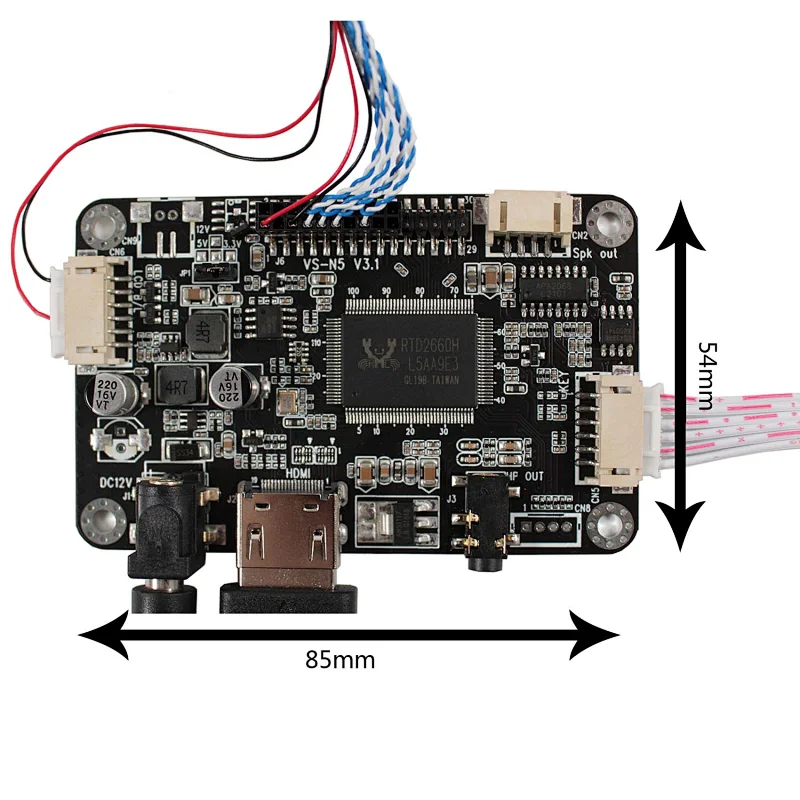

Board Size: 85mm x 54mm x 14mm

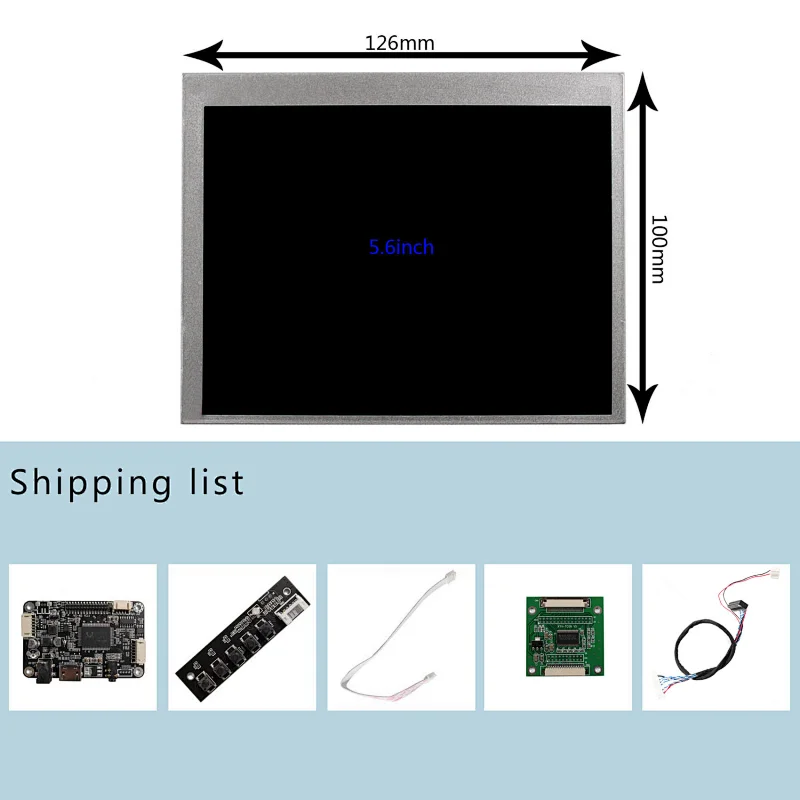

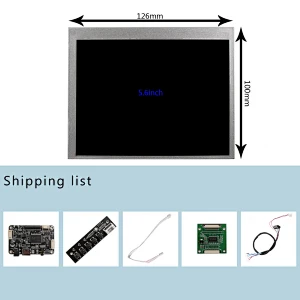

5.6"AT056TN53 640X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 640RGB)×480
Outline Size 126.5 ×100×6 (H×V×D)
Display Area 112.9 × 84.7 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

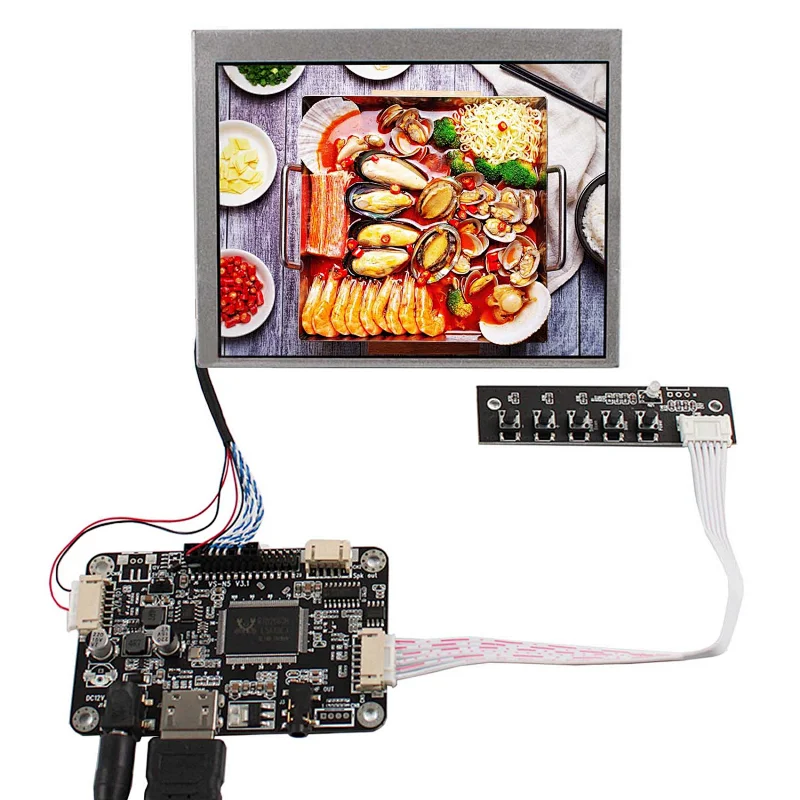

Packing list:
1× HD-MI Audio LCD Controller Board
1× 5.6inch AT056TN53 640X480 LCD
1× T-CON Board KYV-TCON V5
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
