7inch TFT-LCD N070ICG-LD1 1280X800 Screen With HD-MI LCD Driver Board 7inch 1280x800 7inch N070ICG-LD1 1280X800 1280x800 lcd 7inch lcd

7inch TFT-LCD N070ICG-LD1 1280X800 Screen With HD-MI LCD Driver Board 7inch 1280x800 7inch N070ICG-LD1 1280X800 1280x800 lcd 7inch lcd

Model NO.: K002721- VS-TY2660HU-823+N070ICG-LD1
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Supply Ability:: 5000 piece / Day
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

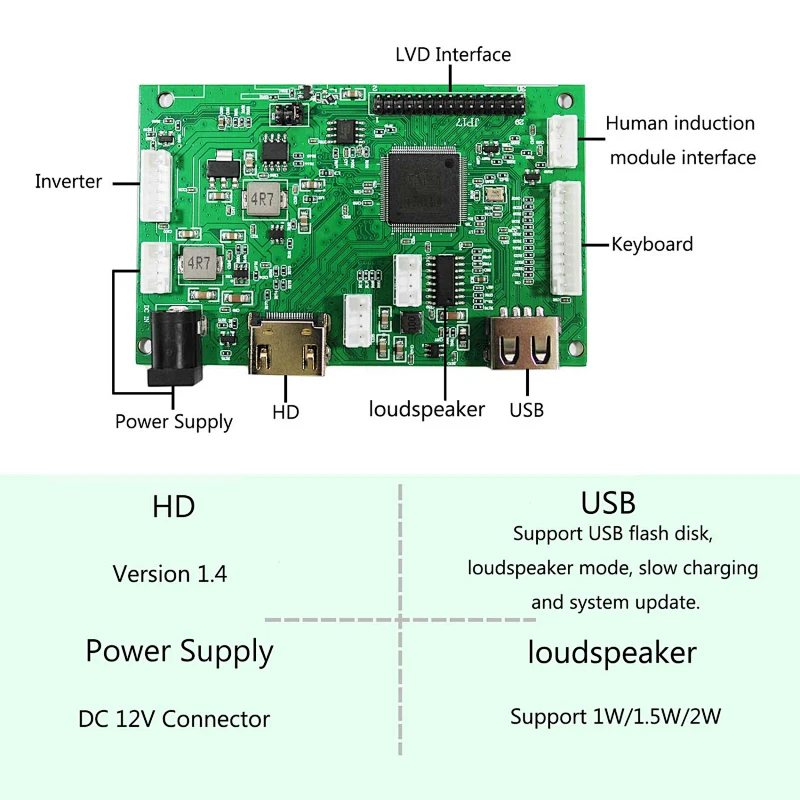

LCD Controller Board:
HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HDMI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm

7"N070ICG-LD1 1280X800 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1280RGB)×800
Outline Size 161 × 107×4.5 (H×V×D)
Display Area 149.76 × 93.6(H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface 40pins LVDS (1 ch, 6-bit) , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)

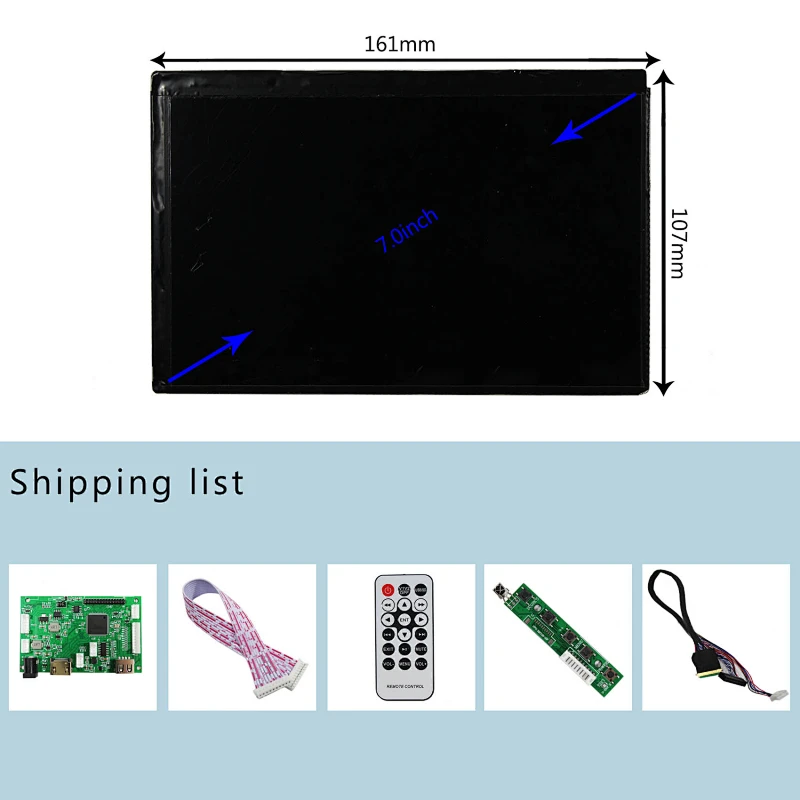

Packing list :
1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1× 7inch N070ICG-LD1 1280X800 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control
