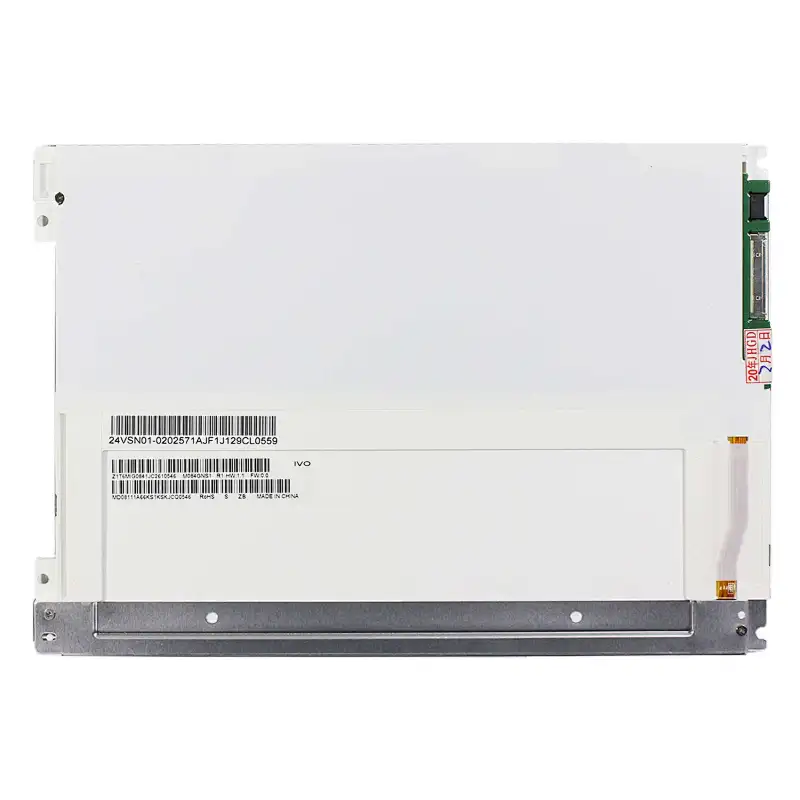

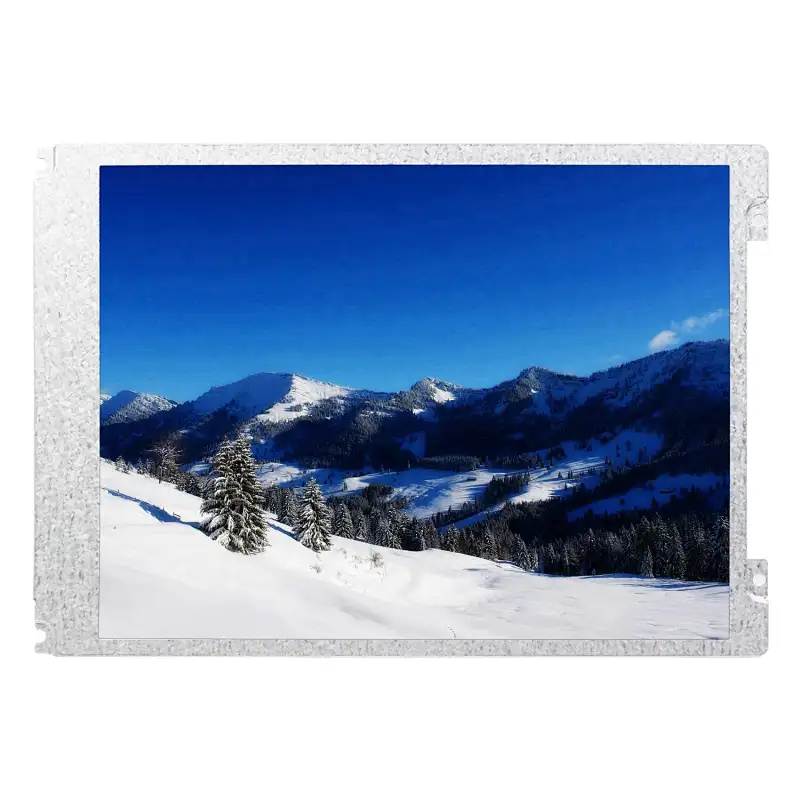

8.4"M084GNS1 R1 800X600 LCD Screen:

Display Mode  TN, Normally White, Transmissive

Resolution 800RGB)×600

Outline Size 203 × 142.5×6.2 (H×V×D)

Display Area 170.4 × 127.8 (H×V)

Brightness 350 cd/m² (Typ.)

Contrast Ratio 600:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Parallel RGB (1 ch, 8-bit) , 20 pins , FPC

Backlight  WLED

Input Voltage  3.3V (Typ.)

Packing list :

1× 8.4inch M084GNS1 800X600 LCD Screen
