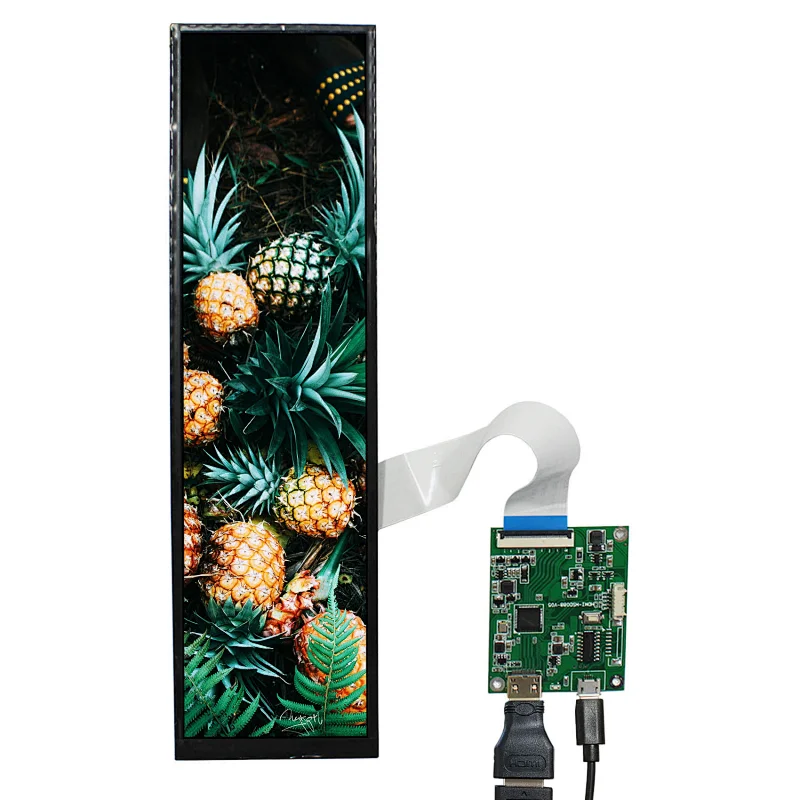

8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board
8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board

8.8inch HSD088IPW1 1920x 480 IPS TFT-Screen WIth HDMI -MIPI Control Board

Model NO.
K002845 VSHSD088MP-V1 +HSD088KPW1-A 1920x480
Minimum order quantity:
1
Quantity:

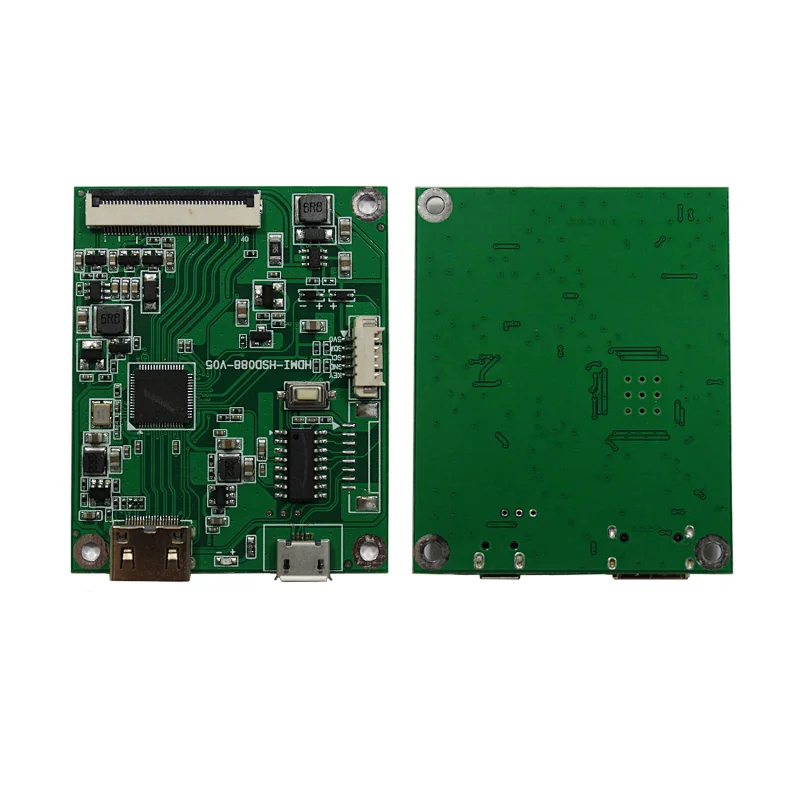

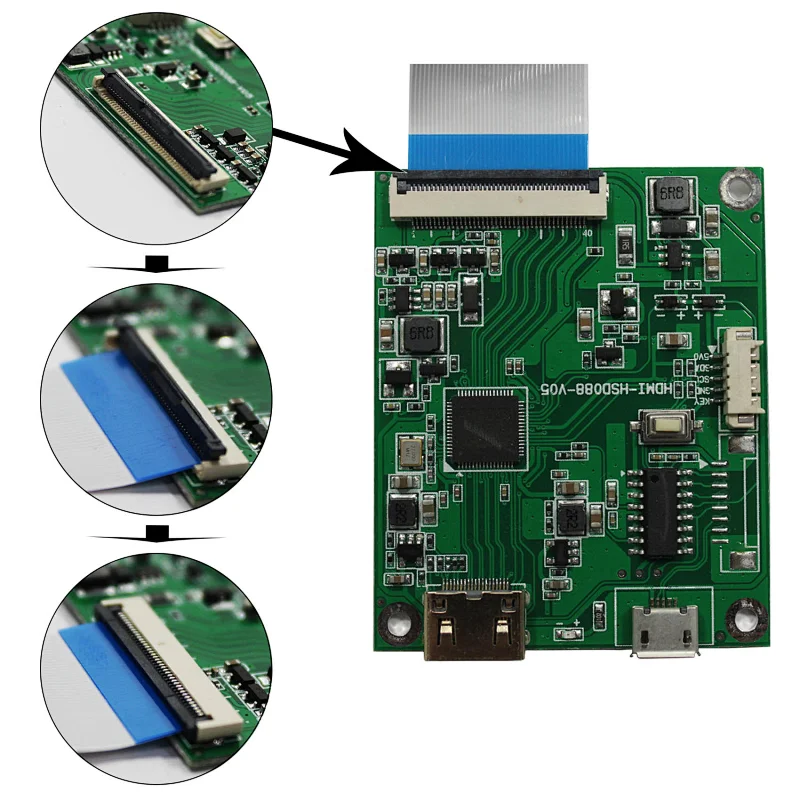

LCD Controller Board:
HD-MI Board Work for 40Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HD-MI

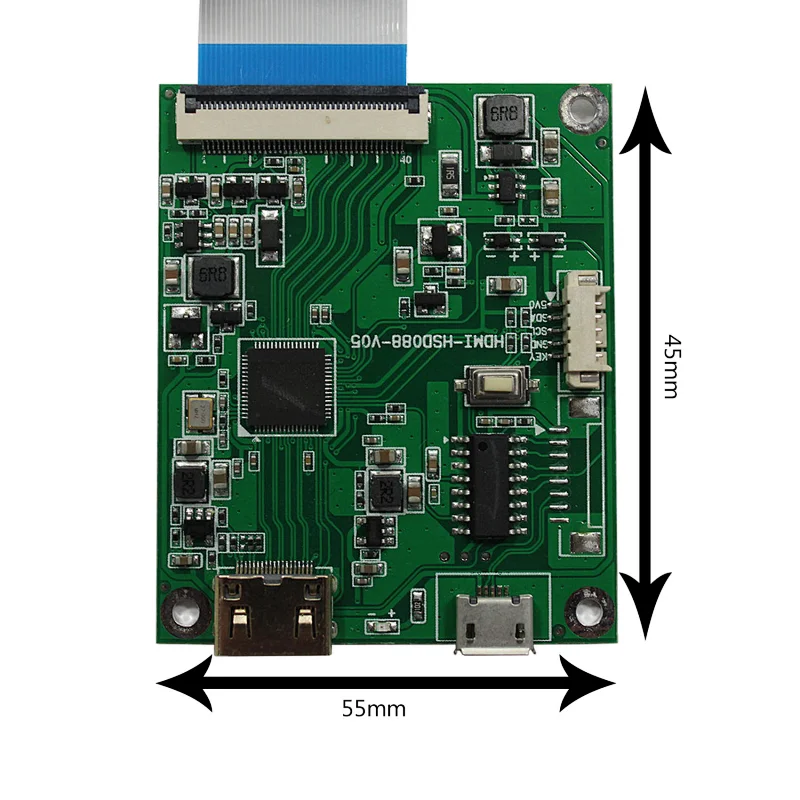

Board Size: 55mm x 45mm x 5mm

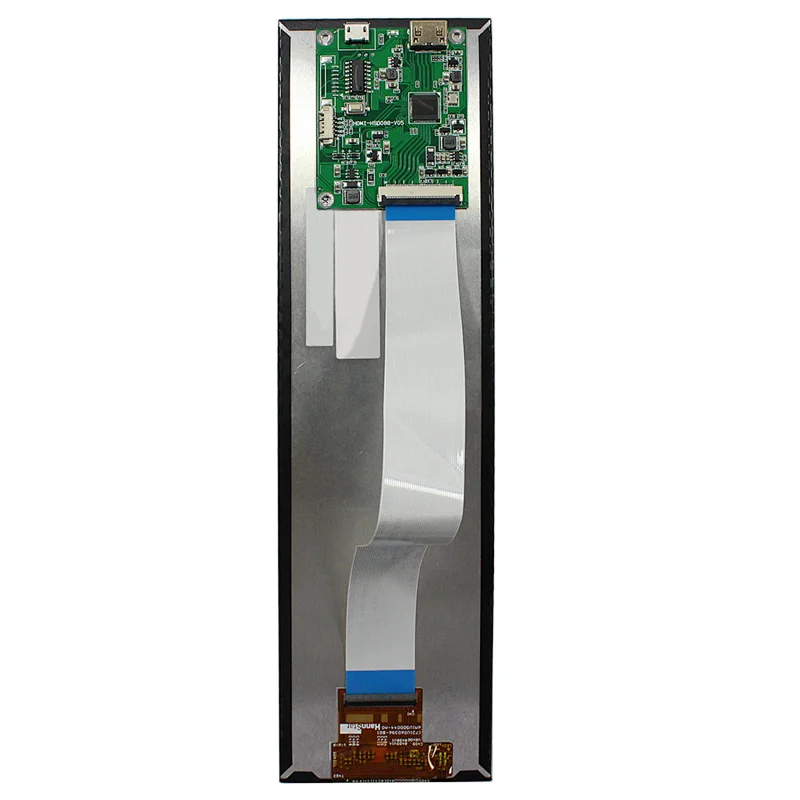

8.8"HSD088IPW1  1920X480 LCD Screen:
DisplayNew Mode2, Normally Black, Transmissive
Resolution 1920RGB)×480
Outline Size 231.3×64.3×6.4(H×V×D)
Display Area 221.9× 57.7(H×V)
Brightness 600 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI, 40 pins , Connector
Backlight  WLED
Input Voltage 3.3/20.0/-10.0 V (Typ.)(IOVCC/VSP/VSN)

Packing list :
1× HDMI To Mipi LCD Controller Board VS-HSD088
1× 8.8inch HSD088IPW1-A00 LCD Screen
1× Signal Cable
1× Converter Board
For Raspberry Pi
1. The Main Board Four Locating Holes Compatible With Raspberry Pi.
2. Different Raspberry Pi are set differently. Please connect with Raspberry Pi Technical support.
