Model NO.
K002716- VS-TY2662-V1+AA090ME01 800x480
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Supply Ability:
5000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

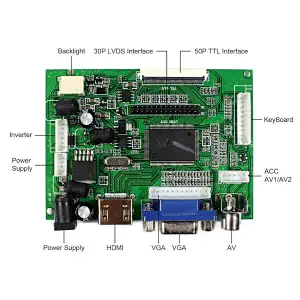

LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

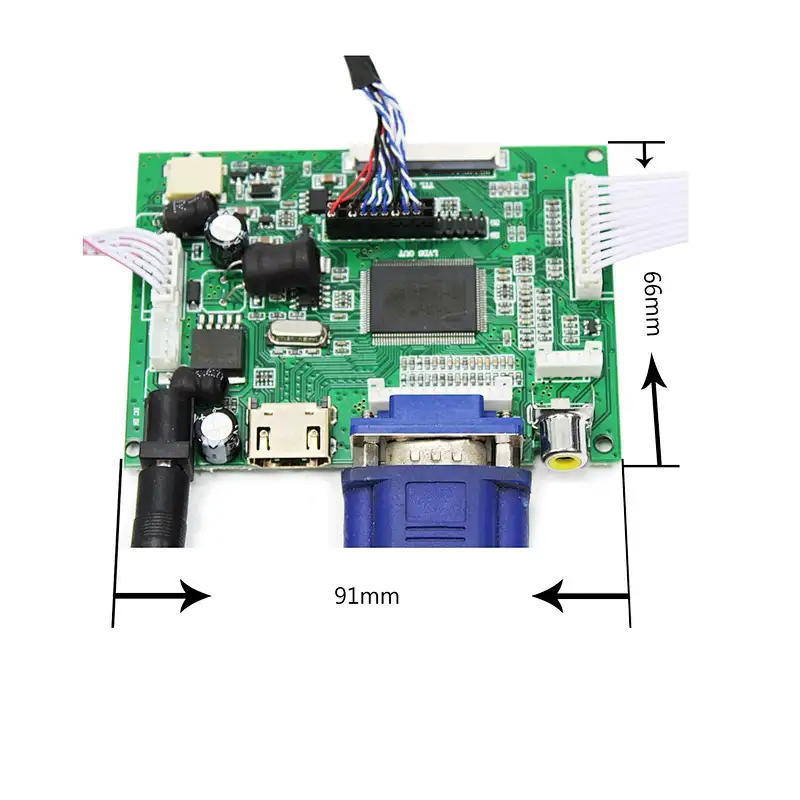

Board Size: 91mm x 66mm x 12mm

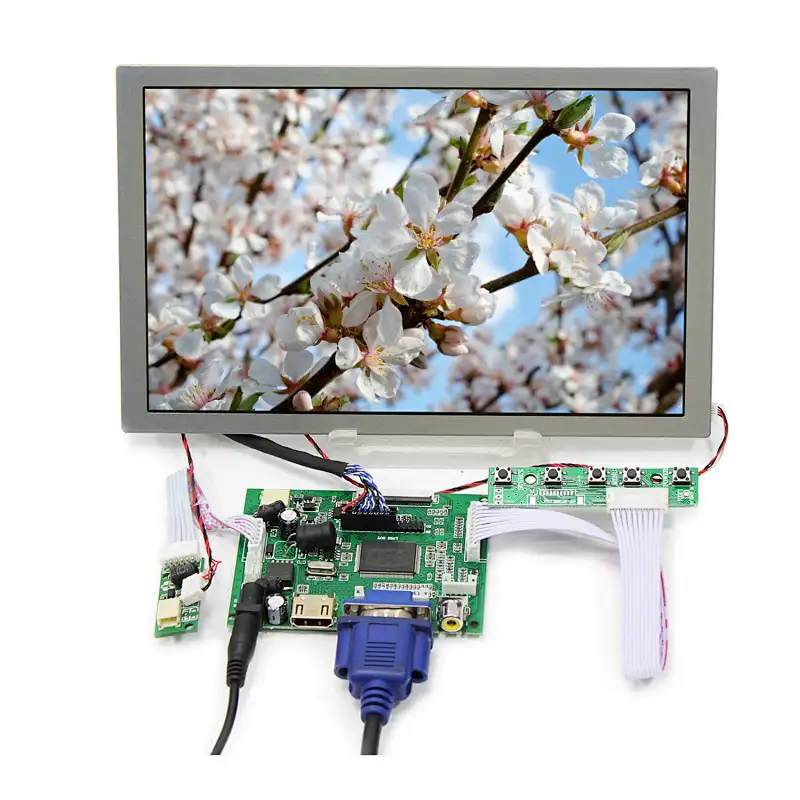

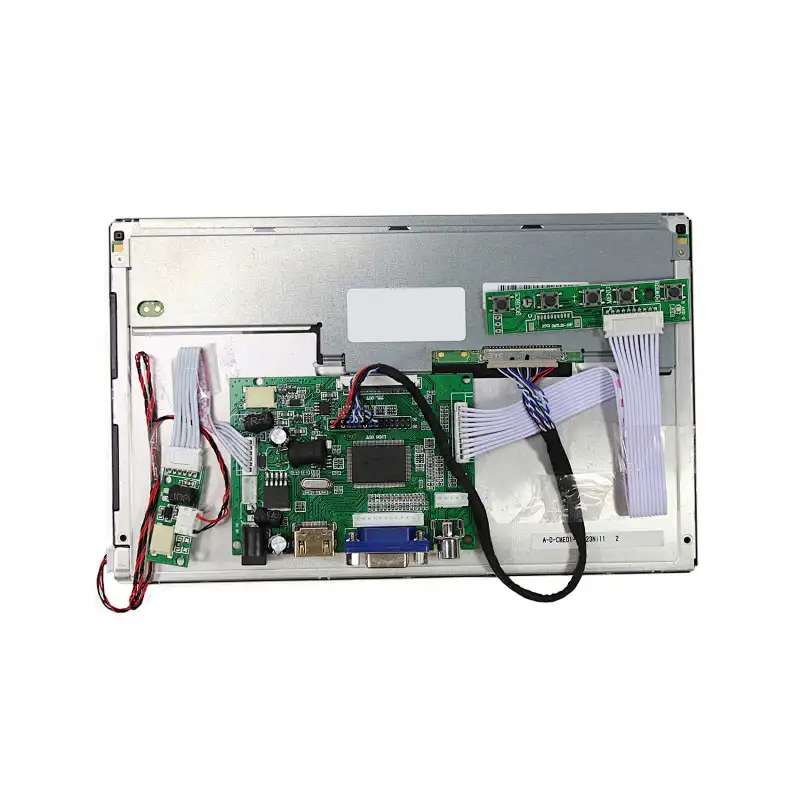

9"AA090ME01 800X480 LCD Screen:
Display Mode  IPS, Normally Black, Transmissive
Resolution 800RGB)×480
Outline Size 219× 136.2×10(H×V×D)
Display Area 196.8 × 118.08 (H×V)
Brightness 400 cd/m² (Typ.)
Contrast Ratio 900:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)

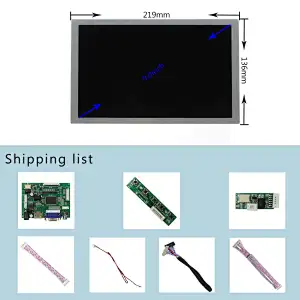

Packing list:
1×9"AA090ME01 800X480 LCD Screen
1× 20Pins LVDS Cable
1× Inverter Board
1× Backlight Cable
1× Keyboard With Cable
