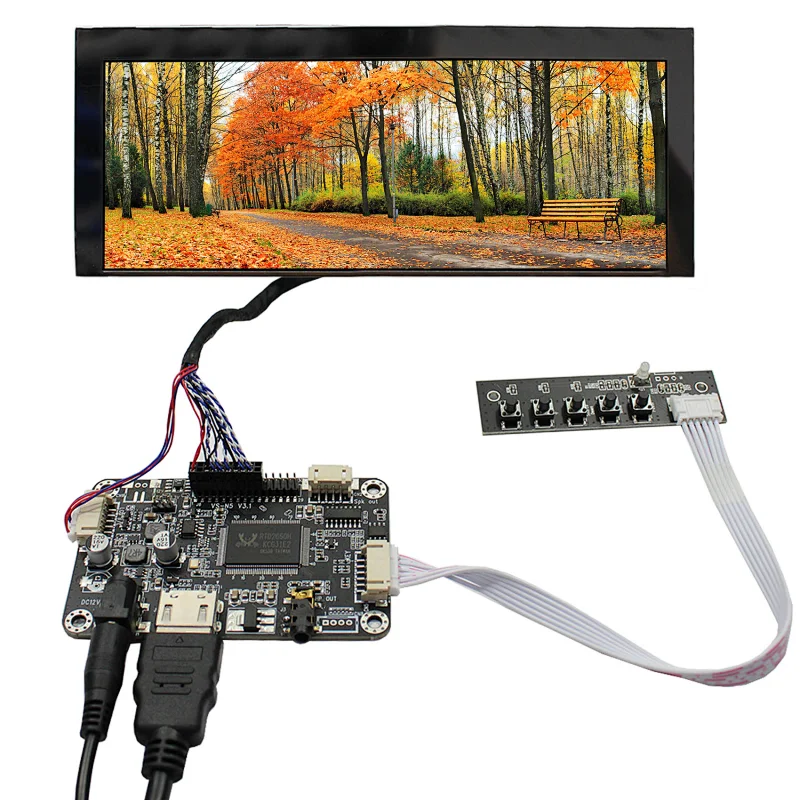

AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board
AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board

AA078AA01 LCD Screen 7.8inch 800x300 IPS Stretched Bar Screen with HDMI Audio Board

Model NO.
K002925-VS-N5V3.1H+AA078AA01 800x300
Minimum order quantity:
1
Quantity:
LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker earphone
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

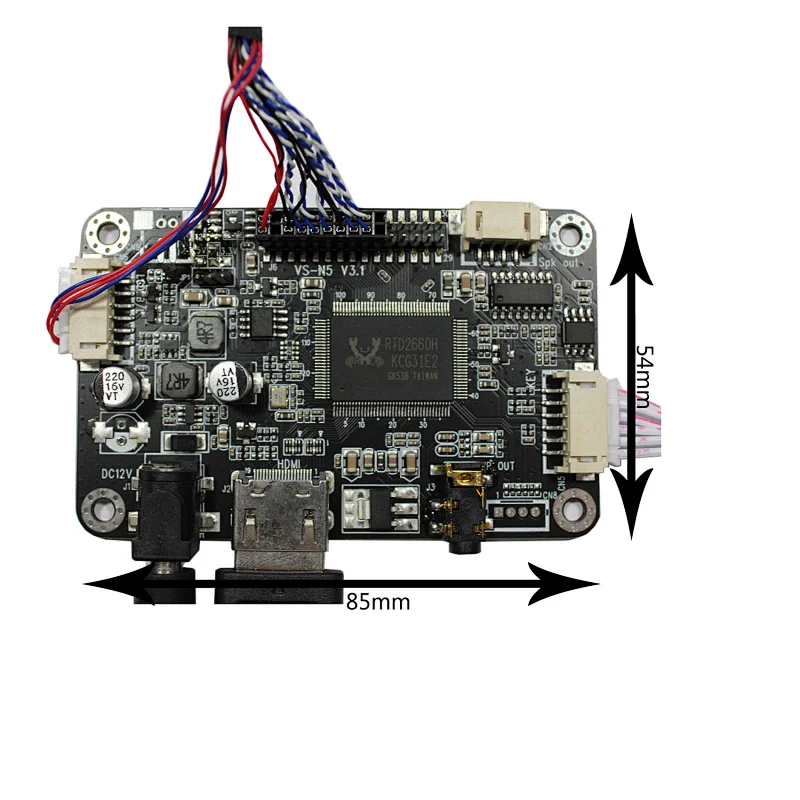

Board Size: 85mm x 54mm x 14mm

7.8"AA078AA01 800x300 LCD Screen:
Display Mode  IPS Pro, Normally Black, Transmissive
Resolution 800(RGB)×300  109PPI
Outline Size 207(H)×86(V) mm
Display Area 187.8(H)×72.3(V) mm
Brightness 500 (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10)
LVDS (1 ch, 6/8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  12.0V (Typ.)

Packing list:
1×HD-MI Audio LCD Controller Board VS-N5V3.1
1×7.8"AA078AA01 800x300 LCD Screen

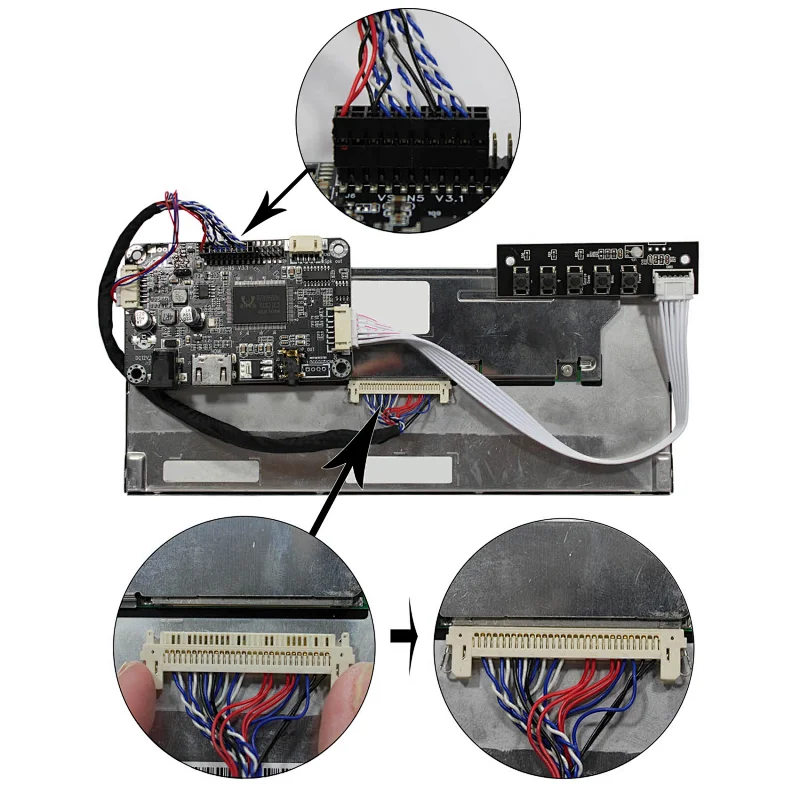

1× LVDS Cable
1× Keyboard With Cable
