For 21.5" M215HGE-L10 27" M270HW02 30P HDM I USB Android LCD Controller Board lcd controller board for diy led lcd controller board lcd controller board manufacturers

Model NO.
K002555-VS-TY2660H-V818 for M270HW02 M215HGE-L10 HM215WU1-500
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
LCD Controller Board:

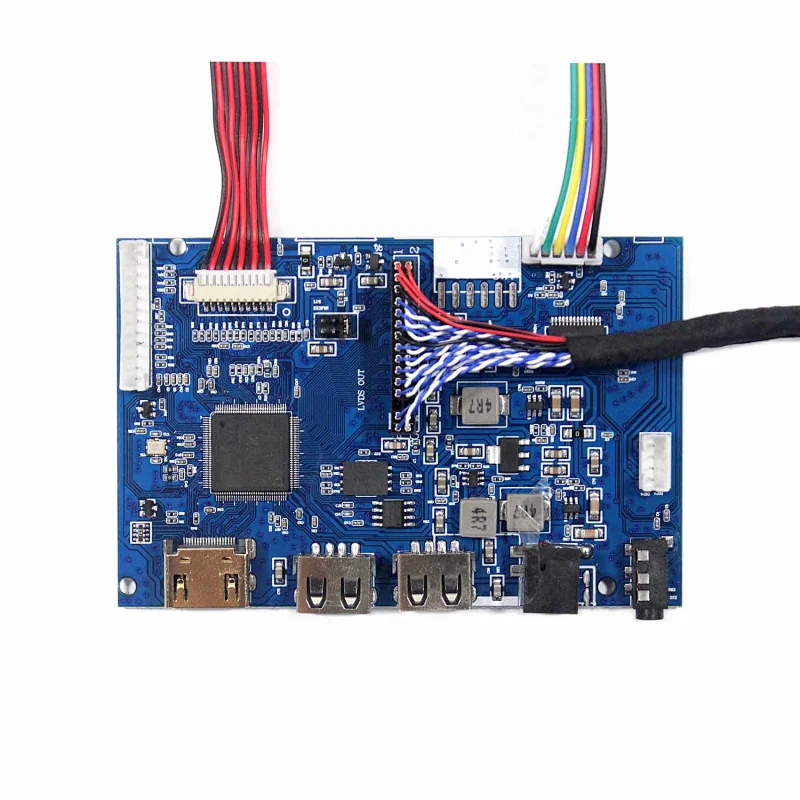

HDMI USB Android LCD Controller Board Work for LVDS 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI1.4 USB

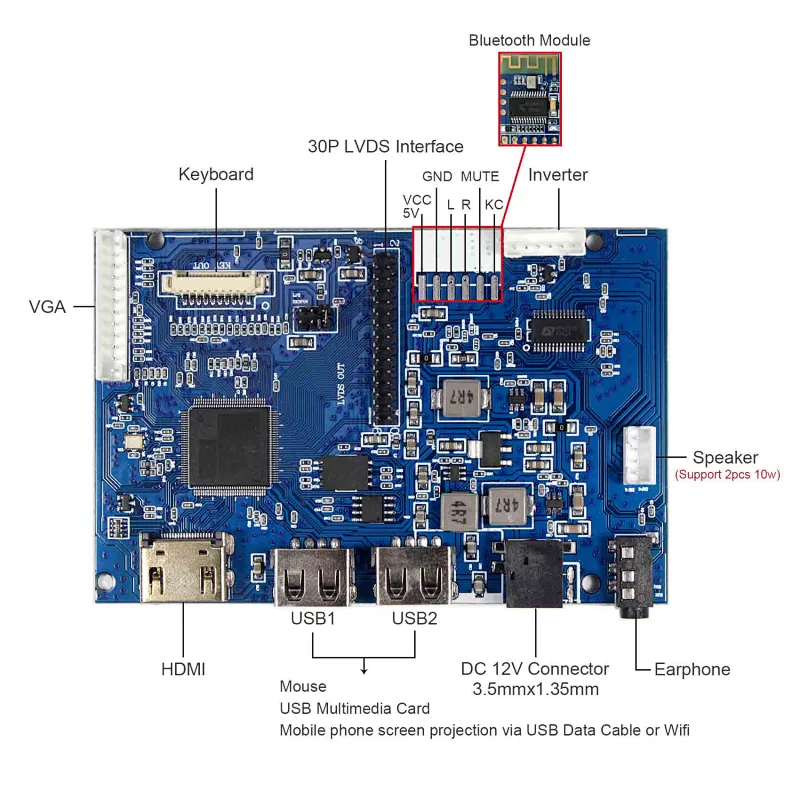

USB Port:
Support Video Play
Support WIFI Module
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)

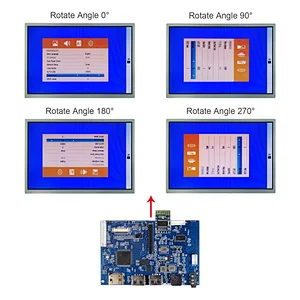

OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm

Compatible Work With:
21.5inch 1920x1080:
M215HGE-L10 HM215WU1-500
27inch 1920x1080:
M270HW02

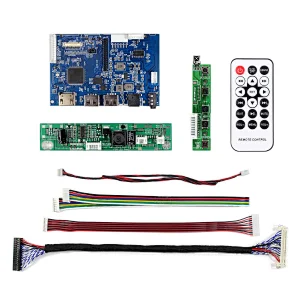

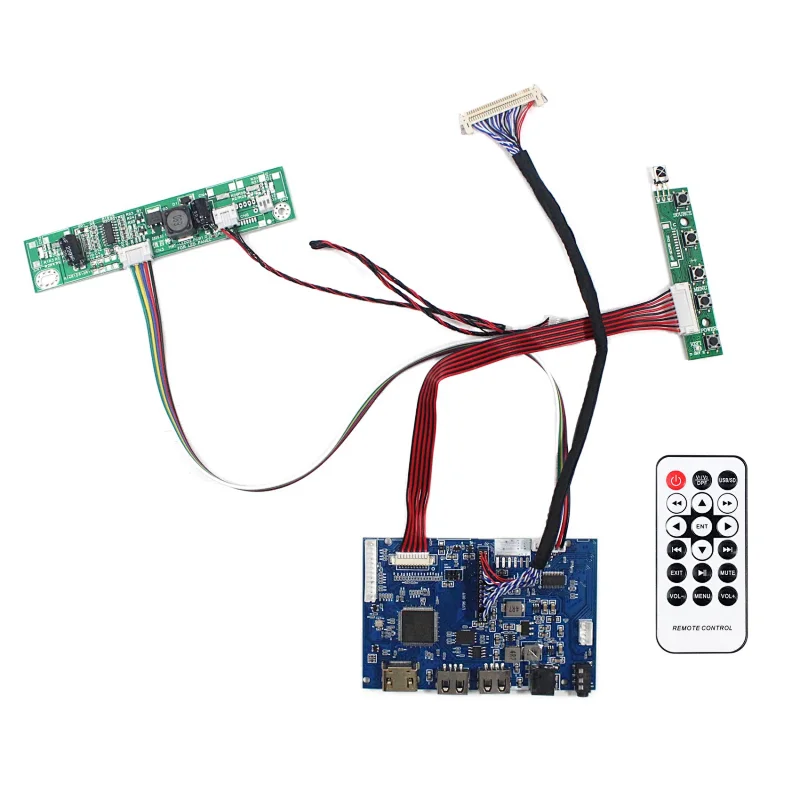

Packing list:
1× HDMI Audio LCD Controller Board VS-TY2660H-V818
1× Inverter Board
1× 30Pin LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
