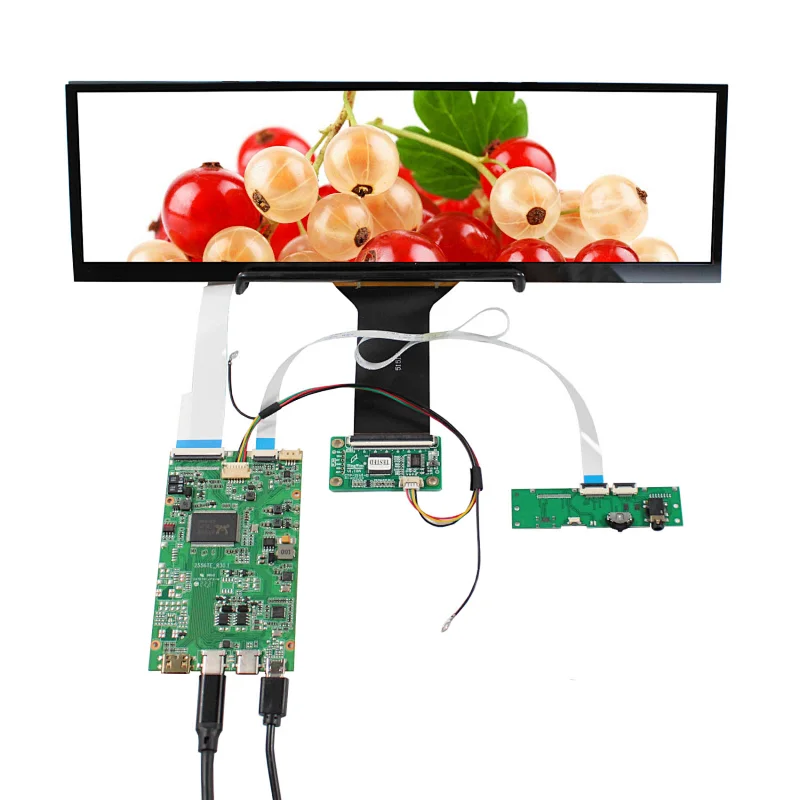

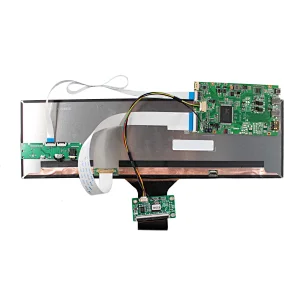

HD-MI Board Work for 30Pin 12.6" NV126B5M-N41 1920X515 EDP touch panel LCD Screen

Model NO.
K003067 VS-RT2556T2K-30pin +NV126B5M-N41 1920X515+TP
Delivery:
EXW or FOB Shenzhen
Minimum order quantity:
1 piece
Supply Ability:
1000 piece / Day
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

LCD Controller Board:
HD-MI Type C Control Board Work for 30Pin EDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini HD-MI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese

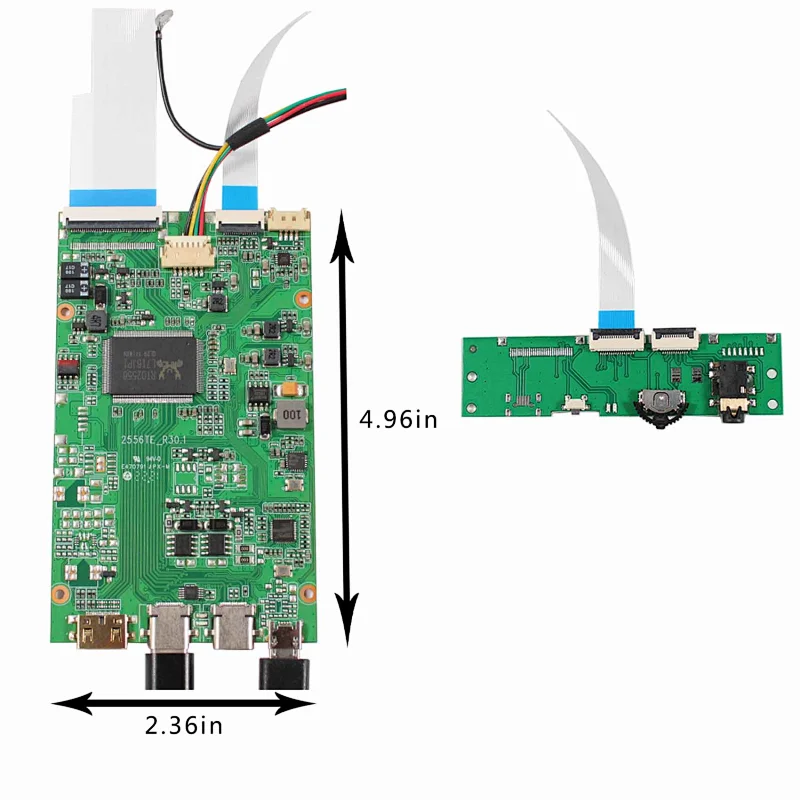

Board Size: 126mm x 60mm x 4mm


12.6"NV126B5M-N41 1920X515 LCD Screen:
DisplayNew ModeADS, Normally Black, Transmissive
Resolution 1920RGB)×515
Outline Size 315.61×94.02×5.3(H×V×D)
Display Area 309.31×82.97 (H×V)
Brightness250 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes), Connector, 30pins
Backlight  WLED
Input Voltage 3.3V (Typ.)

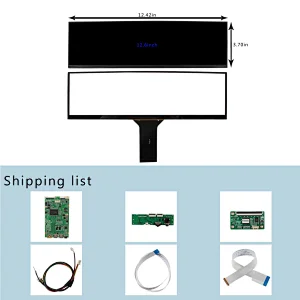

Packing list:
1× HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1× 12.6inch NV126B5M-N41 1920X515 IPS Capacitive LCD Screen
1× Signal Cable
1× USB Controller Card
1× Keyboard With Cable
