HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd
HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd

HDMI USB LCD Controller Board For 18.4inch 1920x1080 CLAA184FP01 LCD Screen lcd controller pcb board tft lcd board controller lcd board for 18.4inch lcd lcd controller board for 1920x1080 lcd

Model NO.
K002645-VS-TY2660H-V818 for CLAA184FP01 1920X1080 双8
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
LCD Controller Board:
HDMI USB Android LCD Controller Board Work for LVDS LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI1.4 USB
USB Port:
Support Video Play
Support WIFI Module
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

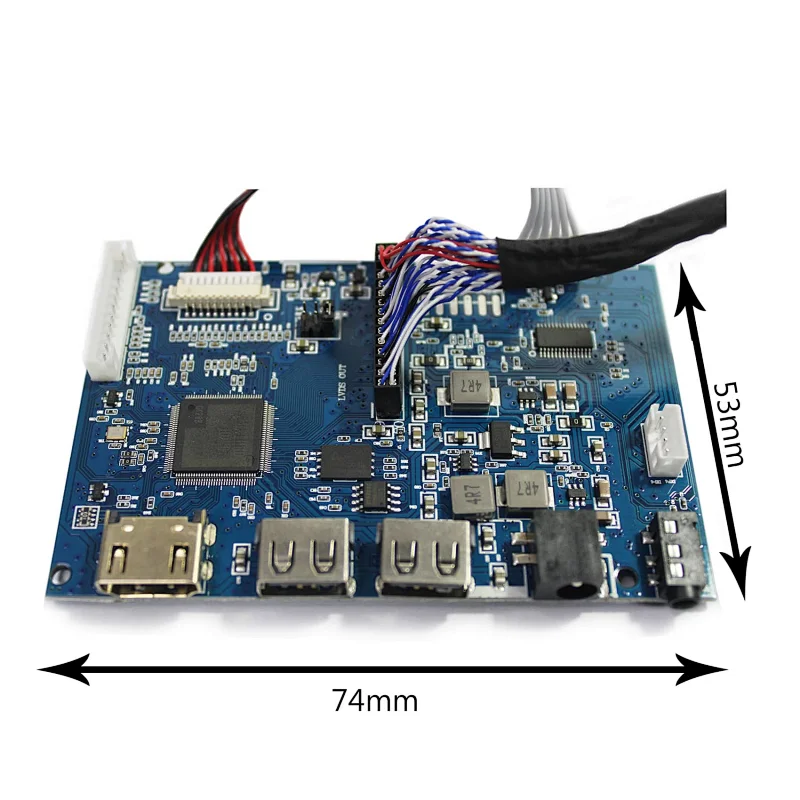

Board Size: 74mm x 53mm x 12mm

Compatible Work With:
18.4inch 1920x1080
CLAA184FP01

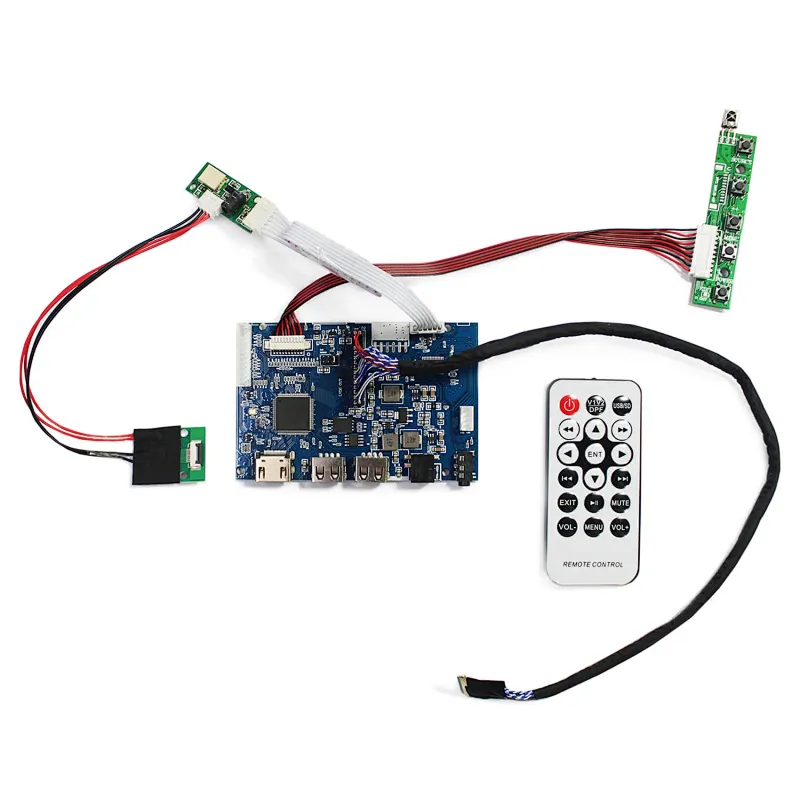

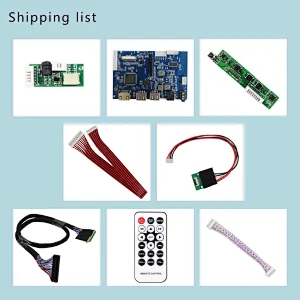

Packing list:
1× HDMI USB LCD Controller Board VS-TY2660-899
1× Inverter Board
1× Backlight Cable
1× Keyboard With Cable
1×Remote control
