HDMI 2USB Controller Board for 17" 19" M170EN01 M190E5 G190EG01 1280x1024 LCD lcd controller board hdmi hdmi lcd controller board hdmi controller for lcd 1280x1024 lcd controller 2usb

Model NO.: K002810-VS-TY2660H-V818+FIX30P for 17~19inch 1280*1024
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

LCD Controller Board:
HDMI USB Android LCD Controller Board Work for LVDS LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI 1.4 USB
USB Port:
Support Video Play
Support WIFI Module
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

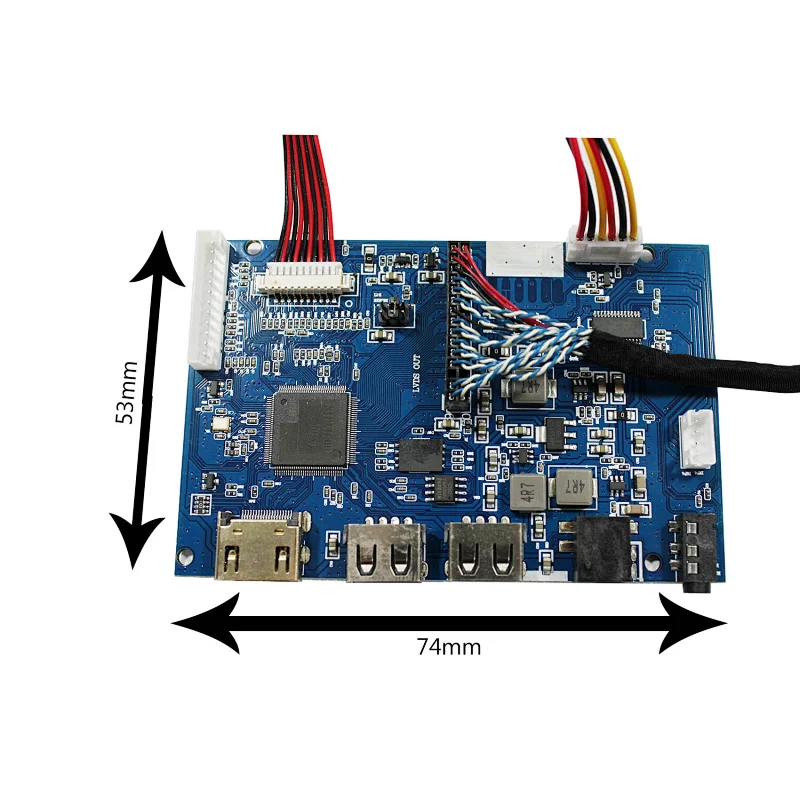

Board Size: 74mm x 53mm x 12mm

Compatible Work With:
17inch 1280x1024
M170EG01 M170EG02 M170EN01 M170EN04 HSD170ME13
M170EN05 M170EN06 LM170E03 LTM170EX
LTM170EU LTM170EH LTM170E5 LTM170E6 LTM170E8
19inch 1280x1024
LM190E02 LM190E03 LM190E08 M190E5 G190EG01
M190EG02 M190EG03 M190EN01 HSD190MEN4
HSD190ME11 HSD190ME12 HSD190ME13 LTM190EX
LTM190E1 LTM190E2 LTM190E3 LTM190E4

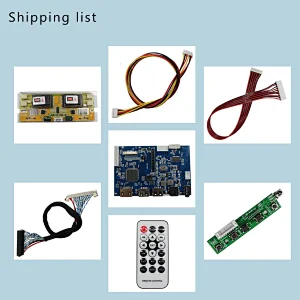

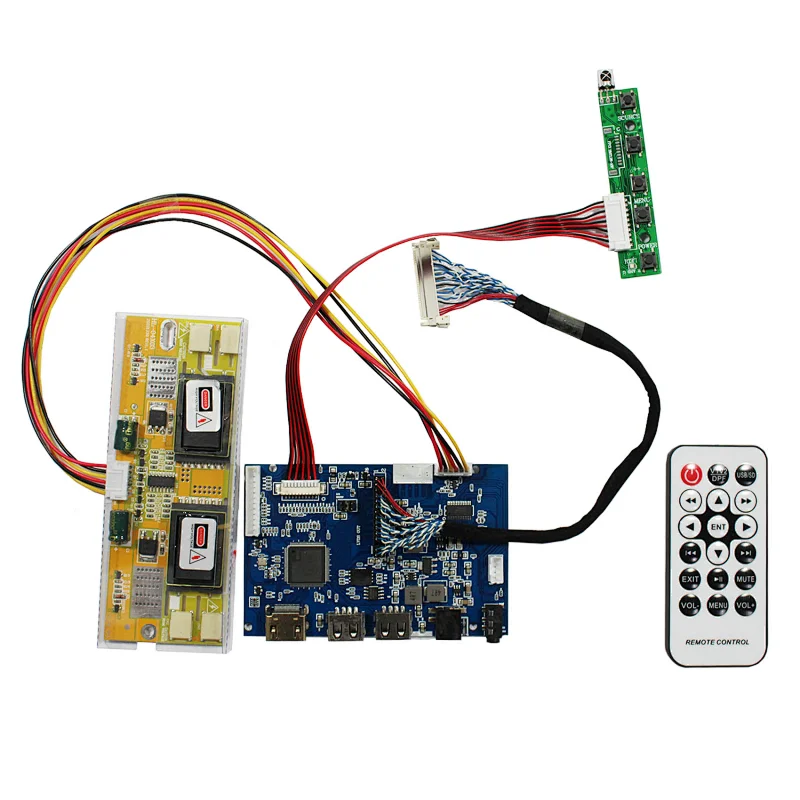

Packing list:
1× HDMI VGA USB LCD Controller Board VS-TY2660-818
1× 4CCFL Inverter Board
1×30Pin Signal Cable
1× Keyboard With Cable
1xRemote control
