HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board
HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board

HDMI DVI VGA LCD Controller Board with 15.6 inch G156HTN02 1920X1080 LCD Screen 15.6 inch G156HTN02 1920X1080 G156HTN02 1920X1080 G156HTN02 HDMI Controller Board

Model NO.
K003039-M.NT68676+G156HTN02.1 1920X1080
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:

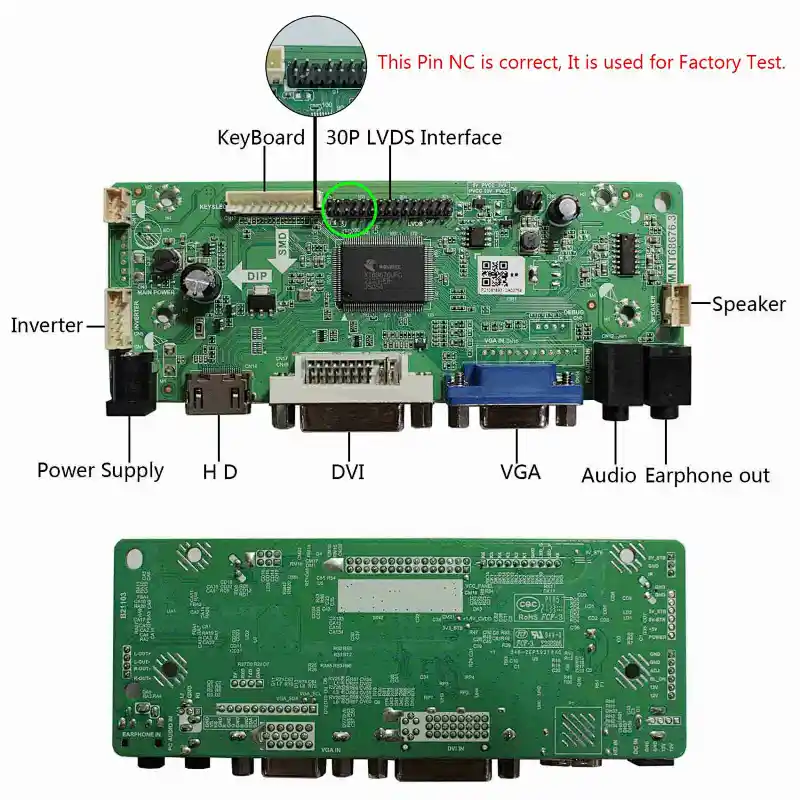

LCD Controller Board:
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

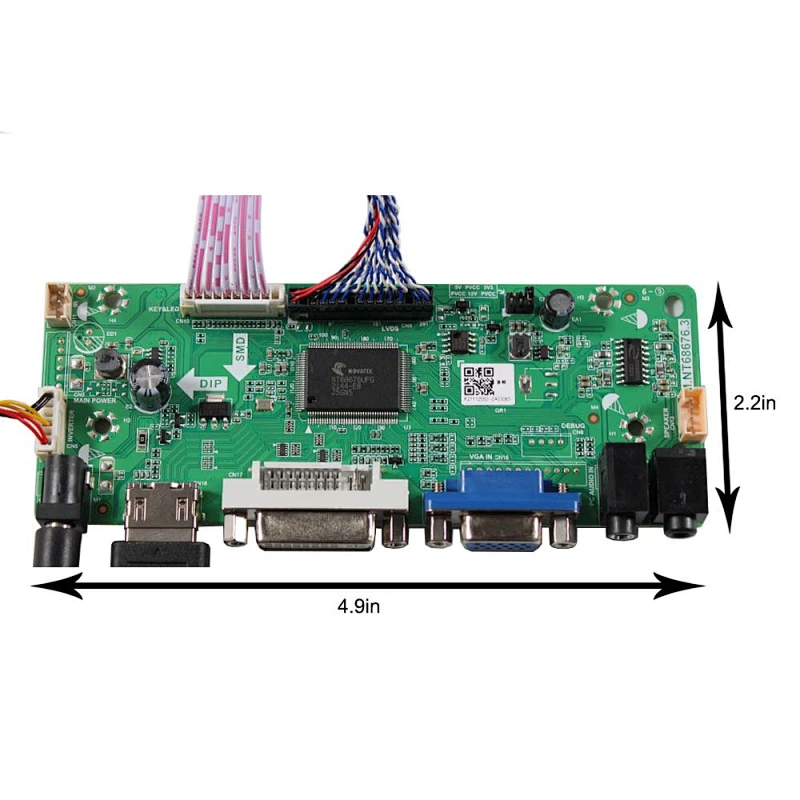

Board Size: 125mm x 58mm x 17mm

15.6"1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920(RGB)×1080, FHD, 141PPI
Outline Size 363.8(W)×215.9(H)×12.5(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness400 cd/m²(Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)

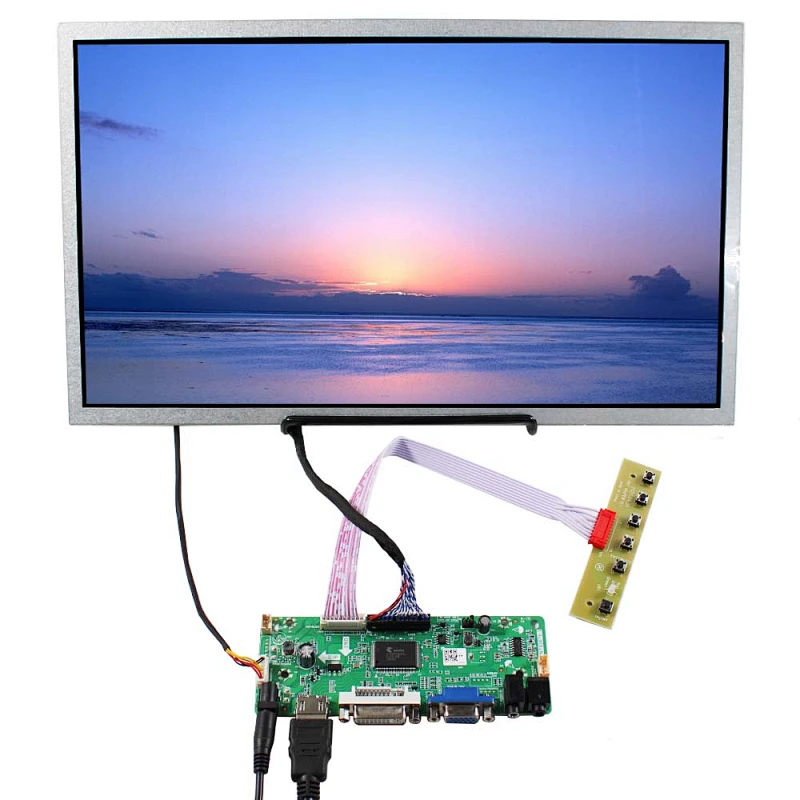

Packing list:
1× HD-MI VGA DVI LCD Controller Board M.NT68676
1×15.6" G156HTN02.1 1920X1080 LCD Screen
1× Backlight Cable
1× Keyboard With Cable
