HDMI Input For Wifi Android LCD Board Work For 12.1" LQ121K1LG52 1280X800 LCD Android lcd board HDMI Board for 12.1" lcd Wifi Android board

Model NO.
K002234-VS-TY2660H-V818 For LQ121K1LG52
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 piece
Country of Origin:
CHINA
Stock Time:
3-7 Days
Quantity:
LCD Controller Board:

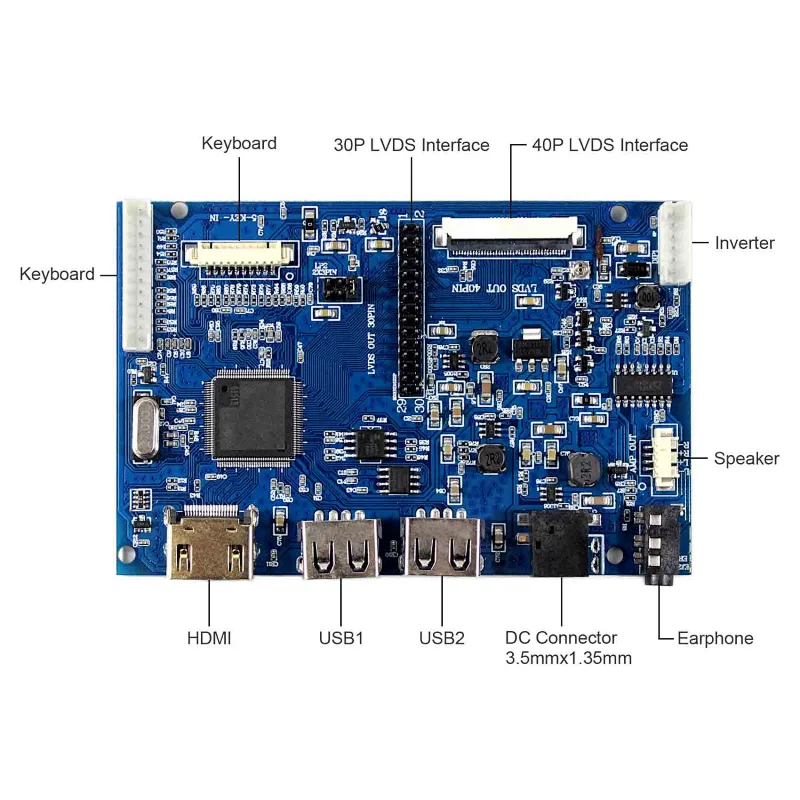

HDMIUSB Android LCDControllerBoard Work for LVDS 40Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI1.4 USB
USB Port:
Support Video Play
Support WIFI Module
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS Android Screen projection via USB Cable or wifi Module
Audio Input: HDMI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm

Compatible Work With:
12.1inch 1280x800
LQ121K1LG52

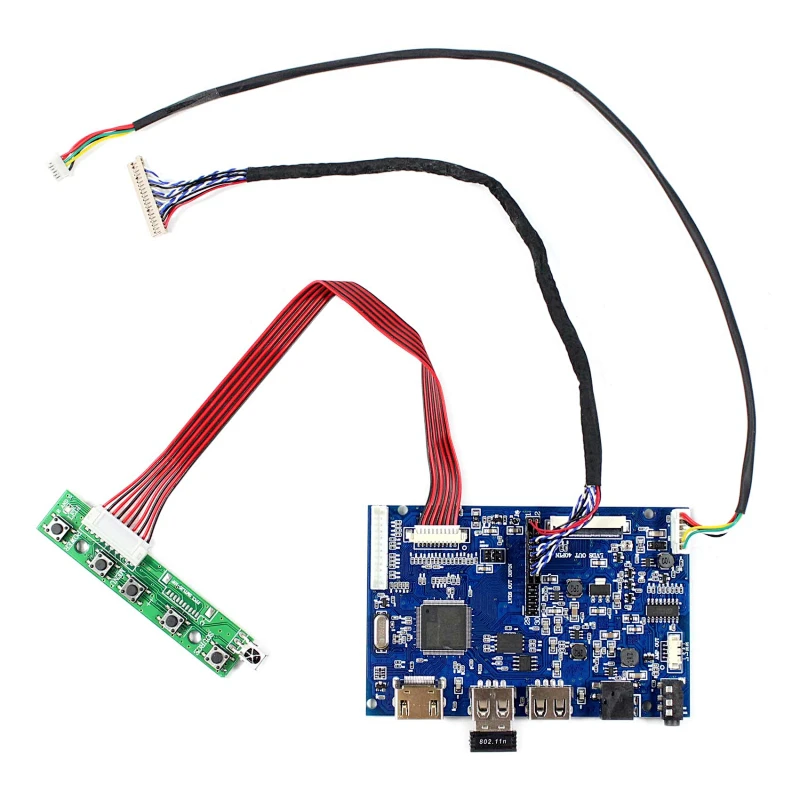

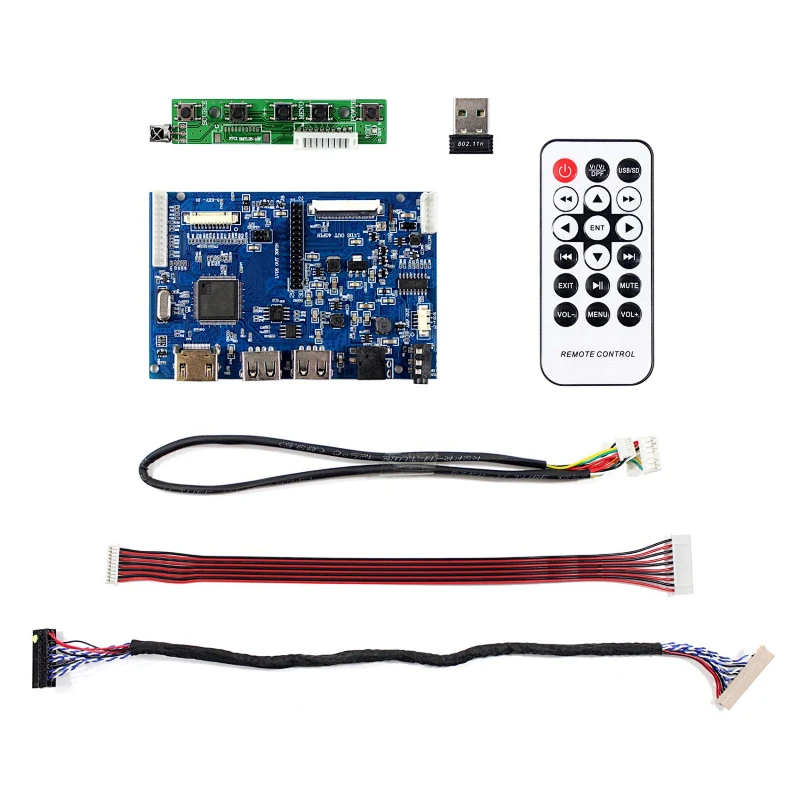

Packing list :
1× HDMIAudioLCD Controller Board VS-TY2660H-V818
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
