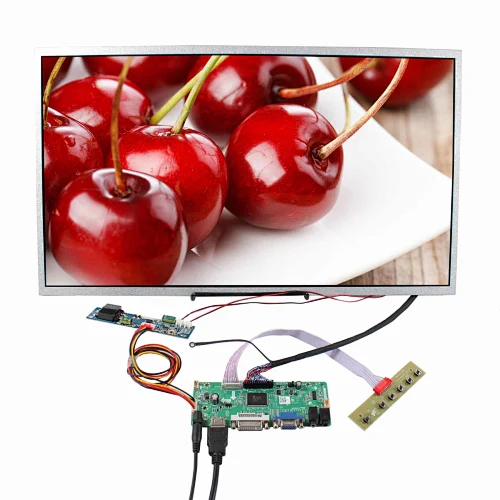

HDMI LCD Board Work for LVDS Interface LCD Screen M215HJJ-P02 1920x1080 tft lcd

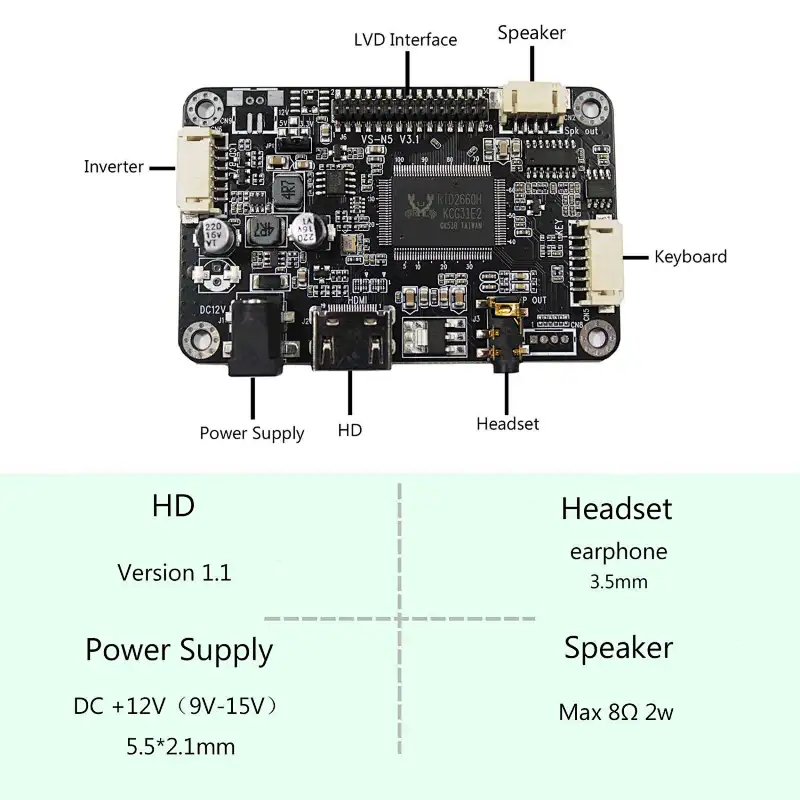

 LCD Controller Board:

HD-MI LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD-MI

Audio Input: HD-MI

Audio Output: Speaker earphone

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 85mm x 54mm x 14mm

21.5"M215HJJ-1000 1920x1080 LCD Screen:

Display Mode MVA, Normally Black, Transmissive

Resolution 1920(RGB)×1080, FHD, 102PPI

Outline Size 487.664(W)×279.286(H) ×1.29(D) mm

Display Area 476.064(W)×267.786(H) mm

Brightness 1000 cd/m²

Contrast Ratio 3000:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.)(CR≥20)

Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector

Backlight WLED

Input Voltage 5.0V (Typ.)

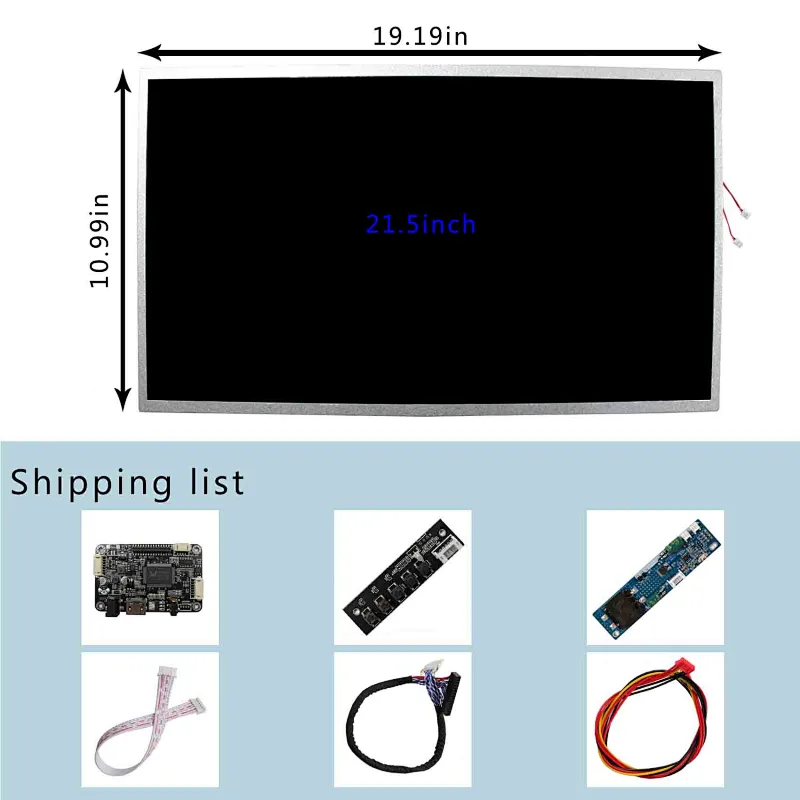

Packing list:

1× HDMI Audio LCD Controller Board VS-N5 V3

1× 21.5" M215HJJ-1000 1920x1080 LCD Screen

1× LVDS Cable

1× Inverter Board

1× Keyboard With Cable
