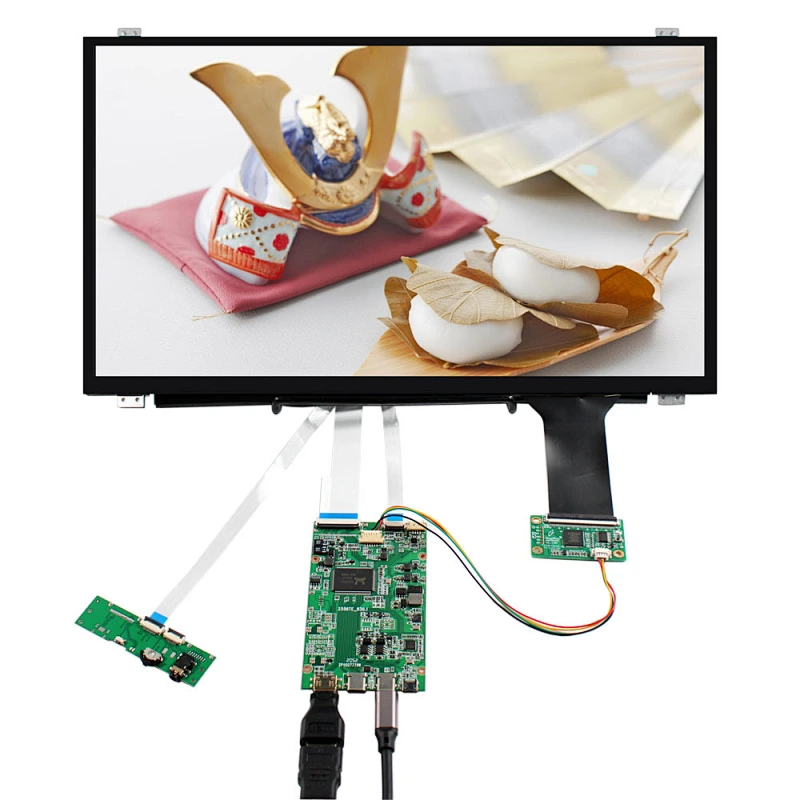

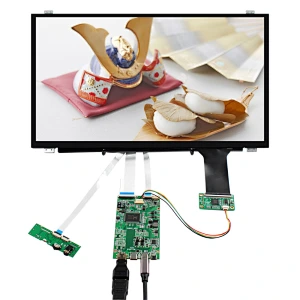

HDMI Type-C LCD Controller Board 15.6inch 1920X1080 Capacitive Touch IPS LCD Screen lcd touch screen capacitive 15.6inch 1920X1080 lcd display touch screen capacitive B156HAN01.1 15.6

HDMI Type-C LCD Controller Board 15.6inch 1920X1080 Capacitive Touch IPS LCD Screen lcd touch screen capacitive 15.6inch 1920X1080 lcd display touch screen capacitive B156HAN01.1 15.6" 1920x1080 lcd Type C lcd controller board

Model NO.: K003032-VS-RT2556T2K+15.6 B156HAN01.1 1920x1080
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1 piece
Country of Origin:: CHINA
Stock Time:: 3-7 Days

Quantity:

Product Description

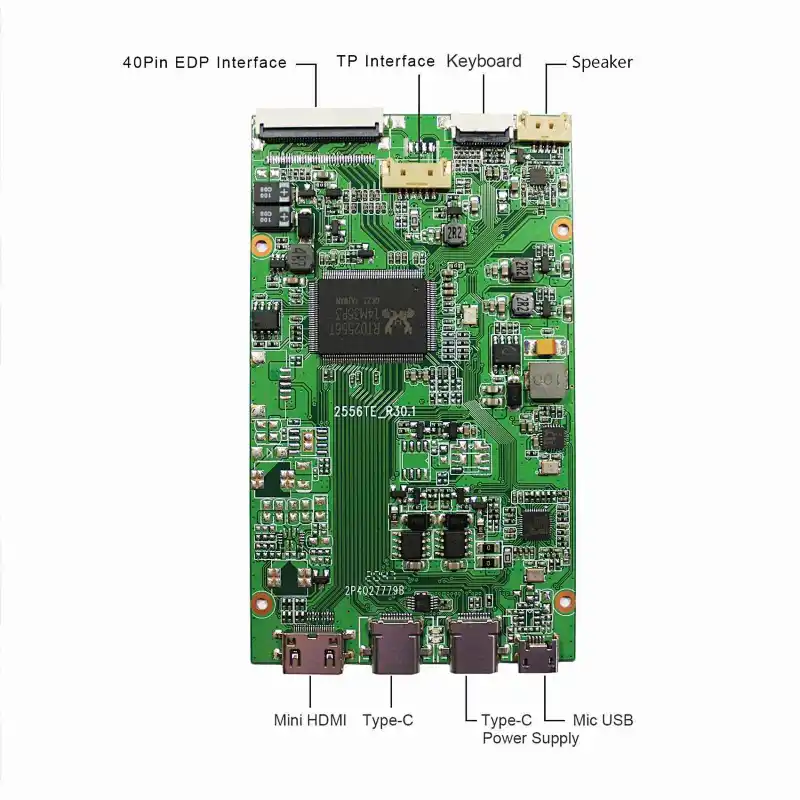

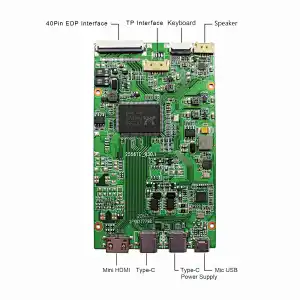

LCD Controller Board:
HD-MI Type C Control Board Work for eDP LCD Screen
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini HD-MI
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 126mm x 60mm x 4mm

15.6"1920X1080 eDP LCD Screen 1920X1080:
Display Mode N, ADS, Normally Black, Transmissive
Resolution 1920(RGB)×1080
Outline Size 359.5 × 223.8 × 3 (H×V×D)
Display Area 344.16 × 193.59 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes) , Connector , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

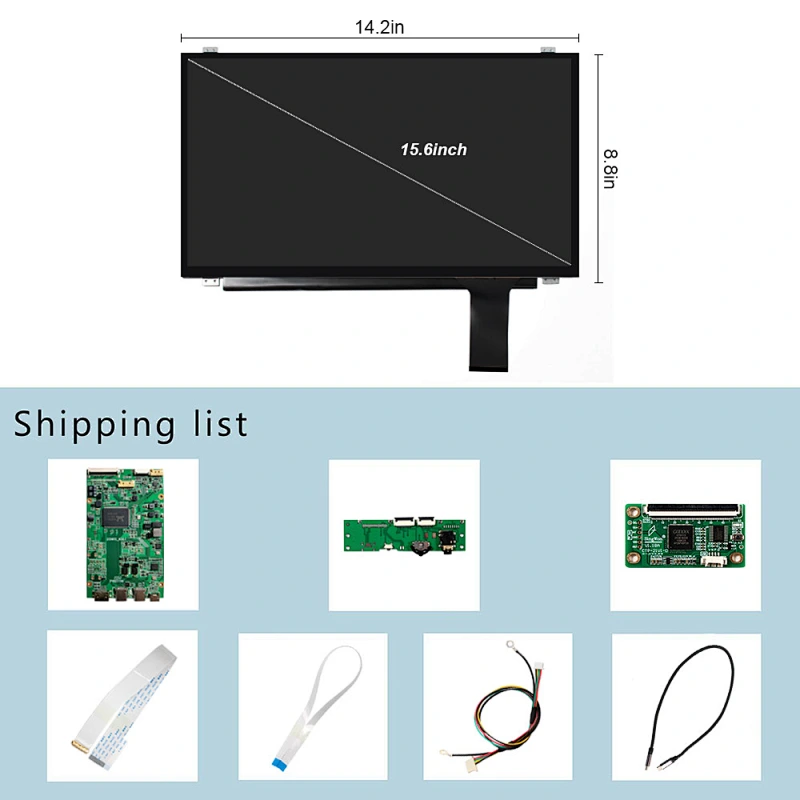

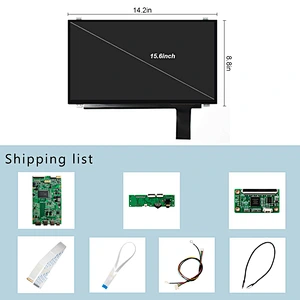

Packing list:
1× HD-MI TYPE-C LCD Controller Board VS-RTD2556HC-V2
1× 15.6inch eDP 1920X1080 IPS LCD With Capacitive Touch Panel
1x USB Cable
1× Signal Cable
1× Keyboard With Cable
